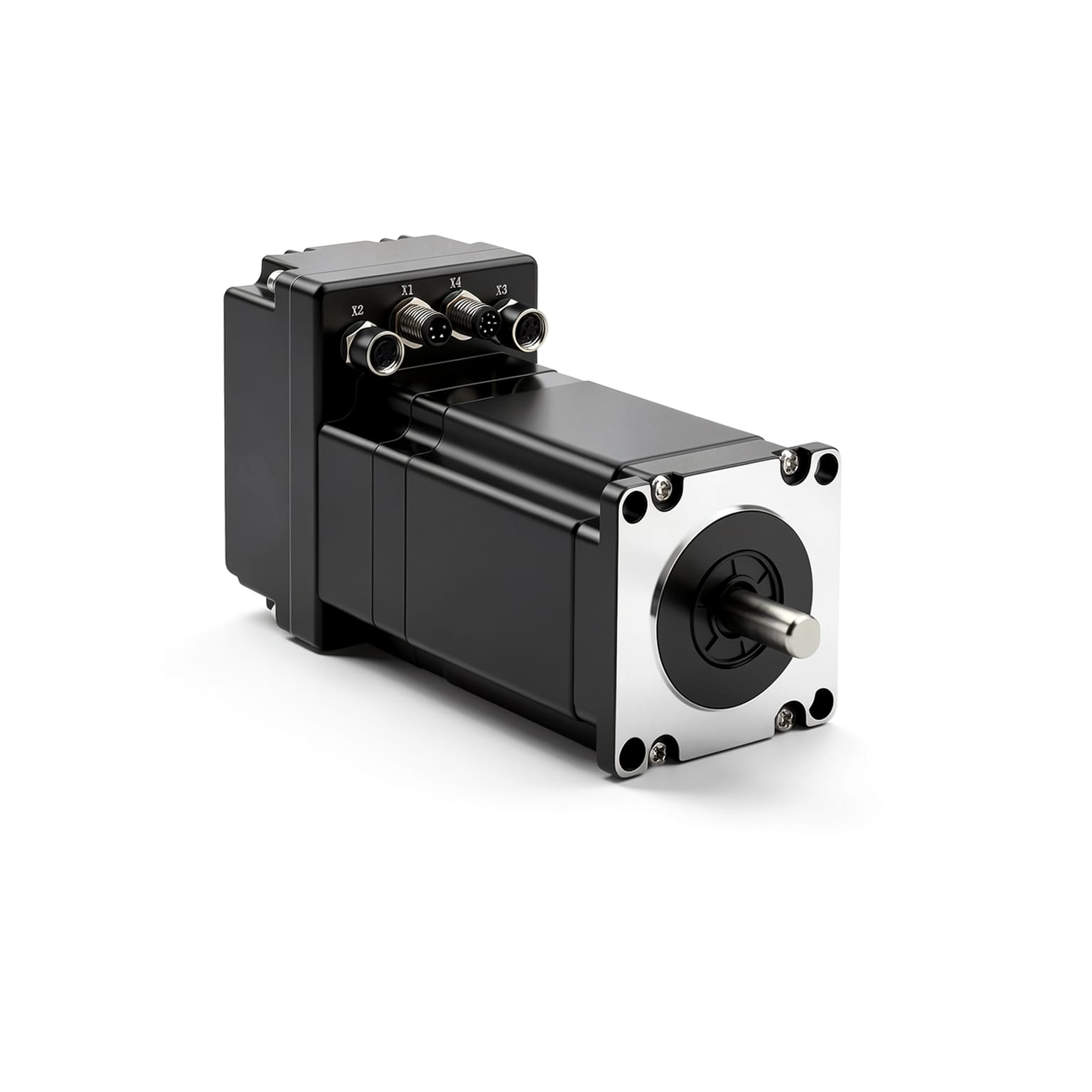

STMPW57-M (Wide-Temperature IP65 Protection with Brake) Integrated Stepper Servo Motor
Built-in Brake w/ Logic, IP65-rated, wide-temperature 57mm flange integrated stepper servo motor – delivers closed-loop servo control algorithms within a compact footprint, offering significantly improved positioning accuracy, low heat generation, and excellent speed stability. Ideal for a wide range of compact automation equipment.
Features
- IP65 protection
- Wide temperature range (-40°C to +75°C)
- CANopen/RS485
- Optional brake
Models & Specifications
| Specifications | STMPW5756B-485-M-0FSB | STMPW5756B-CANopen-M-0FSB | STMPW5776B-485-M-0FSB | STMPW5776B-CANopen-M-0FSB |
|---|---|---|---|---|
| Flange Size | 57mm | 57mm | 57mm | 57mm |
| Holding Torque | 1.2 N·m | 1.2 N·m | 1.8 N·m | 1.8 N·m |
| Brake | Built-in Brake w/ Logic | Built-in Brake w/ Logic | Built-in Brake w/ Logic | Built-in Brake w/ Logic |
| Encoder type | 17-bit single-turn absolute magnetic encoder | 17-bit single-turn absolute magnetic encoder | 17-bit single-turn absolute magnetic encoder | 17-bit single-turn absolute magnetic encoder |
| Rated Voltage | 48 VDC | 48 VDC | 48 VDC | 48 VDC |
| Voltage Range | 16-72VDC | 16-72VDC | 16-72VDC | 16-72VDC |
| Protection Level | IP65 | IP65 | IP65 | IP65 |
| Rated Current | 3.0 A | 3.0 A | 4.2 A | 4.2 A |

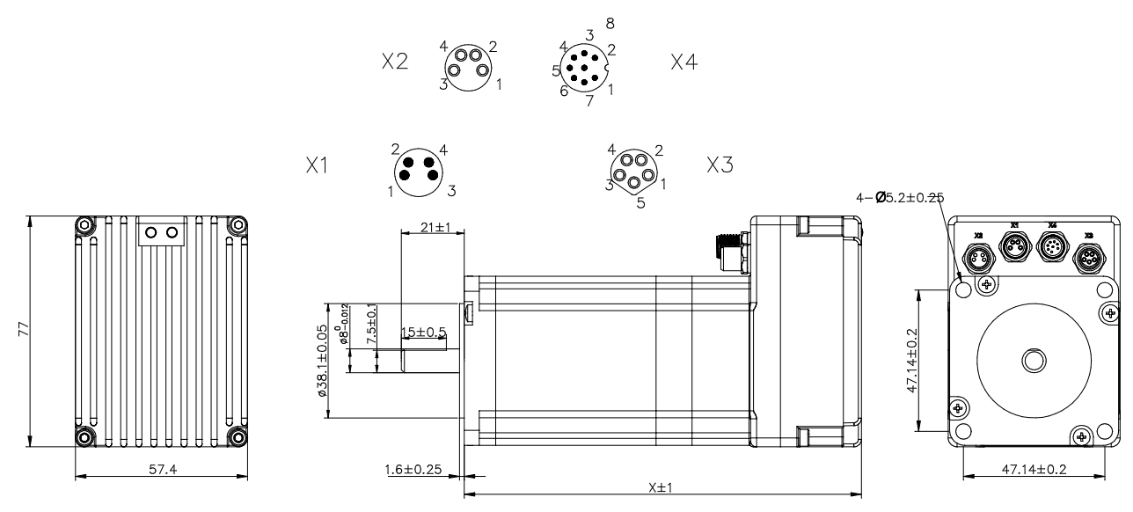

| Body Length | 111.5 mm | 111.5 mm | 131.5 mm | 131.5 mm |
| Weight | 1.18 kg | 1.18 kg | 1.54 kg | 1.54 kg |
* Scroll horizontally within the table area when the content is wide.
Specifications
| Shaft Diameter | Φ8 |
| Number Of Phases | 2 |
| Step Angle | 1.8° |
| Encoder | 17-bit multi-turn absolute magnetic encoder(multi-turn absolute counting with automatic storage upon power failure) |
| Control Modes | CiA402 Mode,Manufacturer Mode |
| External Control Interface | DI – Non-isolated NPN Input,DI – Non-isolated PNP Input,DI – Non-isolated Switch Input,DI – Isolated Opto Single-Ended Input,DI – Isolated Opto Differential Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output,AI – 0–10V Analog Input,AI – ±10V Analog Input |
| CiA402 Mode | PP, VM, PV, PT, HM, IP, CSP, CSV, CST |
| DI (Digital Input) | Quantity: 3; Bidirectional high-speed isolated inputs: supports NPN, PNP, and push-pull input (sensors); High level: 12–24V, low level: 0–0.5V; Maximum current: 8.5mA at 24V; Configurable functions: Can be used as a switch or as a pulse input channel. |
| DO (Digital Output) | None (customizable upon request) |
| AI (Analog Input) | None (customizable upon request) |
| Operating Temperature | -40°C to 75°C |
| Operating Altitude | <1000m |
| Fault Alarm | Overvoltage, undervoltage, overtemperature, locked rotor |
| Servo Function | Soft limit, gain switching, S-curve planning, vibration suppression, parameter identification, online upgrade |
Product Details
The STMPW57M series integrated waterproof wide-temperature stepper servo motor is a waterproof wide-temperature stepper servo product independently developed by NiMotion. Based on the excellent closed-loop control system and the highly integrated integrated design concept, this product integrates the stepper motor, brake, encoder, driver and digital IO into one, supporting CANopen and RS485 communication bus control. This series has an integrated motor protection level of IP65, which can work stably in the ambient temperature range of -40 ℃ to +75 ℃, and has the characteristics of compact structure, simple wiring and strong environmental adaptability.
Product Features

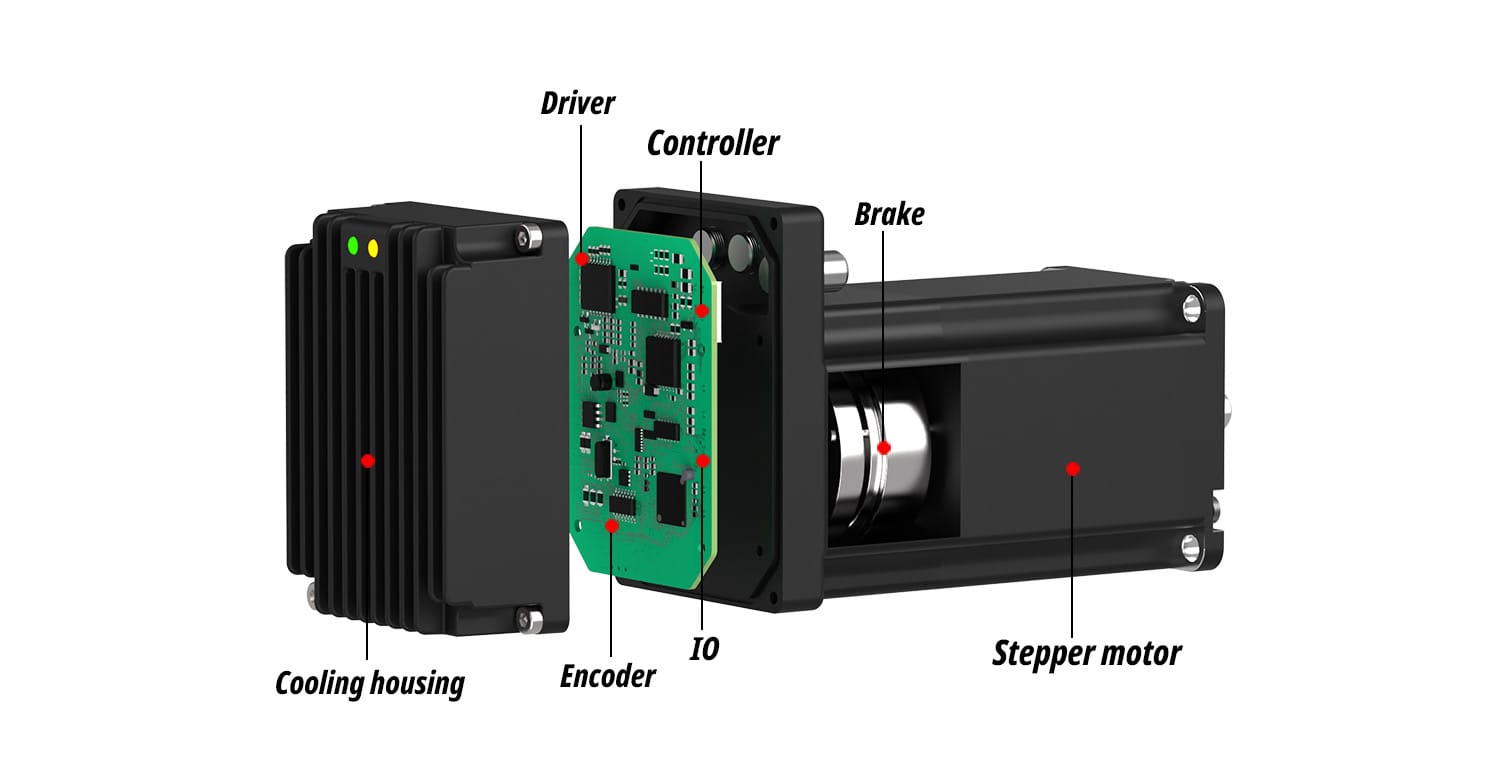

Highly integrated design
Integrates Stepper motors, brakes, encoders, drives and digital IO into a single compact unit, so no external drive is required. Compared with conventional separated solutions it saves considerable installation space, needs less wiring, and makes commissioning and maintenance easier.
High Precision Encoder Feedback
Built-in 17-bit encoder, multi-turn absolute counting, automatic storage after power failure provides real-time position and speed feedback for more accurate closed-loop control; multi-turn absolute counting and automatic position storage on power loss mean no re-homing is needed after power-up.
Multi-bus communication support
Supports CANopen and RS485 communication, allowing quick connection to mainstream PLCs, motion controllers and host systems, with flexible networking and easy expansion.
Standard CiA 402 Sport Mode
Supports CiA 402 standard motion modes (PP, PV, HM, CSP, CSV, etc.) as well as position mode, velocity mode and torque mode, ensuring compatibility with mainstream fieldbus motion-control architectures and making replacement and commissioning easier.
Wide Voltage Input
Wide input voltage range of 16-52 VDC, suitable for various power-supply environments and giving greater flexibility in system integration and retrofitting.
Complete diagnosis and protection
Comprehensive diagnostics and protection covering over-voltage, under-voltage, over-temperature, stall, overload, over-speed, over-travel and homing timeout, with current and historical alarm records for safer operation.
Application in Solar Photovoltaic Tracking Bracket Equipment
The STMPW57 series motor is an IP65-rated stepper motor that supports wide-temperature operation, specifically designed for outdoor or harsh industrial environments with extreme temperatures (-40°C to +75°C), high dust, high humidity, and strong chemical corrosion. Featuring a built-in driver, controller, and encoder, it offers a compact design that eliminates the need for external driver components while delivering high torque. It converts rotary motion into linear displacement of push rods or worktables.
