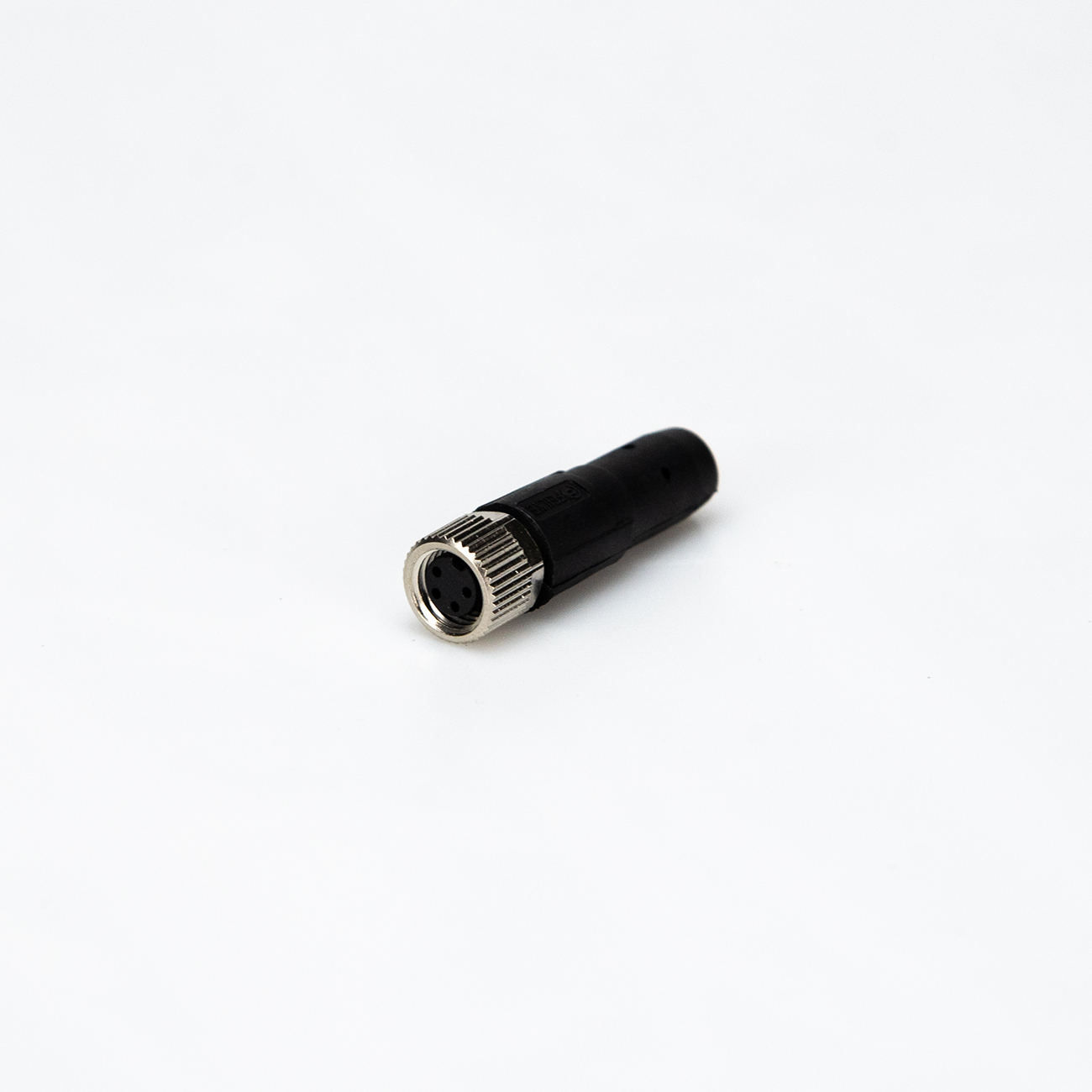

M8 Terminal Resistor

Models & Specifications

Specs as rows · Models as columns

Specifications	STRX001-120
Rated voltage	-V
Rated current	-A
Temperature Rating	85℃
Contact resistance	0.25W/120Ω±1%
Protection level	-
Insulation Resistance	-
Pin-type	Die cavity
Block	-
Standard	IEC 61076-2-104

* Scroll horizontally within the table area when the content is wide.
