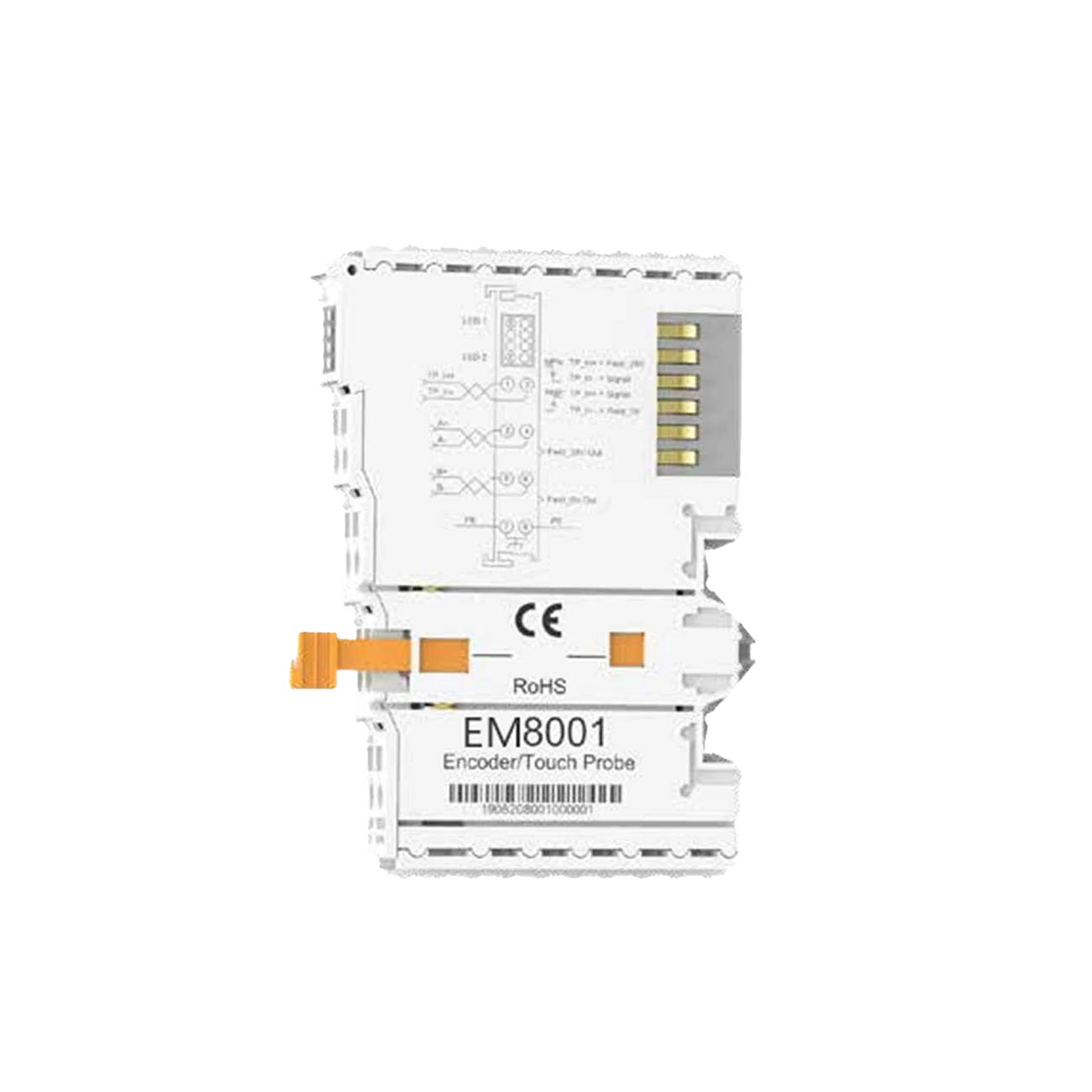

EM Series High-Speed Counter Module

1-channel high-speed counter module (5V), 1MHz, 32-bit, ±1 pulse accuracy, position latch.

Models & Specifications

Specs as rows · Models as columns

Specifications	EM8032	EM8022	EM8041	EM8011	EM8001
Type	High-Speed Counter	High-Speed Counter	High-Speed Counter	High-Speed Counter	High-Speed Counter
I/O Channels	2	2	1	1	1
Rated Voltage	24VDC	5VDC	5VDC	24VDC	5VDC
Input "0" Signal Voltage	-	-	-	-	-
Input "1" Signal Voltage	-	-	-	-	-
Input Filter Time	-	-	-	-	-
Isolation Voltage	500VDC	500VDC	500VDC	500VDC	500VDC
Dimensions	100×67×12mm	100×67×12mm	100×67×12mm	100×67×12mm	100×67×12mm
Resolution / Accuracy	±1 pulse%	±1 pulse%	±1 pulse%	±1 pulse%	±1 pulse%
Counter Function	Pulse input / pulse latch	Pulse input / pulse latch	Pulse input / pulse latch	Single-channel encoder input/position latch	Single-channel encoder input/position latch
System Power Input	-	-	-	-	-
System Power Output	-	-	-	-	-
Peripheral Power Input	-	-	-	-	-
Operating Temp	-25~60℃	-25~60℃	-25~60℃	-25~60℃	-25~60℃
Relative Humidity	95%	95%	95%	95%	95%

* Scroll horizontally within the table area when the content is wide.

Downloads

Name	Type	Size	Update Date	Download
NiMotion IO Module Selection Guide	Selection Guide	24.6MB	2026-10-14
