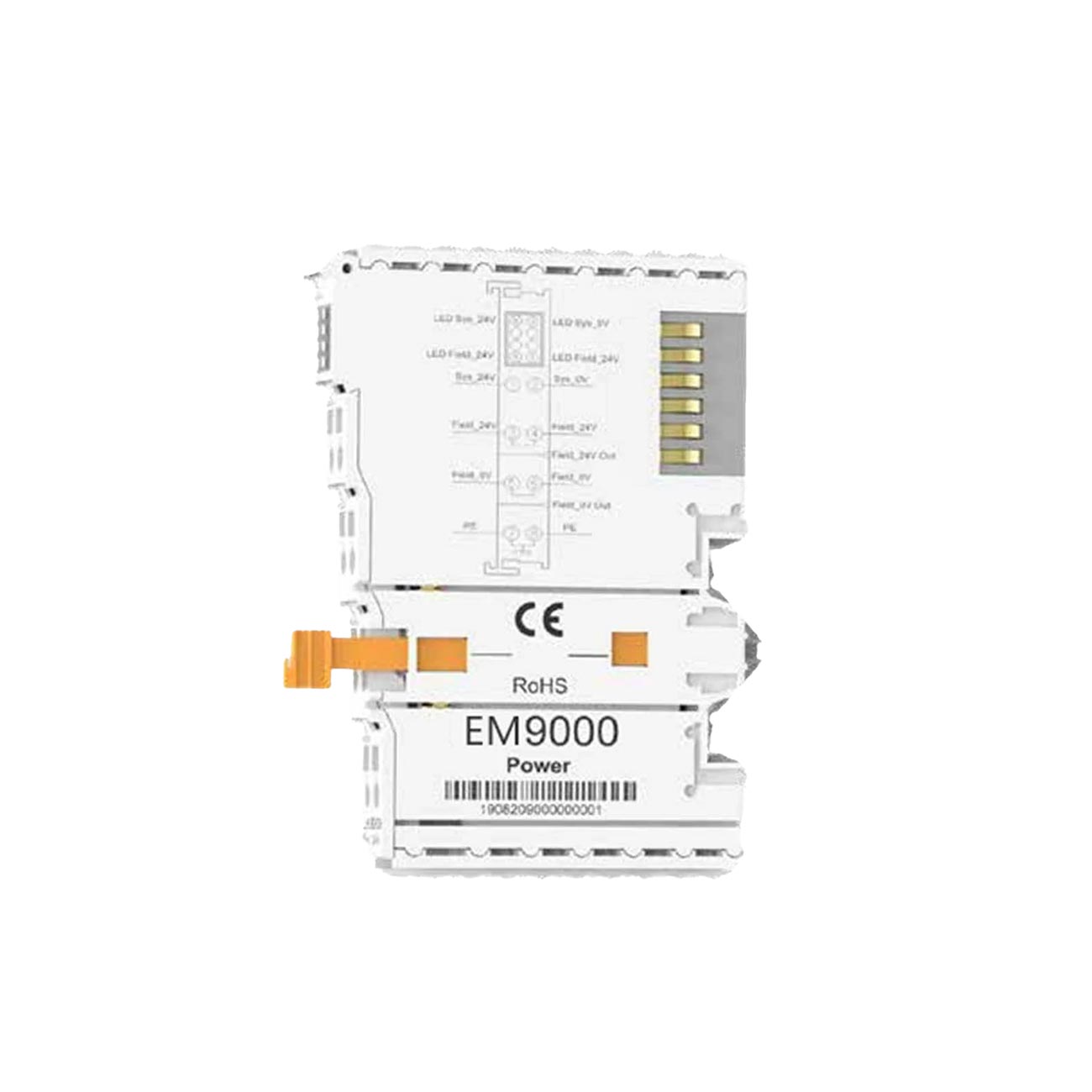

EM Series Power Expansion Module

Power extension module, 24VDC input, 5VDC/750mA system output, 24VDC peripheral output, 500V isolation.

Models & Specifications

Specs as rows · Models as columns

Specifications	EM9000
Type	Power Extension
I/O Channels	-
Rated Voltage	-
Input "0" Signal Voltage	-
Input "1" Signal Voltage	-
Input Filter Time	-
Isolation Voltage	500VDC
Dimensions	100×67×12mm
Resolution / Accuracy	-
Counter Function	-
System Power Input	24VDC(18~36V)VDC
System Power Output	5V DC/750mAVDC
Peripheral Power Input	24VDC(±20%)VDC
Operating Temp	-25~60℃
Relative Humidity	95%

* Scroll horizontally within the table area when the content is wide.
