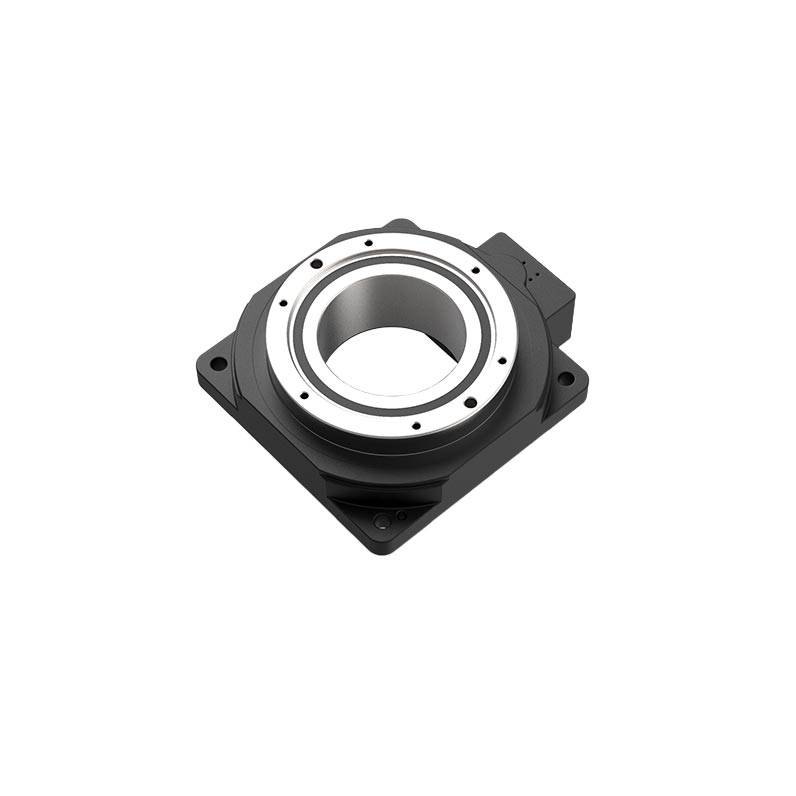

NMTS-85 series hollow rotary platform
NMTS-85 series hollow rotary platform (1 images/videos)
NMTS-85 series hollow rotary platform

NMTS-85 series hollow rotary platform

NMTS-85 series hollow rotary platform with cross roller bearing, rated torque up to 35 N·m, IP50, suitable for STM57/STM42 motors.

Models & Specifications

Specs as rows · Models as columns
SpecificationsNMTS-85-15K-40/42NMTS-85-10K-57/60NMTS-85-5K-57/60
Lubrication MethodLong-term effectLong-term effectLong-term effect
Protection LevelIP50IP50IP50
Service Life25000h25000h25000h
Bearing TypeCross roller bearingCross roller bearingCross roller bearing
Max Axial Force4800N4800N4800N
Max Radial Force4800N4800N4800N
Max Tilting Moment369N·m369N·m369N·m
Max Input Speed3000rpm3000rpm3000rpm
Allowable Output Speed200rpm200rpm200rpm
Moment Of Inertia0.0021kg·m²0.0021kg·m²0.0021kg·m²
Repeat Positioning Accuracy0.083arcmin0.083arcmin0.083arcmin
Rotary Accuracy0.5arcmin0.5arcmin0.5arcmin
Platform Parallelism0.015mm0.015mm0.015mm
Platform Radial Runout0.005mm0.005mm0.005mm
Platform Face Runout0.005mm0.005mm0.005mm
Allowable Inertia Torque15kg·m²40kg·m²70kg·m²
Rated Torque7.5N·m20N·m35N·m

* Scroll horizontally within the table area when the content is wide.

Downloads

NameTypeSizeUpdate DateDownload
NiMotion Rotary Table Selection Guide
Selection Guide5.0MB2026-08-25
