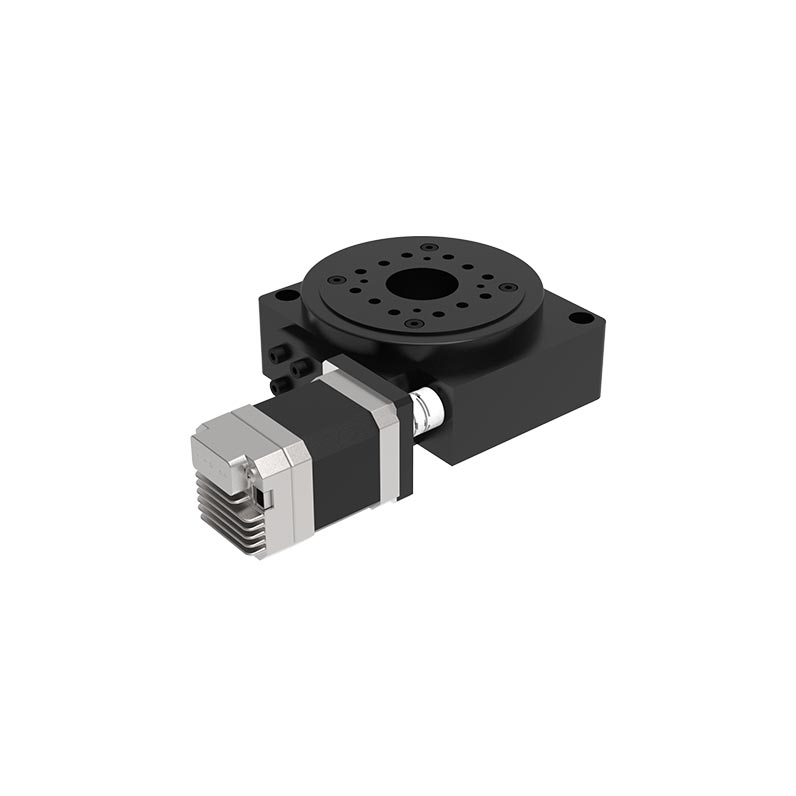

PTU100 series integratedprecision turntable
PTU100 series integratedprecision turntable (1 images/videos)
PTU100 series integratedprecision turntable

PTU100 series integratedprecision turntable

PTU100 series precision turntable with worm gear drive, diameter 100mm, repeatability ±0.05°.

Models & Specifications

Specs as rows · Models as columns
SpecificationsPTU100-50H-40/42
Moment Of Inertia3kg·m²
Rotary Accuracy0.01arcmin
Platform Radial Runout0.015mm

* Scroll horizontally within the table area when the content is wide.

Downloads

NameTypeSizeUpdate DateDownload
NiMotion Rotary Table Selection Guide
Selection Guide5.0MB2026-08-25
