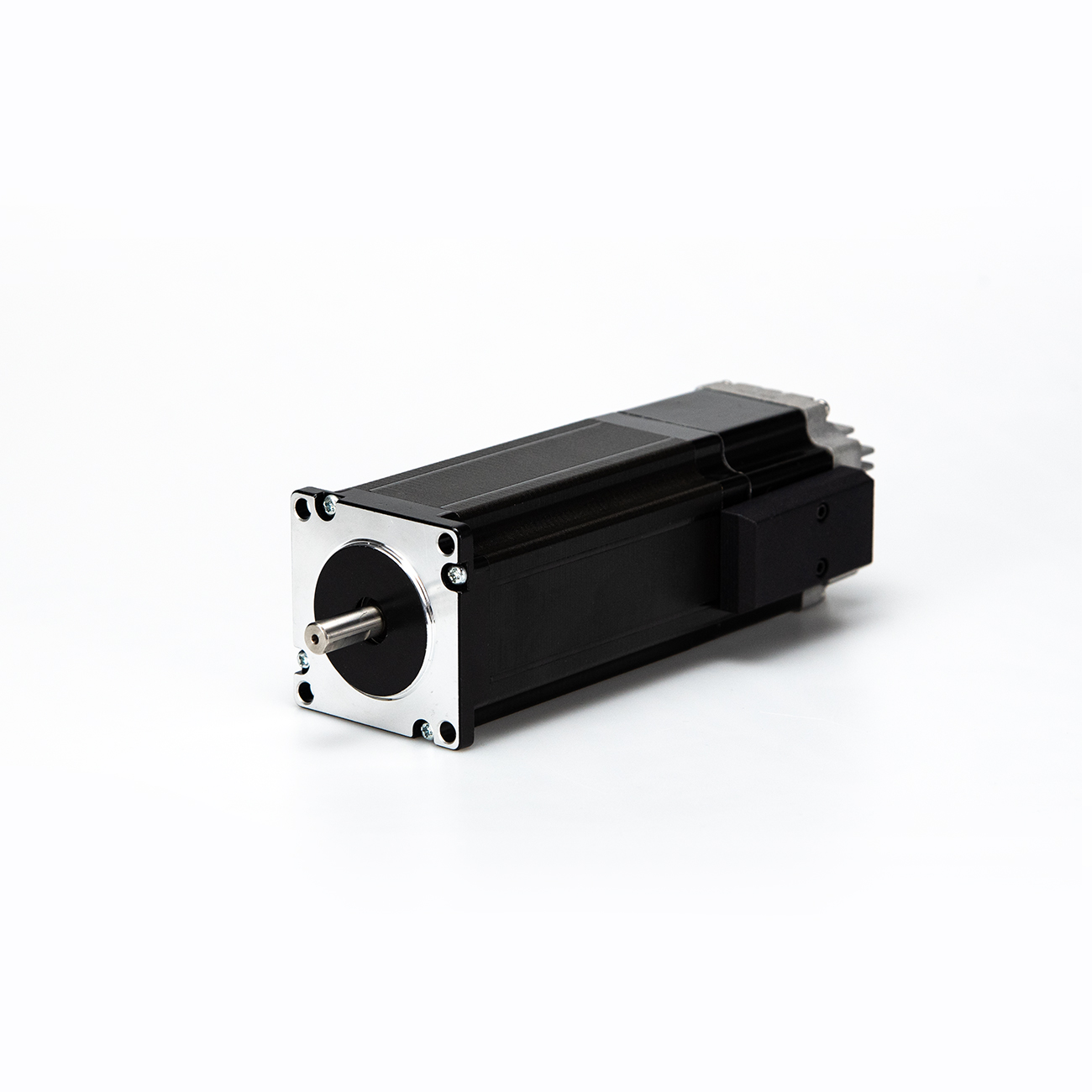

STM57H-B (Closed-Loop with Brake) Integrated Stepper Motor
57mm flange integrated stepper motor with built-in brake – seamlessly integrates stepper motor, driver, controller, and I/O interfaces into one unit. Reduces wiring, lowers failure points, ensures smooth motion, and is suitable for a variety of small to medium-sized automation applications.
Features
- Rated Voltage 48 VDC
- Integrated Brake
- CAN/RS485 or CANopen
Models & Specifications
| Specifications | STM5741A-CAN-H-0FSB | STM5741A-485-H-0FSB | STM5741A-CANopen-H-0FSB | STM5756A-CAN-H-0FSB | STM5756A-485-H-0FSB | STM5756A-CANopen-H-0FSB | STM5776A-CAN-H-0FSB | STM5776A-485-H-0FSB | STM5776A-CANopen-H-0FSB | STM57B5A-CAN-H-0FSB | STM57B5A-485-H-0FSB | STM57B5A-CANopen-H-0FSB |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flange Size | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm |
| Holding Torque | 0.55 N·m | 0.55 N·m | 0.55 N·m | 1.20 N·m | 1.20 N·m | 1.20 N·m | 1.80 N·m | 1.80 N·m | 1.80 N·m | 3.00 N·m | 3.00 N·m | 3.00 N·m |
| Brake | Integrated brake (External 24V supply) | Integrated brake (External 24V supply) | Integrated brake (External 24V supply) | Integrated brake (External 24V supply) | Integrated brake (External 24V supply) | Integrated brake (External 24V supply) | Integrated brake (External 24V supply) | Integrated brake (External 24V supply) | Integrated brake (External 24V supply) | Integrated brake (External 24V supply) | Integrated brake (External 24V supply) | Integrated brake (External 24V supply) |
| Open-Loop/Closed-Loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop |
| Encoder Type | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder |
| Rated Voltage | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC |
| Voltage Range | 12-52VDC | 12-52VDC | 12-52VDC | 12-52VDC | 12-52VDC | 12-52VDC | 12-52VDC | 12-52VDC | 12-52VDC | 12-52VDC | 12-52VDC | 12-52VDC |
| Rated Current | 2.8 A | 2.8 A | 2.8 A | 3.0 A | 3.0 A | 3.0 A | 3.0 A | 3.0 A | 3.0 A | 2.8 A | 2.8 A | 2.8 A |
| Inertia | - | - | - | - | - | - | - | - | - | - | - | - |
| Body Length | 96 mm | 96 mm | 96 mm | 110 mm | 110 mm | 110 mm | 131 mm | 131 mm | 131 mm | 167 mm | 167 mm | 167 mm |
| Weight | 0.87 kg | 0.87 kg | 0.87 kg | 1.11 kg | 1.11 kg | 1.11 kg | 1.43 kg | 1.43 kg | 1.43 kg | 2.11 kg | 2.11 kg | 2.11 kg |
* Scroll horizontally within the table area when the content is wide.
Specifications
| Shaft Diameter | Φ8 |
| Number Of Phases | 2 |
| Step Angle | 1.8° |
| Encoder Introduction | 14-bit absolute magnetic encoder for closed-loop models(Open-loop version without encoder) |
| Subdivision | 1,2,4,8,16 |
| Control Modes | CiA402 Mode,Manufacturer Mode,Position Mode,Velocity Mode,Homing Mode |
| External Control Interface | DI – Non-isolated NPN Input,DI – Non-isolated Switch Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output |
| CiA402 Mode | PP、VM、PV、HM、IP、CSP、CSV(via CANopen communication) |
| DI (Digital Input) | Quantity 3; Not isolated; High level: 3.3-36; Low: 0~1V Channel type: Level input |
| DO (Digital Output) | - |
| DX (Digital Input / Output) | Quantity: 2; No isolation; The parameters can be set to DI or DO. The maximum current of the DO load is 8mA, and it is 3 to 3.3V at high levels and 0 to 0.5V at low levels |
| AI (Analog Input) | - |
| Operating Temperature | 0°C to 40°C |
| Operating Altitude | <1000m |
| Fault Alarm | Overvoltage, undervoltage, overtemperature, locked rotor |
Torque-Speed Characteristics
STM5741(A)-H-0FSB
STM5756(A)-H-0FSB
STM5776(A)-H-0FSB
STM57B5(A)-H-0FSB
Product Details
The STM57H-B series (open-loop & closed-loop) integrated stepper motor is a step product independently developed by NiMotion. Based on the excellent closed-loop control system (closed-loop mode) and highly integrated design concept, this product integrates the stepper motor, encoder (closed-loop), driver, digital IO and brake, supports communication bus control, and has the characteristics of compact structure and simple wiring.
Product Features
Highly integrated design
All-in-one design deeply integrating the motor body with the drive and encoder, giving a compact body, simple wiring and easier machine integration.
High Precision Encoder Feedback
Built-in 14-bit high-resolution absolute encoder (closed-loop support) provides real-time position and speed feedback for more accurate closed-loop control, ensuring smoother operation and more accurate positioning.
Multi-bus communication support
Supports CANopen communication, allowing quick connection to mainstream PLCs, motion controllers and host systems, with flexible networking and easy expansion.
Standard CiA 402 Sport Mode
Supports CiA 402 standard motion modes (PP, PV, HM, CSP, CSV, etc.) as well as position mode and velocity mode, ensuring compatibility with mainstream fieldbus motion-control architectures and making replacement and commissioning easier.
Wide Voltage Input
Wide input voltage range of 12-52 VDC, suitable for various power-supply environments and giving greater flexibility in system integration and retrofitting.
Segment can be set
Micro-stepping setting of 1、2、4、8、16 steps selectable effectively reduces low-speed vibration and noise and improves positioning resolution and smoothness.

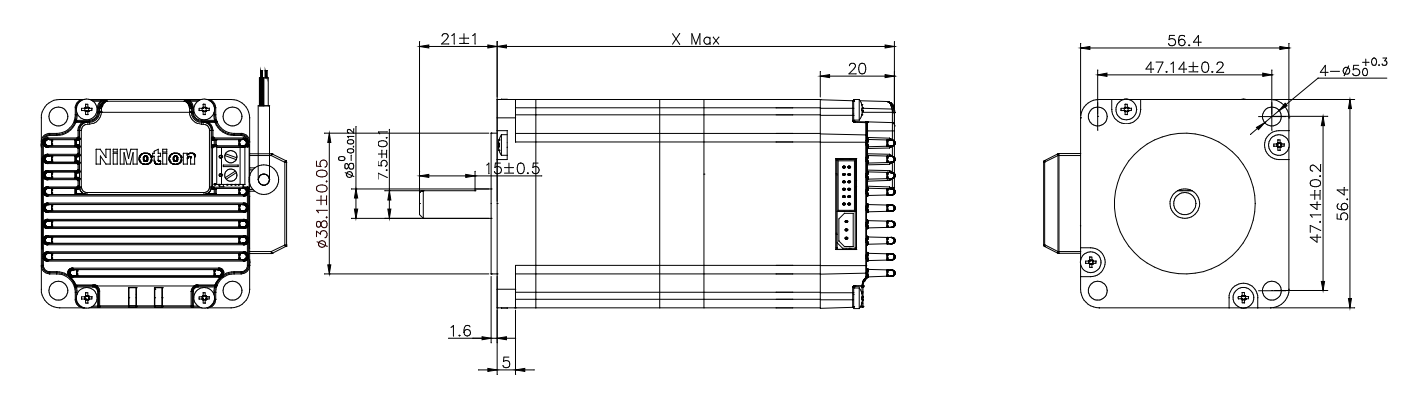

Overall Dimensions
Base width: 57mm, X represents the body length. Please click the "Download" section below to view detailed drawings.
Applied in sealing machine equipment
The integrated 57H-B series stepper motor is used in the conveyor belt mechanism of fully automatic sealing machines. Its compact integrated design saves the space required by the sealing machine, leaving more room for other components of the small automation equipment. The built-in brake and encoder enable full closed-loop control, making it suitable for small automation equipment that operates continuously over long periods.
Downloads
Companion Products
USB to CAN converter with isolation, IP65 protection, and secondary development SDK support.
USB to RS485 converter with active termination, isolation, IP65 protection, and secondary development SDK support.
Communication cable for NiMotion integrated motors.
FAQ
With an incremental encoder driver, the actual position value is not retained after power‑off; a homing routine is required on each startup. A single‑turn absolute encoder retains the position without a battery (but if the shaft rotates more than half a turn after power‑off, the position is lost). A multi‑turn absolute encoder retains the position without a battery (but if the shaft rotates more than 2048 turns after power‑off, the position is lost).
