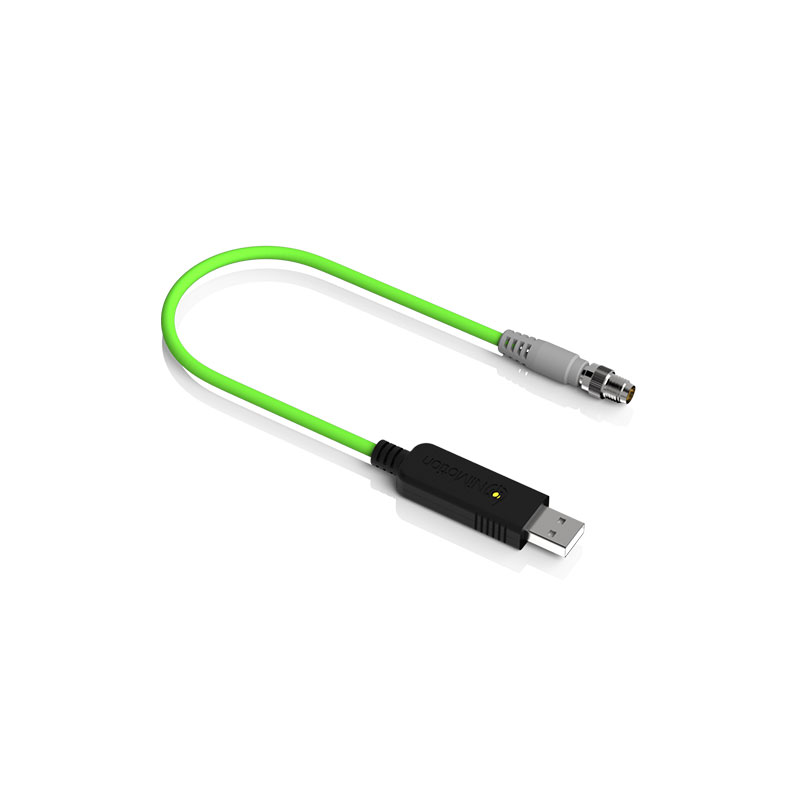

SCM-USBCANI-L

USB to CAN converter with isolation, IP65 protection, and secondary development SDK support.

Models & Specifications

Specs as rows · Models as columns

Specifications	SCM-USBCANI-L (Loose wires)	SCM-USBCANI-L (Loose wires)

* Scroll horizontally within the table area when the content is wide.

Specifications

Appearance Dimensions	67.7×17.9×9.7mm
Voltage Range	5VDC ± 0.25V
CAN Channels
Ethernet RJ45 Ports
USB Interface	Speed: Full-speed 12Mbps Compliance: Conforms to USB2.0 full-speed specification, compatible with USB1.1 Data frame interval: ≥1ms
Galvanic Isolation	Isolated Type
Rx Capability	≥4000 frames/s
Tx Capability	≥4000 frames/s
Industrial Grade
TCP Server Mode
TCP Client Mode
UDP Mode
Max TCP Connections
Max UDP Connections
CAN Protocol Standard	Supports CAN2.0A and CAN2.0B, compliant with ISO/DIS 11898 specification.
Per-channel Baud Rate	40kbps~1Mbps
120 Ohm Terminator	Built-in 120Ω
Operating Temp	0℃~45℃
