STM57H (Closed-Loop) Integrated High-Voltage Stepper Motor
57mm flange integrated stepper motor – seamlessly combines stepper motor, driver, controller, and I/O interfaces into a single unit. Reduces wiring, lowers failure points, ensures stable motion, and is suitable for a wide range of small to medium automation equipment.
Features
- Wide voltage range 12–52V
- Open-loop and closed-loop versions
- CAN/RS485 or CANopen
Models & Specifications
| Specifications | STM5741A-CAN-H-0FS | STM5741A-485-H-0FS | STM5741A-CANopen-H-0FS | STM5756A-CAN-H-0FS | STM5756A-485-H-0FS | STM5756A-CANopen-H-0FS | STM5776A-CAN-H-0FS | STM5776A-485-H-0FS | STM5776A-CANopen-H-0FS | STM57B5A-CAN-H-0FS | STM57B5A-485-H-0FS | STM57B5A-CANopen-H-0FS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flange Size | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm |
| Holding Torque | 0.55 N·m | 0.55 N·m | 0.55 N·m | 1.26 N·m | 1.26 N·m | 1.26 N·m | 1.80 N·m | 1.80 N·m | 1.80 N·m | 3.00 N·m | 3.00 N·m | 3.00 N·m |
| Brake | No Brake | No Brake | No Brake | No Brake | No Brake | No Brake | No Brake | No Brake | No Brake | No Brake | No Brake | No Brake |
| Open-Loop/Closed-Loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop |
| Encoder Type | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder |
| Rated Voltage | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC |
| Voltage Range | 12-52VDC | 12-52VDC | 12-52VDC | 12-52VDC | 12-52VDC | 12-52VDC | 12-52VDC | 12-52VDC | 12-52VDC | 12-52VDC | 12-52VDC | 12-52VDC |
| Rated Current | 2.8 A | 2.8 A | 2.8 A | 2.8 A | 2.8 A | 2.8 A | 2.8 A | 2.8 A | 2.8 A | 2.8 A | 2.8 A | 2.8 A |
| Inertia | - | - | - | - | - | - | - | - | - | - | - | - |
| Body Length | 61 mm | 61 mm | 61 mm | 76 mm | 76 mm | 76 mm | 96 mm | 96 mm | 96 mm | 132 mm | 132 mm | 132 mm |
| Weight | 0.53 kg | 0.53 kg | 0.53 kg | 0.75 kg | 0.75 kg | 0.75 kg | 1.10 kg | 1.10 kg | 1.10 kg | 1.74 kg | 1.74 kg | 1.74 kg |
* Scroll horizontally within the table area when the content is wide.
Specifications
| Shaft Diameter | Φ8 |
| Number Of Phases | 2 |
| Step Angle | 1.8° |
| Encoder Introduction | 14-bit absolute magnetic encoder for closed-loop models(Open-loop version without encoder) |
| Subdivision | 1,2,4,8,16 |
| Control Modes | CiA402 Mode,Manufacturer Mode,Position Mode,Velocity Mode,Homing Mode |
| External Control Interface | DI – Non-isolated NPN Input,DI – Non-isolated Switch Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output |
| CiA402 Mode | PP、VM、PV、HM、IP、CSP、CSV (via CANopen communication) |
| DI (Digital Input) | CANopen:Quantity 3; Not isolated; High level: 3.3-36; Low: 0~1V Channel type: Level input;CAN/485: Quantity 3; Not isolated;NPN |
| DO (Digital Output) | Quantity 1; Not isolated; NPN type drain open output, DO load maximum current 100mA, maximum voltage 48V |
| DX (Digital Input / Output) | - |
| AI (Analog Input) | - |
| Operating Temperature | 0°C to 40°C |
| Operating Altitude | <1000m |
| Fault Alarm | Overvoltage, undervoltage, overtemperature, locked rotor |
Torque-Speed Characteristics
STM5741X-CAN/485/CANopen-H-0FS
STM5756X-CAN/485/CANopen-H-0FS
STM5776X-CAN/485/CANopen-H-0FS
STM57B5X-CAN/485/CANopen-H-0FS
Product Details
The STM57H series (open-loop & closed-loop) integrated stepper motor is a step product independently developed by NiMotion. Based on the excellent closed-loop control system (closed-loop mode) and highly integrated design concept, this product integrates the stepper motor, encoder (closed-loop), driver, digital I/O and brake, supports communication bus control, and has the characteristics of compact structure and simple wiring.
Product Features
Highly integrated design

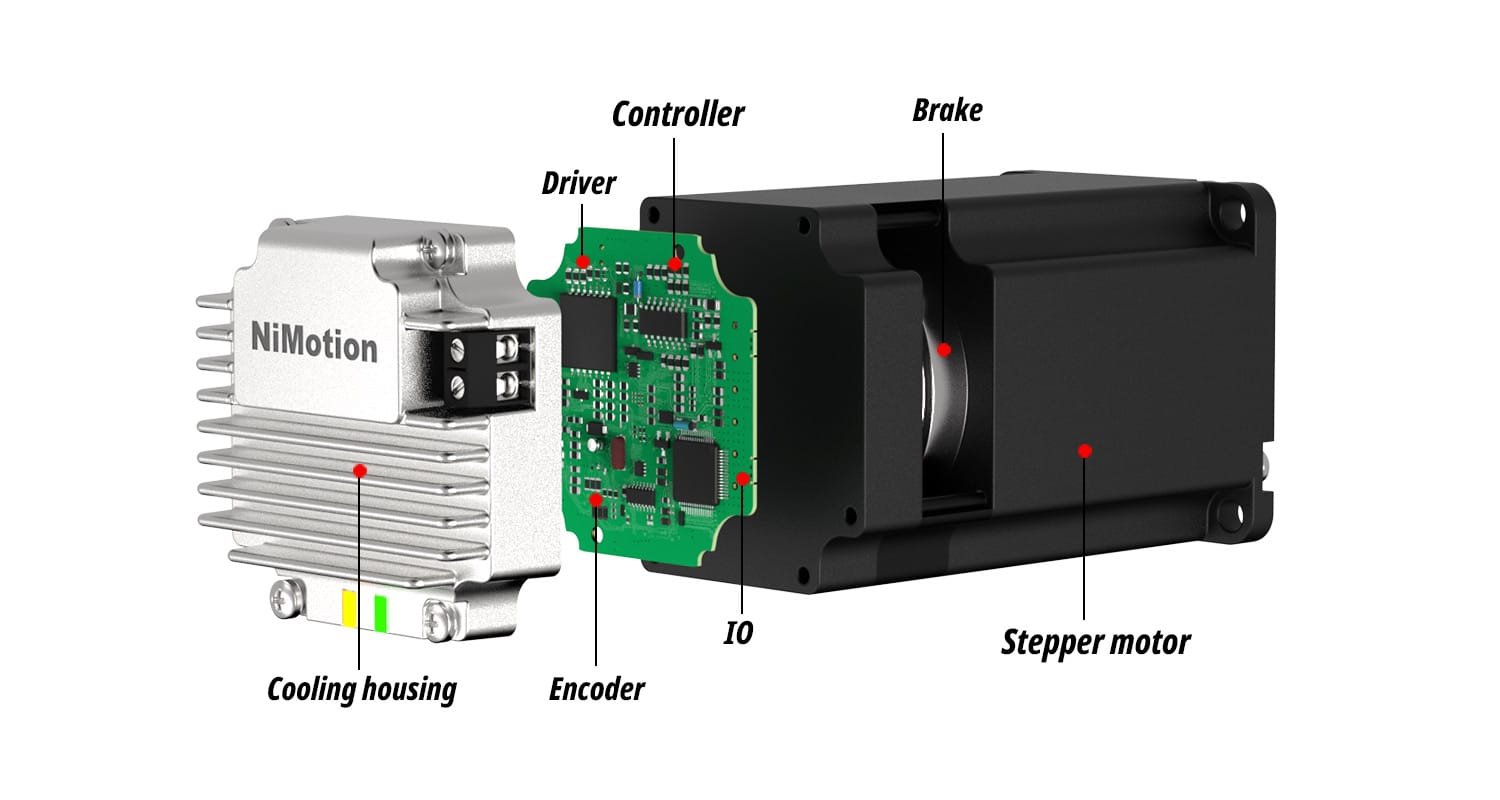

All-in-one design deeply integrating the motor body with the drive and encoder, giving a compact body, simple wiring and easier machine integration.
High Precision Encoder Feedback
Built-in 14-bit high-resolution absolute encoder (closed-loop support) provides real-time position and speed feedback for more accurate closed-loop control, ensuring smoother operation and more accurate positioning.
Multi-bus communication support
Supports CANopen and RS485 communication, allowing quick connection to mainstream PLCs, motion controllers and host systems, with flexible networking and easy expansion.
Standard CiA 402 Sport Mode
Supports CiA 402 standard motion modes (PP, PV, HM, CSP, CSV, etc.) as well as position mode and velocity mode, ensuring compatibility with mainstream fieldbus motion-control architectures and making replacement and commissioning easier.
Wide Voltage Input
Wide input voltage range of 12-52 VDC, suitable for various power-supply environments and giving greater flexibility in system integration and retrofitting.
Segment can be set
Micro-stepping setting of 1、2、4、8、16 steps selectable effectively reduces low-speed vibration and noise and improves positioning resolution and smoothness.
Overall Dimensions

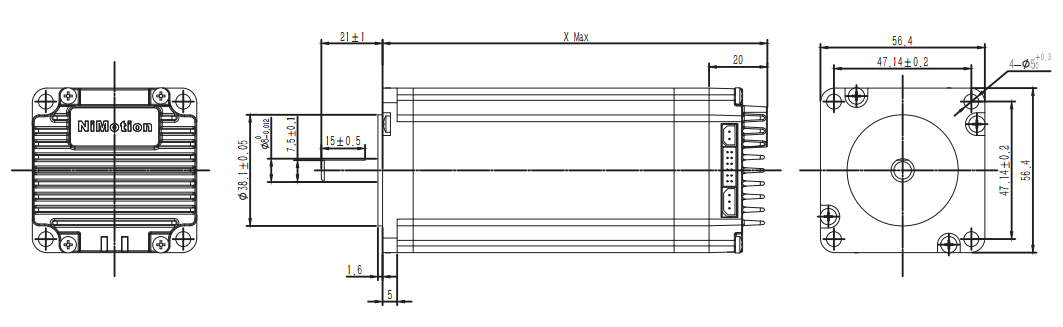

Base width: 57mm, X represents the body length. Please click the "Download" section below to view detailed drawings.
Application in Overhead/Trolley Robots
This integrated 57-series stepper servo motor series is suitable for overhead robots and trolley robot movement control. Its compact integrated design saves equipment space, and the motor requires no external driver or complex wiring. The built-in encoder enables full closed-loop control. It supports multiple communication protocols for easy installation and use.
