STM86-B (With Brake) Integrated Stepper Motor
With Brake, 86mm flange integrated stepper motor – seamlessly combines stepper motor, driver, controller, and I/O interfaces into a single unit. Reduces wiring, lowers failure points, ensures stable motion, and is suitable for a wide range of small to medium automation equipment.
Features
- CAN/CANopen/RS485
- 14-bit encoder for closed-loop control
- Supports DI and DO control
Models & Specifications
| Specifications | STM8665A-CAN-0HSB | STM8665A-CANopen-0HSB | STM8665A-485-0HSB | STM8680A-CAN-0HSB | STM8680A-CANopen-0HSB | STM8680A-485-0HSB | STM86B8A-CAN-0HSB | STM86B8A-CANopen-0HSB | STM86B8A-485-0HSB | STM86F6A-CAN-0HSB | STM86F6A-CANopen-0HSB | STM86F6A-485-0HSB |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flange Size | 86mm | 86mm | 86mm | 86mm | 86mm | 86mm | 86mm | 86mm | 86mm | 86mm | 86mm | 86mm |
| Holding Torque | 2.6 N·m | 2.6 N·m | 2.6 N·m | 3.7 N·m | 3.7 N·m | 3.7 N·m | 8.0 N·m | 8.0 N·m | 8.0 N·m | 12.0 N·m | 12.0 N·m | 12.0 N·m |
| Brake | Integrated brake (External 24V supply) | Integrated brake (External 24V supply) | Integrated brake (External 24V supply) | Integrated brake (External 24V supply) | Integrated brake (External 24V supply) | Integrated brake (External 24V supply) | Integrated brake (External 24V supply) | Integrated brake (External 24V supply) | Integrated brake (External 24V supply) | Integrated brake (External 24V supply) | Integrated brake (External 24V supply) | Integrated brake (External 24V supply) |
| Open-Loop/Closed-Loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop |
| Encoder Type | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder |
| Rated Voltage | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC |
| Voltage Range | 10-60VDC | 10-60VDC | 10-60VDC | 10-60VDC | 10-60VDC | 10-60VDC | 10-60VDC | 10-60VDC | 10-60VDC | 10-60VDC | 10-60VDC | 10-60VDC |
| Rated Current | 6.0 A | 6.0 A | 6.0 A | 5.5 A | 5.5 A | 5.5 A | 6.0 A | 6.0 A | 6.0 A | 6.2 A | 6.2 A | 6.2 A |
| Inertia | 0.94×10^-4 kg·m² | 0.94×10^-4 kg·m² | 0.94×10^-4 kg·m² | 1.40×10^-4 kg·m² | 1.40×10^-4 kg·m² | 1.40×10^-4 kg·m² | 2.50×10^-4 kg·m² | 2.50×10^-4 kg·m² | 2.50×10^-4 kg·m² | 3.10×10^-4 kg·m² | 3.10×10^-4 kg·m² | 3.10×10^-4 kg·m² |
| Body Length | 85 mm | 85 mm | 85 mm | 100 mm | 100 mm | 100 mm | 138 mm | 138 mm | 138 mm | 176 mm | 176 mm | 176 mm |
| Weight | 1.70 kg | 1.70 kg | 1.70 kg | 2.40 kg | 2.40 kg | 2.40 kg | 3.80 kg | 3.80 kg | 3.80 kg | 5.30 kg | 5.30 kg | 5.30 kg |
* Scroll horizontally within the table area when the content is wide.
Specifications
| Shaft Diameter | Φ14 |
| Number Of Phases | 2 |
| Step Angle | 1.8° |
| Encoder Introduction | 14-bit absolute magnetic encoder for closed-loop models(Open-loop version without encoder) |
| Subdivision | 1,2,4,8,16 |
| Control Modes | CiA402 Mode,Manufacturer Mode,Position Mode,Velocity Mode,Homing Mode |
| External Control Interface | DI – Non-isolated NPN Input,DI – Non-isolated Switch Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output |
| CiA402 Mode | PP、VM、PV、VM、IP、HM、CSP、CSV (CANopen communication) |
| DI (Digital Input) | Quantity 3; Not isolated; High level: 3-3.3V; Low level: 0~0.5V,Channel type: level input, passive contact input |
| DO (Digital Output) | - |
| DX (Digital Input / Output) | Quantity: 2; No isolation; Configurable as DI or DO via parameters; DO load maximum current: 8mA; High level: 3–3.3V; Low level: 0–0.5V. |
| AI (Analog Input) | - |
| Operating Temperature | 0°C to 40°C |
| Operating Altitude | <1000m |
| Fault Alarm | Overvoltage, undervoltage, overheat, locked rotor |
Torque-Speed Characteristics
ST8665-0HSB
ST8680-0HSB
ST86B8-0HSB
ST86F6-0HSB
Product Details
The STM86 series integrated stepper motor is a high-performance, low-power stepper product independently developed by NiMotion. Based on the excellent closed-loop control system and the integrated design concept, this product integrates the stepper motor, encoder, driver and digital I/O into one, supports communication bus control, and has the characteristics of compact structure and simple wiring.
Product Features

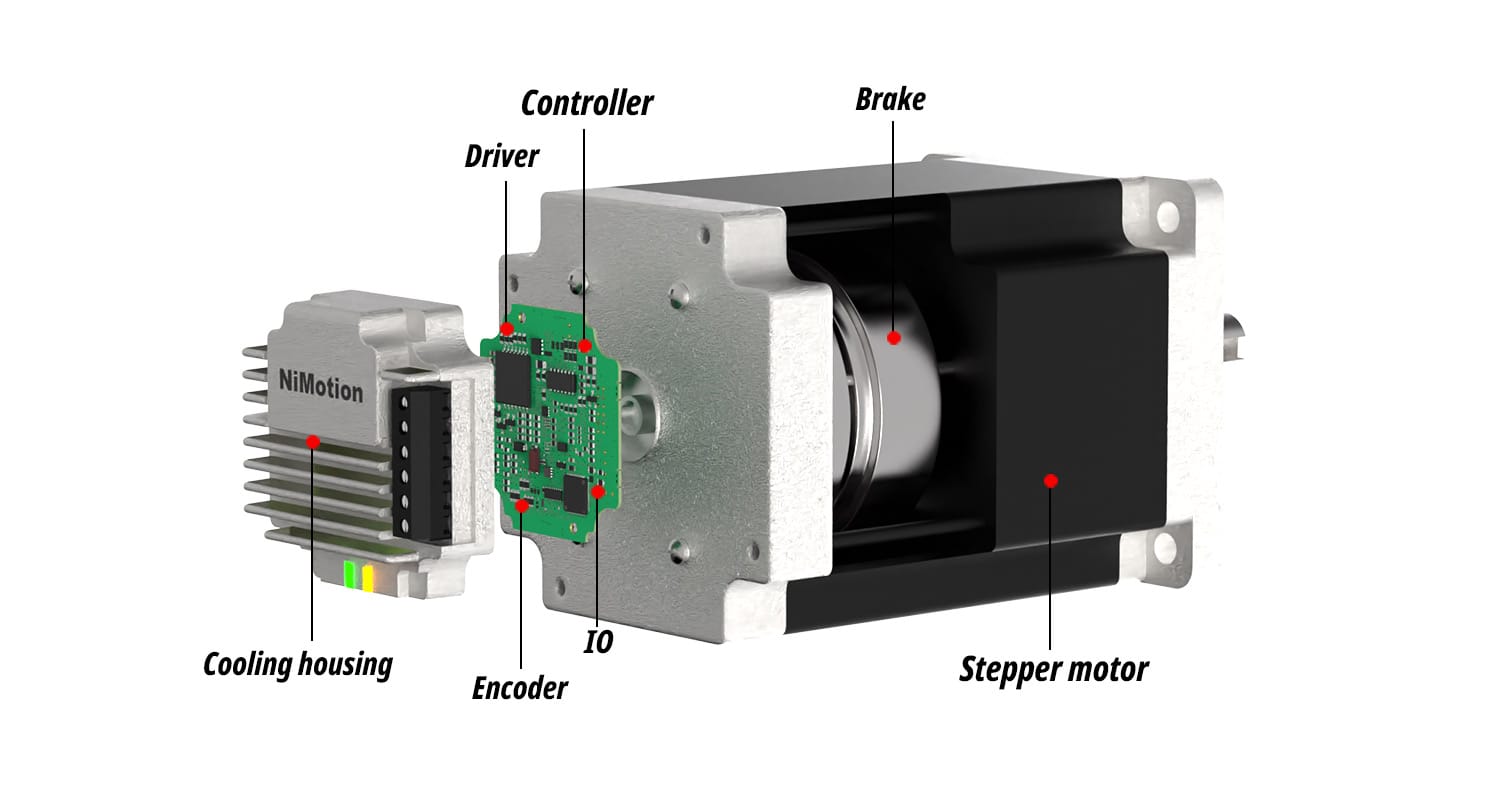

Highly integrated design
Integrates Stepper motors, encoders, drives and digital I/O into a single compact unit, so no external drive is required. Compared with conventional separated solutions it saves considerable installation space, needs less wiring, and makes commissioning and maintenance easier.
High Precision Encoder Feedback
Built-in 14-bit high-resolution absolute encoder (closed-loop support) provides real-time position and speed feedback for more accurate closed-loop control, ensuring smoother operation and more accurate positioning.
Multi-bus communication support
Supports CANopen communication, allowing quick connection to mainstream PLCs, motion controllers and host systems, with flexible networking and easy expansion.
Standard CiA 402 Sport Mode
Supports CiA 402 standard motion modes (PP, PV, HM, CSP, CSV, etc.) as well as position mode and velocity mode, ensuring compatibility with mainstream fieldbus motion-control architectures and making replacement and commissioning easier.
Wide Voltage Input
Wide input voltage range of 10-60VDC, suitable for various power-supply environments and giving greater flexibility in system integration and retrofitting.
Segment can be set
Micro-stepping setting of 1、2、4、8、16 steps selectable effectively reduces low-speed vibration and noise and improves positioning resolution and smoothness.
Overall Dimensions
Base width: 86mm, X represents the body length. Please click the "Download" section below to view detailed drawings.
