CFG4-42 Linear Slide Module
CFG4-42 Linear Slide Module (1 images/videos)
CFG4-42 Linear Slide Module

CFG4-42 Linear Slide Module

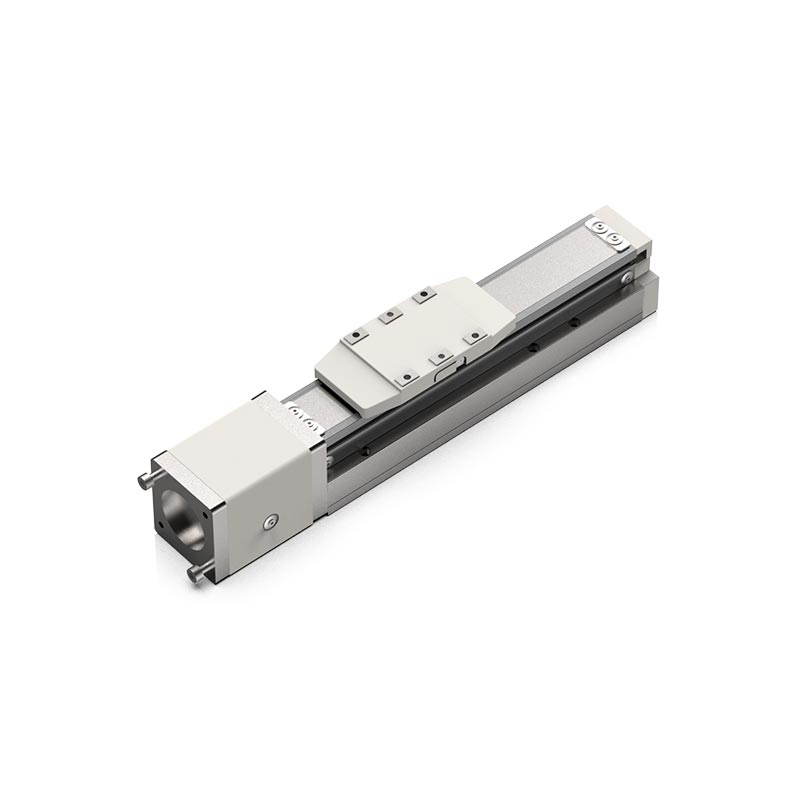

CFG4-42 stepper motor single-axis embedded screw slide module, repeatability ±0.01mm, leads 2/5/10mm, max speed 500mm/s.

Models & Specifications

Specs as rows · Models as columns
SpecificationsCFG12-10CFG12-5CFG12-2
Home SensorEE-SX674(NPN)EE-SX674(NPN)EE-SX674(NPN)
Coupling7X87X87X8
Ball Screw Outer Diameter10mm10mm10mm
Standard Stroke50-800mm50-800mm50-800mm
Thrust142N285N854N
Max Vertical Load8kg8kg8kg
Max Horizontal Load20kg20kg25kg
Max Speed0.5m/s0.25m/s0.1m/s
Screw Lead10mm5mm2mm
Repeat Positioning Accuracy0.01mm0.01mm0.01mm

* Scroll horizontally within the table area when the content is wide.

Downloads

NameTypeSizeUpdate DateDownload
NiMotion-Slide Table Module Manual
Selection Guide17.2MB2026-09-07
