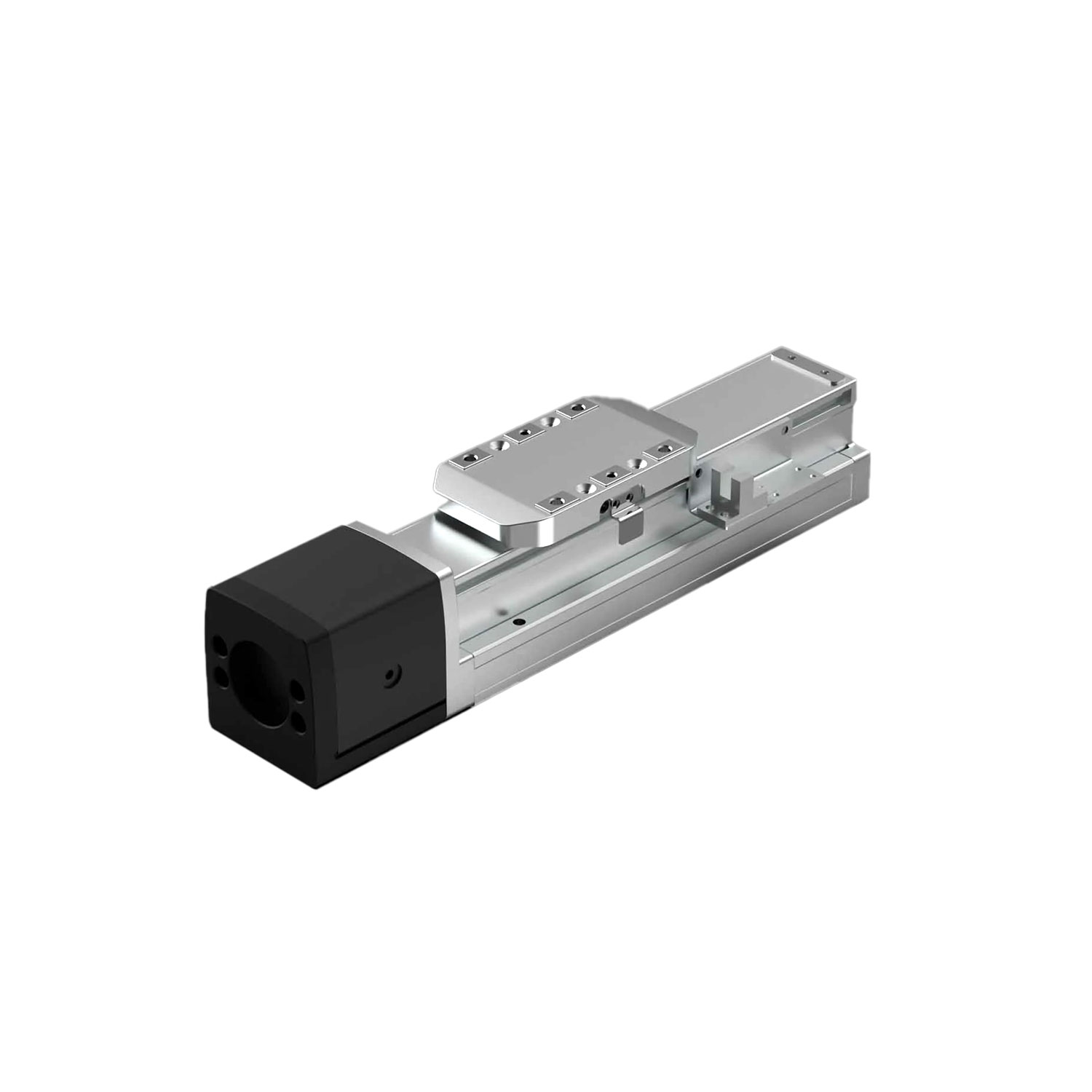

KTH5 screw-driven dust-proof rail embedded module, repeatability ±0.005mm, leads 5/10/20mm, max speed 1000mm/s, horizontal load 30kg.

Models & Specifications

Specs as rows · Models as columns
SpecificationsKTH5-BL-20KTH5-BL-10KTH5-BL-5
Home SensorEE-SX674EE-SX674EE-SX674
Coupling7X87X87X8
Ball Screw Outer Diameter12mm12mm12mm
Standard Stroke50-800mm50-800mm50-800mm
Thrust85N170N341N
Max Vertical Load2.5kg5kg10kg
Max Horizontal Load10kg15kg30kg
Max Speed1m/s0.5m/s0.25m/s
Screw Lead20mm10mm5mm
Repeat Positioning Accuracy0.005mm0.005mm0.005mm
