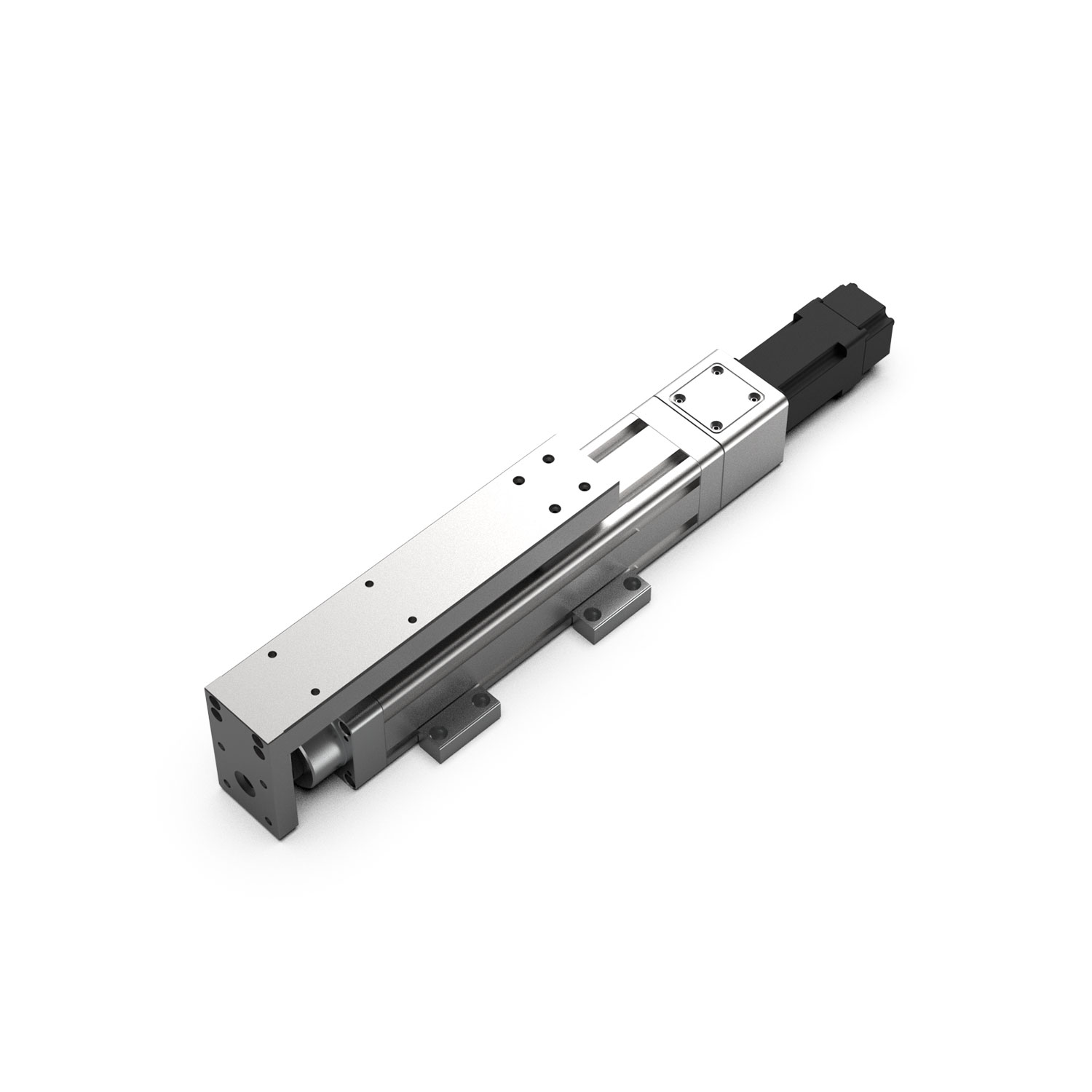

EC50L Electric Cylinder
EC50L Electric Cylinder (1 images/videos)
EC50L Electric Cylinder

EC50L Electric Cylinder

EC50L series electric cylinder, 52mm width, 100W servo, repeatability ±0.01mm, max speed 250mm/s, horizontal load 30kg.

Models & Specifications

Specs as rows · Models as columns
SpecificationsEC50L
Home SensorCS-6T
Coupling8X8
Ball Screw Outer Diameter12mm
Standard Stroke50-500mm
Thrust341N
Max Vertical Load12kg
Max Horizontal Load30kg
Max Speed0.25mm/s²
Screw Lead5mm
Repeat Positioning Accuracy0.01mm

* Scroll horizontally within the table area when the content is wide.

Downloads

NameTypeSizeUpdate DateDownload
NiMotion Electric Cylinder Manual
Selection Guide9.0MB2026-08-25
