WDG28M Electric Cylinder (5 images/videos)
WDG28M Electric Cylinder

WDG28M Electric Cylinder

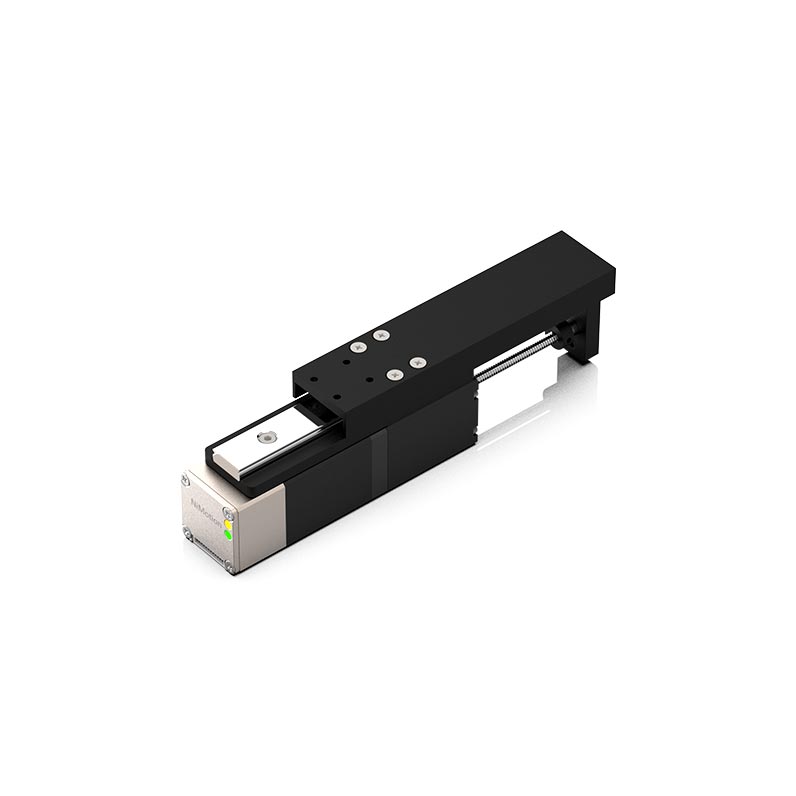

WDG28M series micro electric cylinder with 28mm frame, CANopen/RS485, max thrust 25N, stroke 30/50mm.

Models & Specifications

Specs as rows · Models as columns
SpecificationsWDG28M-2-50-MWDG28M-2-30-M
Repeat Positioning Accuracy0.01mm0.01mm
Screw Lead2mm2mm
Max Speed80mm/s²80mm/s²
Max Horizontal Load3kg3kg
Max Vertical Load1kg1kg
Thrust25N25N
Standard Stroke50mm30mm
Ball Screw Outer Diameter--

* Scroll horizontally within the table area when the content is wide.

Product Details

Product Overview

The motor body height is only 28mm No coupling required Quantity: 3, supports PWM pulse input, logic 1 signal: 5-24V, logic 0 signal: 0-2V NiMotion mode: position mode, speed mode, torque mode CiA 402 mode: position mode, speed mode, torque mode Control mode The WDG28M series integrated micro electric cylinder is a small motion module independently developed by NiMotion. The integrated electric cylinder integrates an integrated stepper servo motor + linear guide + ball screw + electric cylinder base. It does not require a coupling and is sturdy and durable.

Product Features

  • Bus Control + Pulse Control

  • Highly integrated design

  • Ball screw grinding grade process

  • No coupling required

  • Integrated miniature electric cylinder

Multi-bus communication support

Supports Modbus, CANopen and RS485 communication, allowing quick connection to mainstream PLCs, motion controllers and host systems, with flexible networking and easy expansion.

Standard CiA 402 Sport Mode

Supports CiA 402 standard motion modes (PP, PV, HM, CSP, CSV, etc.) as well as torque mode, ensuring compatibility with mainstream fieldbus motion-control architectures and making replacement and commissioning easier.

Wide Voltage Input

Wide input voltage range of 12-30 VDC, suitable for various power-supply environments and giving greater flexibility in system integration and retrofitting.

Reliable protection design

Protection class IP40: resistant to dust and splashing water, suitable for a wide range of industrial environments.

High repetitive positioning accuracy

Repeat positioning accuracy of ±0.005mm ensures consistent motion, ideal for precision gripping, assembly and inspection applications.

Multi-model options

This series provides 2 subdivision models (WDG28M-2-30-M, WDG28M-2-50-M, etc.), covering different fuselage lengths, torque and interface configurations, with flexible selection and easy replacement
