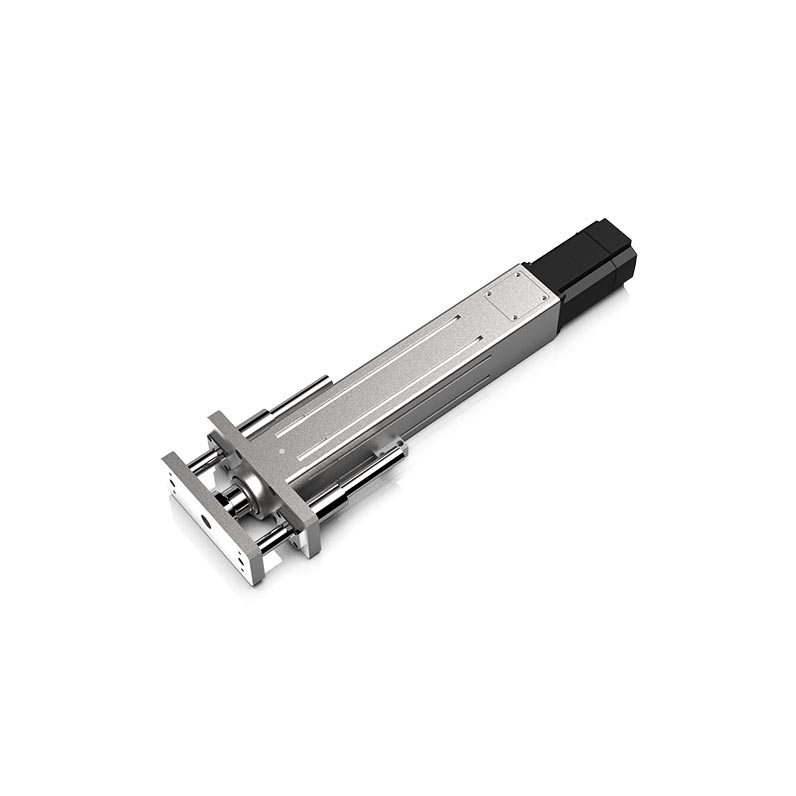

EC80T Electric Cylinder
EC80T Electric Cylinder (1 images/videos)
EC80T Electric Cylinder

EC80T Electric Cylinder

EC80T series electric cylinder, 80mm width, 750W servo, repeatability ±0.01mm, max speed 250mm/s, horizontal load 200kg.

Models & Specifications

Specs as rows · Models as columns
SpecificationsEC80T
Home SensorCS-6T
Coupling17X19
Ball Screw Outer Diameter25mm
Standard Stroke50-1200mm
Thrust2520N
Max Vertical Load65kg
Max Horizontal Load200kg
Max Speed0.25mm/s²
Screw Lead5mm
Repeat Positioning Accuracy0.01mm

* Scroll horizontally within the table area when the content is wide.

Downloads

NameTypeSizeUpdate DateDownload
NiMotion Electric Cylinder Manual
Selection Guide9.0MB2026-08-25
