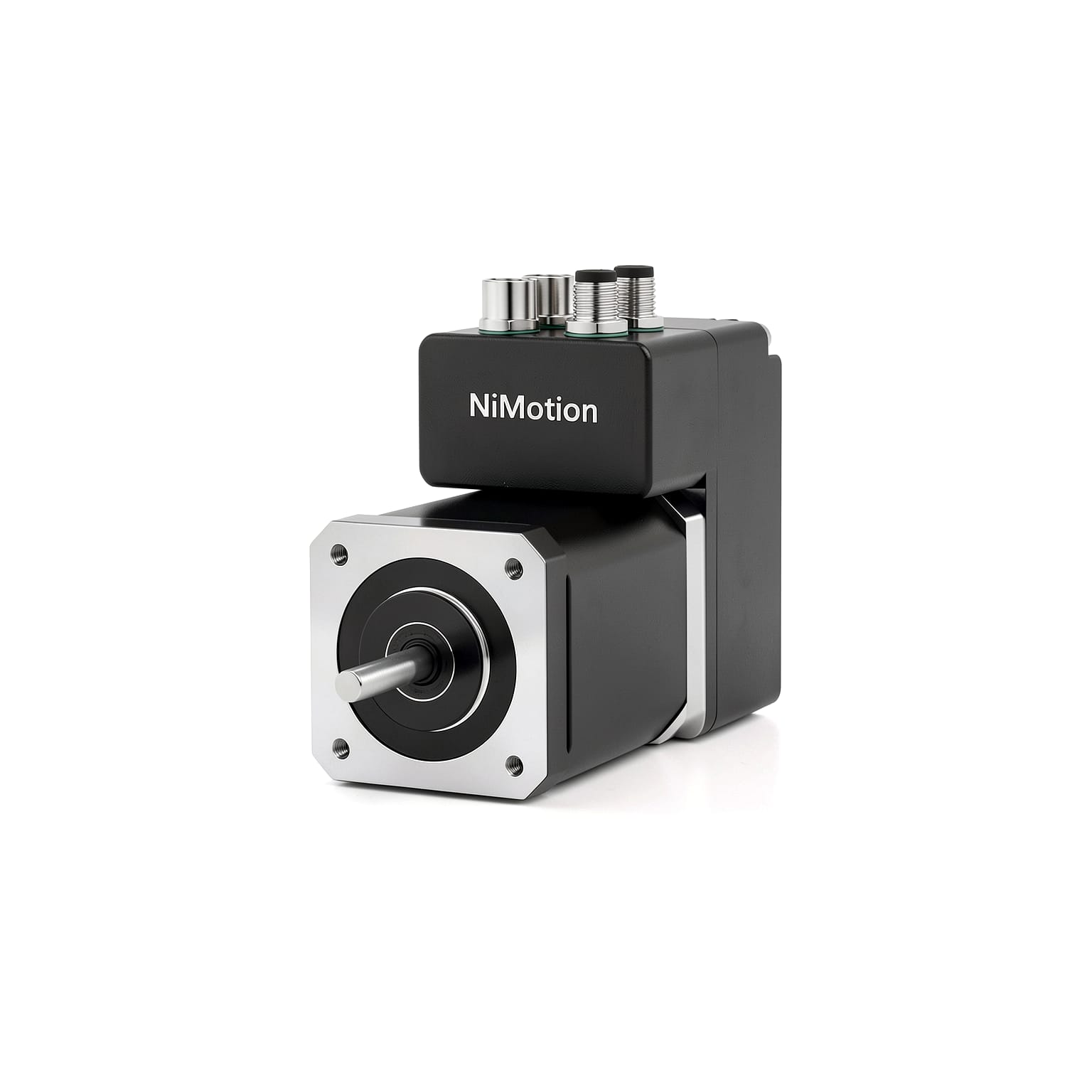

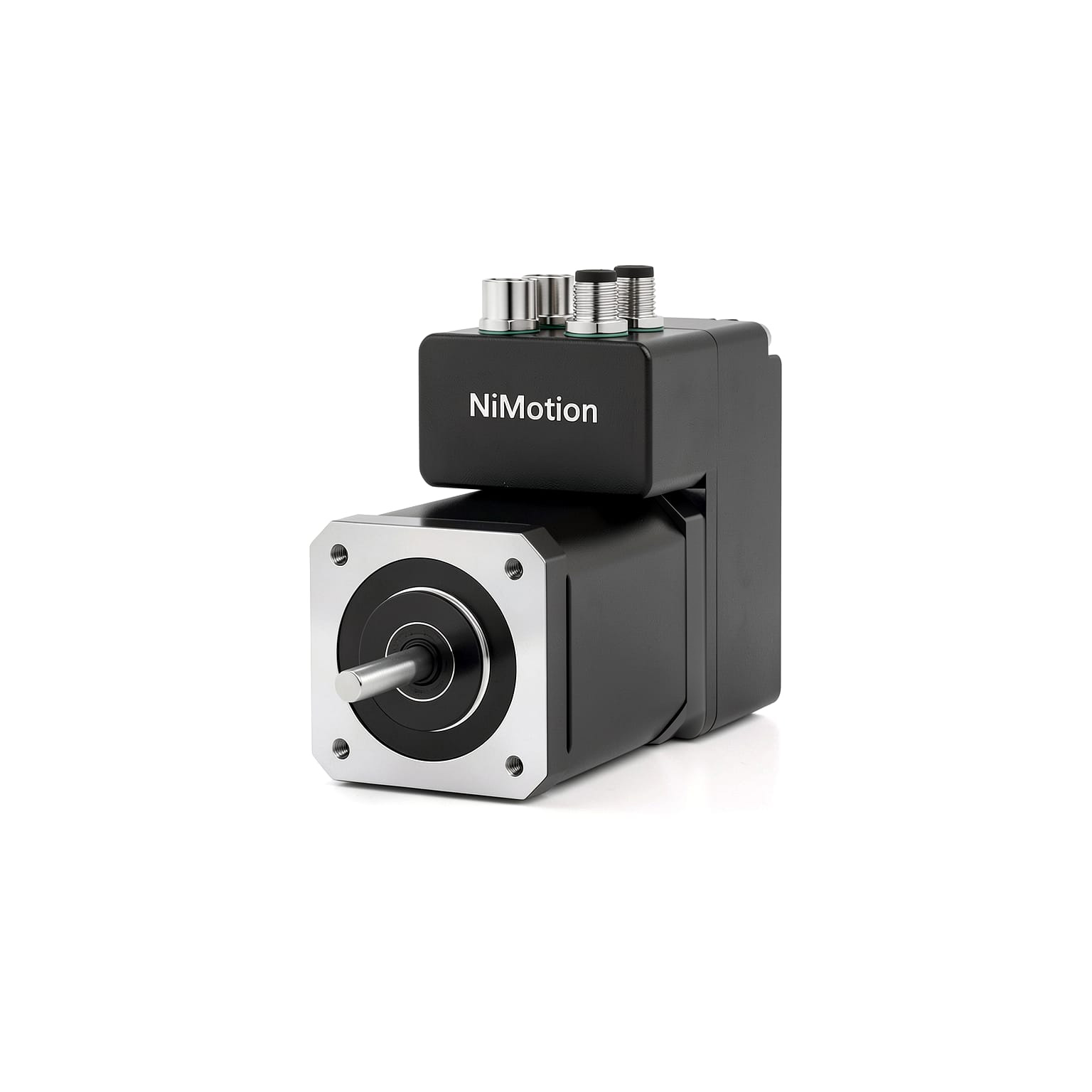

STMP42-S Integrated Waterproof Stepper Servo Motor

IP65-rated 42mm flange integrated stepper servo motor – delivers closed-loop servo control algorithms within a compact footprint, offering significantly improved positioning accuracy, low heat generation, and excellent speed stability. Ideal for a wide range of compact automation equipment.

Features

IP65 Protection
EtherCAT/CANopen/RS485
FOC and SVPWM technology
Optional brake

EtherCAT RS485 CANopen Pulse 42mm

Models & Specifications

Specs as rows · Models as columns

Specifications	STMP4234D-485-S-0FS	STMP4234D-COE-S-0FS	STMP4234D-CANopen-S-0FS	STMP4248D-485-S-0FS	STMP4248D-COE-S-0FS	STMP4248D-CANopen-S-0FS	STMP4260D-485-S-0FS	STMP4260D-COE-S-0FS	STMP4260D-CANopen-S-0FS	STMP4234D-485-S-0FSB	STMP4234D-COE-S-0FSB	STMP4234D-CANopen-S-0FSB	STMP4248D-485-S-0FSB	STMP4248D-COE-S-0FSB	STMP4248D-CANopen-S-0FSB	STMP4260D-485-S-0FSB	STMP4260D-COE-S-0FSB	STMP4260D-CANopen-S-0FSB
Flange Size	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm
Holding Torque	0.27 N·m	0.27 N·m	0.27 N·m	0.50 N·m	0.50 N·m	0.50 N·m	0.69 N·m	0.69 N·m	0.69 N·m	0.27 N·m	0.27 N·m	0.27 N·m	0.50 N·m	0.50 N·m	0.50 N·m	0.69 N·m	0.69 N·m	0.69 N·m
Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic
Encoder type	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder
Rated Voltage	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC
Voltage Range	16-52VDC	16-52VDC	16-52VDC	16-52VDC	16-52VDC	16-52VDC	16-52VDC	16-52VDC	16-52VDC	16-52VDC	16-52VDC	16-52VDC	16-52VDC	16-52VDC	16-52VDC	16-52VDC	16-52VDC	16-52VDC
Inertia	0.035×10⁻⁴ kg·m²	0.035×10⁻⁴ kg·m²	0.035×10⁻⁴ kg·m²	0.068×10⁻⁴ kg·m²	0.068×10⁻⁴ kg·m²	0.068×10⁻⁴ kg·m²	0.082×10⁻⁴ kg·m²	0.082×10⁻⁴ kg·m²	0.082×10⁻⁴ kg·m²	0.035×10⁻⁴ kg·m²	0.035×10⁻⁴ kg·m²	0.035×10⁻⁴ kg·m²	0.068×10⁻⁴ kg·m²	0.068×10⁻⁴ kg·m²	0.068×10⁻⁴ kg·m²	0.082×10⁻⁴ kg·m²	0.082×10⁻⁴ kg·m²	0.082×10⁻⁴ kg·m²
Protection Level	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65
Rated Current	1.3 A	1.3 A	1.3 A	1.7 A	1.7 A	1.7 A	2.0 A	2.0 A	2.0 A	1.3 A	1.3 A	1.3 A	1.7 A	1.7 A	1.7 A	2.0 A	2.0 A	2.0 A
Body Length	65.5 mm	65.5 mm	65.5 mm	79.5 mm	79.5 mm	79.5 mm	91.5 mm	91.5 mm	91.5 mm	93 mm	93 mm	93 mm	107 mm	107 mm	107 mm	119 mm	119 mm	119 mm
Weight	0.403 kg	0.403 kg	0.403 kg	0.539 kg	0.539 kg	0.539 kg	0.658 kg	0.658 kg	0.658 kg	0.595 kg	0.595 kg	0.595 kg	0.730 kg	0.730 kg	0.730 kg	0.850 kg	0.850 kg	0.850 kg

* Scroll horizontally within the table area when the content is wide.

Specifications

Shaft Diameter	Φ5
Number Of Phases	2
Step Angle	1.8°
Encoder	17-bit multi-turn absolute encoder (external battery backup)
Control Modes	CiA402 Mode,Manufacturer Mode
External Control Interface	DI – Non-isolated NPN Input,DI – Non-isolated PNP Input,DI – Non-isolated Switch Input,DI – Isolated Opto Single-Ended Input,DI – Isolated Opto Differential Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output,AI – 0–10V Analog Input,AI – ±10V Analog Input
CiA402 Mode	PP, VM, PV, PT, HM, IP, CSP, CSV, CST
DI (Digital Input)	Quantity: 3, High-speed bidirectional optocouplers，High level: 12–24V，Low level: 0–0.5V Maximum PWM pulse frequency: 2MHz，Configurable functions: Can be configured as switches or as pulse input channels
DO (Digital Output)	Quantity: 1, O Output method: MOS open-drain output ,Current: DO1 - Maximum load current 2A, maximum voltage 55V Configurable functions: 1. Ordinary DO; 2. The motor stops running; 3. Goal achieved; 4. Alarm output；Motor with brake: DO not available
AI (Analog Input)	Quantity: 1; Input method: single-ended input; Signal type: voltage signal; Resolution: 12-bit; Voltage: 0~10V; Accuracy: reference error ≤1%; Configurable functions: dead zone, filtering, offset, scaling, direction.
Operating Temperature	0°C to 40°C
Operating Altitude	<1000m
Fault Alarm	Overvoltage, undervoltage, overtemperature, locked rotor
Servo Function	Soft limit, gain switching, S-curve planning, vibration suppression, parameter identification, online upgrade

Product Details

Application in Engraving Machine Equipment

The STMP42S series IP65-rated integrated motor upgrades small engraving machines from "vulnerable and interference-prone" to "dustproof, waterproof, and maintenance-free." It is particularly suitable for long-duration processing of stone, wood, or metal workpieces that require coolant in open environments (without protective covers). It ensures micron-level machining precision while significantly reducing downtime and maintenance caused by dust and liquid ingress.

IP65 Protection Rating – Waterproof and Dustproof

The product features excellent sealing performance, effectively preventing the ingress of external dust and water mist. With stronger adaptability to various working conditions, the motor delivers outstanding overall performance and higher reliability.
