STM57

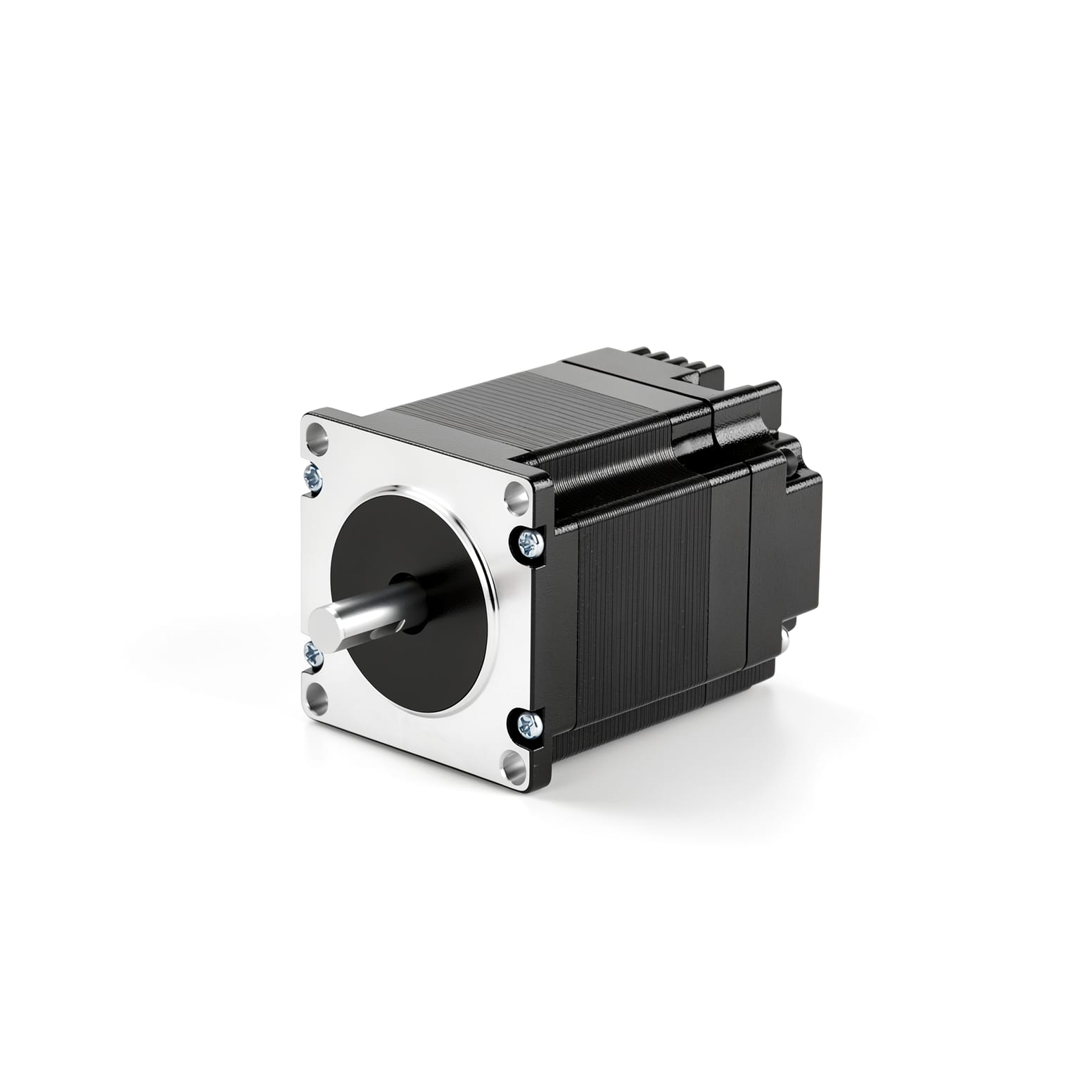

STM57PI Integrated Pulse-controlled Stepper Motor

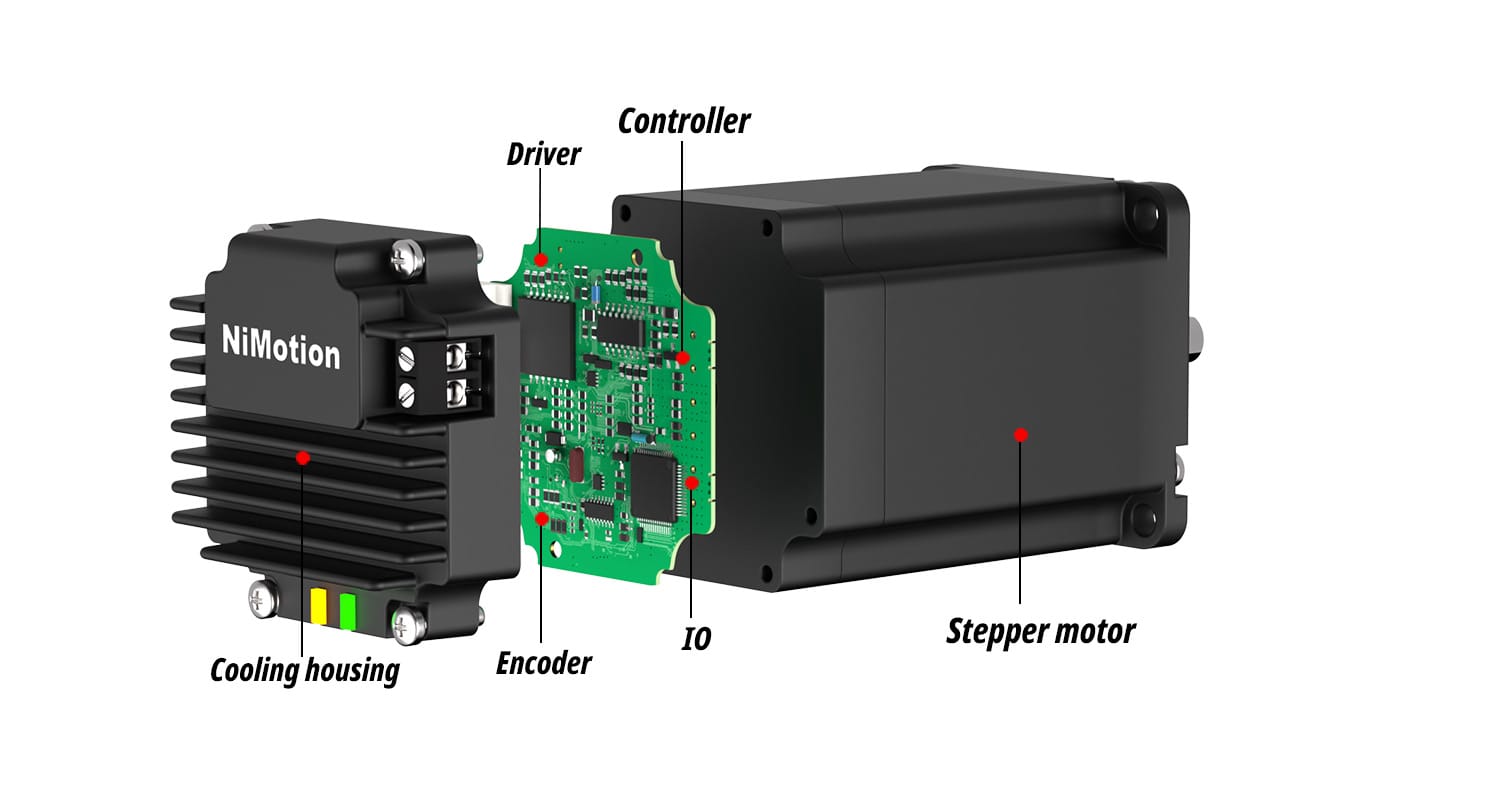

57mm flange integrated stepper motor – seamlessly combines stepper motor, driver, controller, and I/O interfaces into a single unit. Reduces wiring, lowers failure points, ensures stable motion, and is suitable for a wide range of small to medium automation equipment.

Features

Pulse/RS485 bus control
Closed-loop control with 14-bit encoder
Supports DI and DO control

RS485 Pulse 57mm

Models & Specifications

Specs as rows · Models as columns

Specifications	STM5741A-485-PI-0FS	STM5756A-485-PI-0FS	STM5776A-485-PI-0FS	STM57B5A-485-PI-0FS	STM5741A-485-PIL-0FS	STM5756A-485-PIL-0FS	STM5776A-485-PIL-0FS	STM57B5A-485-PIL-0FS
Flange Size	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm
Holding Torque	0.55 N·m	1.26 N·m	1.80 N·m	3.00 N·m	0.55 N·m	1.26 N·m	1.80 N·m	3.00 N·m
Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake
Open-Loop/Closed-Loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop
Encoder Type	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder
Rated Voltage	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC
Voltage Range	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC
Rated Current	2.8 A	2.8 A	2.8 A	2.8 A	2.8 A	2.8 A	2.8 A	2.8 A
Inertia	1.2×10^-5 kg·m²	3.0×10^-5 kg·m²	4.8×10^-5 kg·m²	8.0×10^-5 kg·m²	1.2×10^-5 kg·m²	3.0×10^-5 kg·m²	4.8×10^-5 kg·m²	8.0×10^-5 kg·m²
Body Length	61 mm	76 mm	96 mm	132 mm	61 mm	76 mm	96 mm	132 mm
Weight	0.49 kg	0.71 kg	1.05 kg	1.67 kg	0.49 kg	0.71 kg	1.05 kg	1.67 kg

* Scroll horizontally within the table area when the content is wide.

Specifications

Shaft Diameter	Φ8
Number Of Phases	2
Step Angle	1.8°
Encoder Introduction	14-bit absolute magnetic encoder
Subdivision	Configurable via DIP switch
Control Modes	Manufacturer Mode,Position Mode,Velocity Mode,Homing Mode
External Control Interface	DI – Non-isolated NPN Input,DI – Non-isolated PNP Input,DI – Non-isolated Switch Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output
CiA402 Mode	-
DI (Digital Input)	Quantity: 3, high-speed isolation, compatible with source type and drain type, all adopt high-speed optocouplers, supporting PNP and NPN; 5V and 24V pulse inputs Function: Used as a pulse input channel: DI1: Pulse Input (PUL)DI2: Direction Input (DIR) DI3: Enable (EN)
DO (Digital Output)	Quantity: 2, high-speed isolation, output mode: open-drain output, external voltage allowable range: 15~30VDC, single-channel output current: less than 150mA, configurable functions: 1. The goal has been reached. 2. Alarm output (When the motor status meets the above conditions, the DO switch quantity status changes)
DX (Digital Input / Output)	-
AI (Analog Input)	-
Operating Temperature	0°C to 40°C
Operating Altitude	<1000m
Fault Alarm	Overvoltage, undervoltage, overtemperature, locked rotor, storage fault, over-limit

Downloads

Name	Type	Size	Update Date
NiMotion Integrated Motor Selection Guide	Selection Guide	12.8MB	2026-08-25
Motor Tuning Software – Stepper 485 Communication	Software	22.8MB	2026-08-27
Communication Manual – stm57pi-Modbus	Communication Manual	901.6KB	2026-08-25
stm57pi-series-pulse-control-User Manual	User Manual	6.7MB	2026-08-17
stm57xx-xxx-pi-0fs-integrated-stepper-motor	Drawing	327.0KB	2026-07-28
