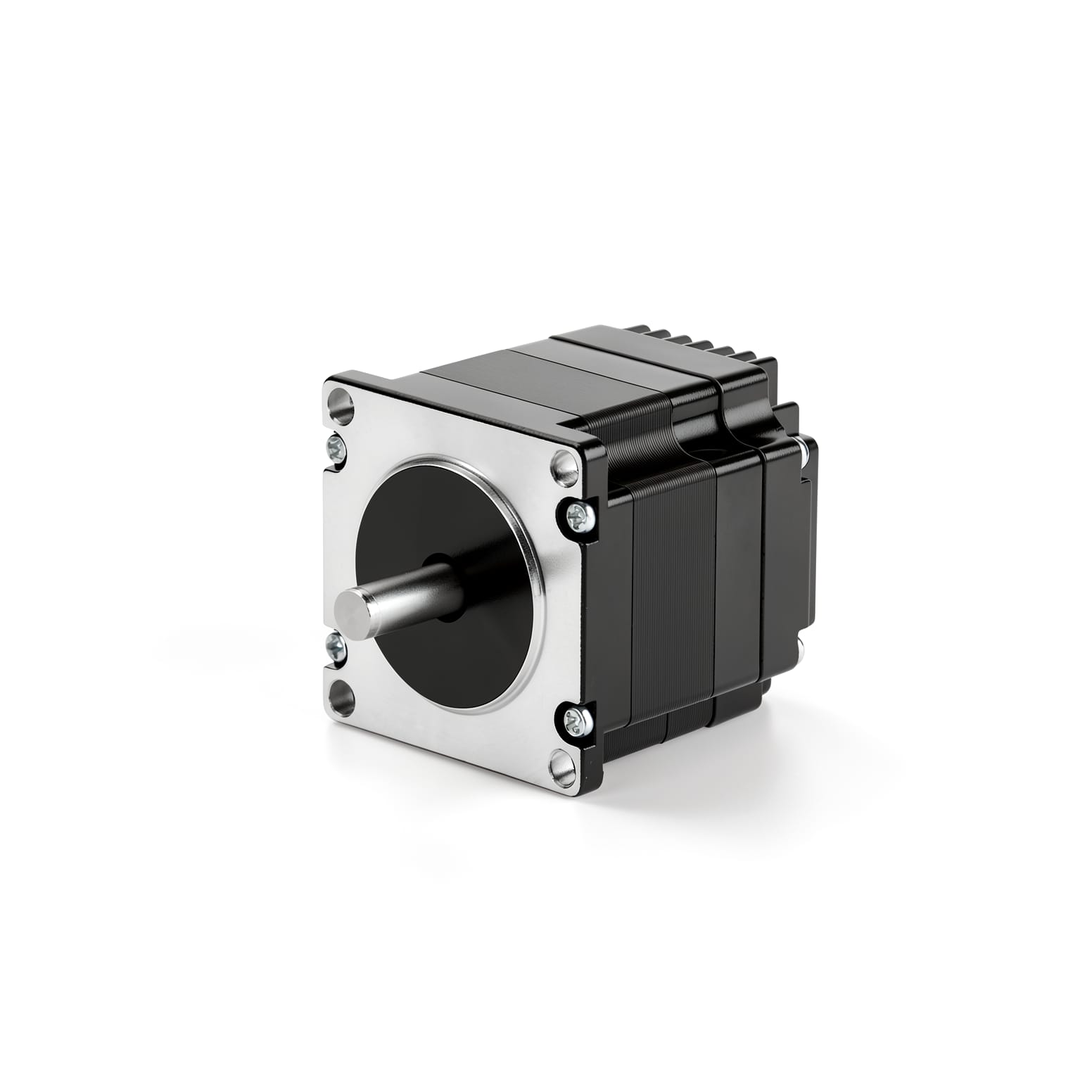

STM57E (Closed-Loop Economy Series) Integrated Stepper Motor
57mm flange integrated stepper motor – seamlessly combines stepper motor, driver, controller, and I/O interfaces into a single unit. Reduces wiring, lowers failure points, ensures stable motion, and is suitable for a wide range of small to medium automation equipment.
Features
- High cost-performance and low cost
- Closed-loop control with 14-bit encoder
- Supports DI, DO, and DX control
Models & Specifications
| Specifications | STM5741A-485-E-0FS | STM5741A-CANopen-E-0FS | STM5756A-485-E-0FS | STM5756A-CANopen-E-0FS | STM5776A-485-E-0FS | STM5776A-CANopen-E-0FS | STM57B5A-485-E-0FS | STM57B5A-CANopen-E-0FS |
|---|---|---|---|---|---|---|---|---|
| Flange Size | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm |
| Brake | No Brake | No Brake | No Brake | No Brake | No Brake | No Brake | No Brake | No Brake |
| Open-Loop/Closed-Loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop |
| Encoder Type | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder |
| Rated Voltage | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 24 VDC |
| Voltage Range | 12-36VDC | 12-36VDC | 12-36VDC | 12-36VDC | 12-36VDC | 12-36VDC | 12-36VDC | 12-36VDC |
| Rated Current | 2.8 A | 2.8 A | 2.8 A | 2.8 A | 2.8 A | 2.8 A | 2.8 A | 2.8 A |
| Inertia | 1.2×10^-5 kg·m² | 1.2×10^-5 kg·m² | 3.0×10^-5 kg·m² | 3.0×10^-5 kg·m² | 4.4×10^-5 kg·m² | 4.4×10^-5 kg·m² | 8.0×10^-5 kg·m² | 8.0×10^-5 kg·m² |
| Body Length | 61 mm | 61 mm | 76 mm | 76 mm | 96 mm | 96 mm | 132 mm | 132 mm |
| Weight | 0.49 kg | 0.49 kg | 0.71 kg | 0.71 kg | 1.05 kg | 1.05 kg | 1.67 kg | 1.67 kg |
* Scroll horizontally within the table area when the content is wide.
Specifications
| Shaft Diameter | Φ8 |
| Number Of Phases | 2 |
| Step Angle | 1.8° |
| Encoder Introduction | 14-bit absolute magnetic encoder |
| Subdivision | - |
| Control Modes | CiA402 Mode,Manufacturer Mode,Position Mode,Velocity Mode,Homing Mode |
| External Control Interface | DI – Non-isolated NPN Input,DI – Non-isolated Switch Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output |
| CiA402 Mode | PP, PV, HM (supported via CANopen communication) |
| DI (Digital Input) | Quantity: 3; Compatible with source and drain types, input polarity can be configured; Low: 0~0.5V, high: 3.3~24V; Configuration function: Used as a switch |
| DO (Digital Output) | Quantity: 1; Output mode: open leakage output; Allowable range of external voltage: DO1:15~30VDC, maximum load current 1.5A; High: 3.3~24VDC, low: 0~0.5VDC Configurable functions: Common DO port; 2. Motor operation stops; 3. Target reached; 4. Alarm output |
| DX (Digital Input / Output) | Quantity 1; It can be set to DI or DO, and the input polarity can be configured. DO load maximum current 8mA; Allowable range of external voltage: 3.3VDC, maximum current 10mA |
| AI (Analog Input) | - |
| Operating Temperature | 0°C to 40°C |
| Operating Altitude | <1000m |
| Fault Alarm | Overvoltage, undervoltage, overtemperature, locked rotor, storage fault, over-limit |
Torque-Speed Characteristics
STM5741A-CANopen-E-XX
STM5756A-CANopen-E-XX
STM5776A-CANopen-E-XX
STM57B5A-CANopen-E-XX
Product Details
STM57E (Economical) series of integrated stepper motors are high-performance, low-power stepper products independently developed by NiMotion. Based on the excellent closed-loop control system and highly integrated design concept, this product integrates the stepper motor, encoder, driver and I/O interface, supports RS485 communication bus control, and has the characteristics of compact structure, simple wiring, reverse power connection protection and safe and reliable operation.
Product Features

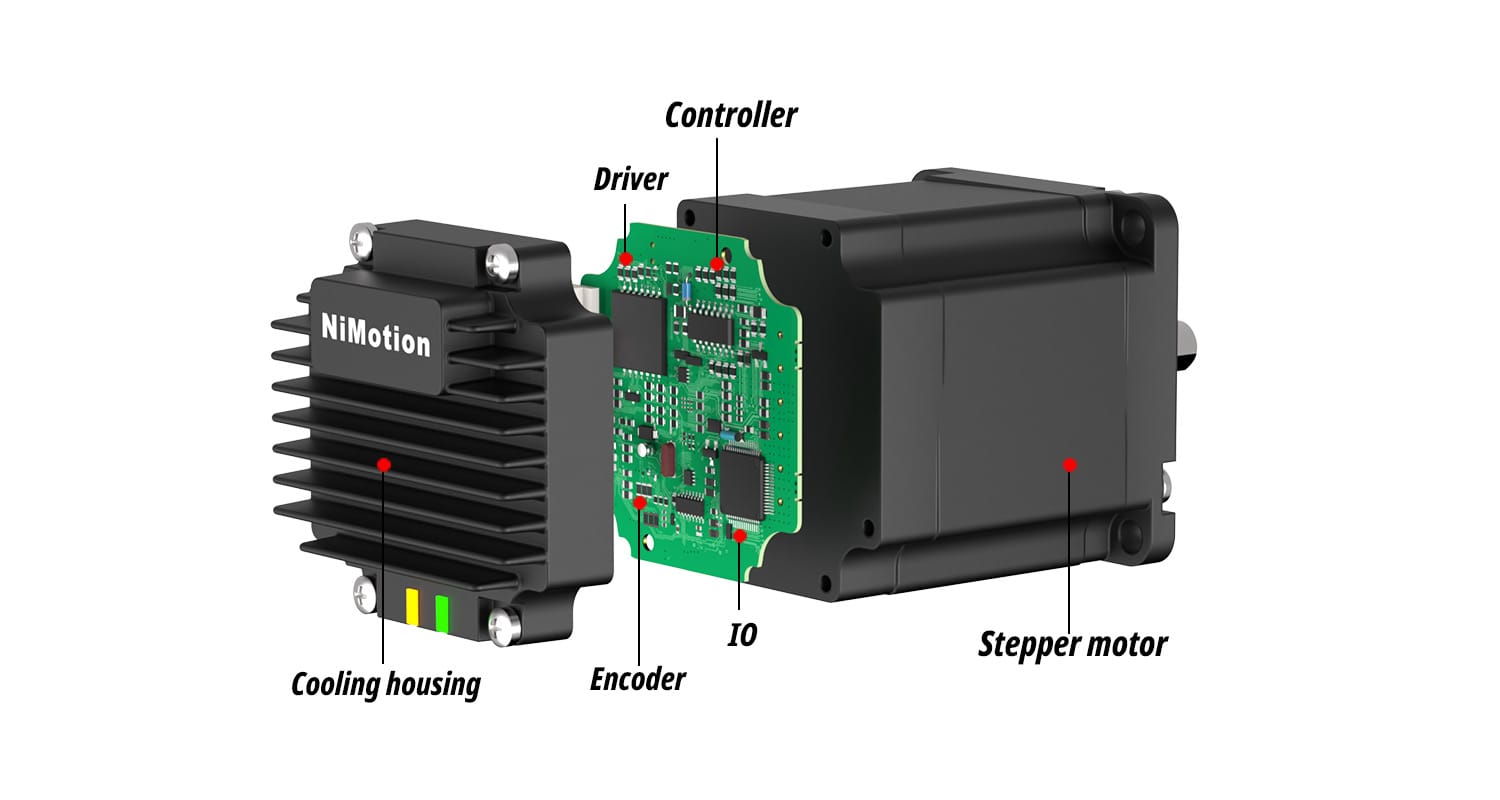

Highly integrated design
All-in-one design deeply integrating the motor body with the drive and encoder, giving a compact body, simple wiring and easier machine integration.
High Precision Encoder Feedback
Built-in 14-bit high resolution encoder provides real-time position and speed feedback for more accurate closed-loop control, ensuring smoother operation and more accurate positioning.
Multi-bus communication support
Supports CANopen and RS485 communication, allowing quick connection to mainstream PLCs, motion controllers and host systems, with flexible networking and easy expansion.
Wide Voltage Input
Wide input voltage range of 12-36 VDC, suitable for various power-supply environments and giving greater flexibility in system integration and retrofitting.
Segment can be set
1, 2, 4, 8, 16 subdivision can be set, the maximum support 256 subdivision, can effectively reduce low-speed vibration and noise, improve positioning resolution and operation stability
Complete diagnosis and protection
Comprehensive diagnostics and protection covering over-voltage, under-voltage, over-temperature, stall, overload, over-speed, over-travel and homing timeout, with current and historical alarm records for safer operation.
Overall Dimensions
Base width: 57mm, X represents the body length. Please click the "Download" section below to view detailed drawings.
Application in Peristaltic Pump Equipment
The STM57E series integrated motor upgrades peristaltic pumps from "coarse conveyance" to "precision intelligent pumping." It is particularly suitable for applications with extremely high demands on flow accuracy, tubing life, and system immunity, such as IVD reagent dispensing, biopharmaceutical filling, and continuous feeding in culture processes. If you need a detailed comparison of energy efficiency differences between closed-loop stepper and AC servo motors in this application, I can provide further analysis.
