NGM12

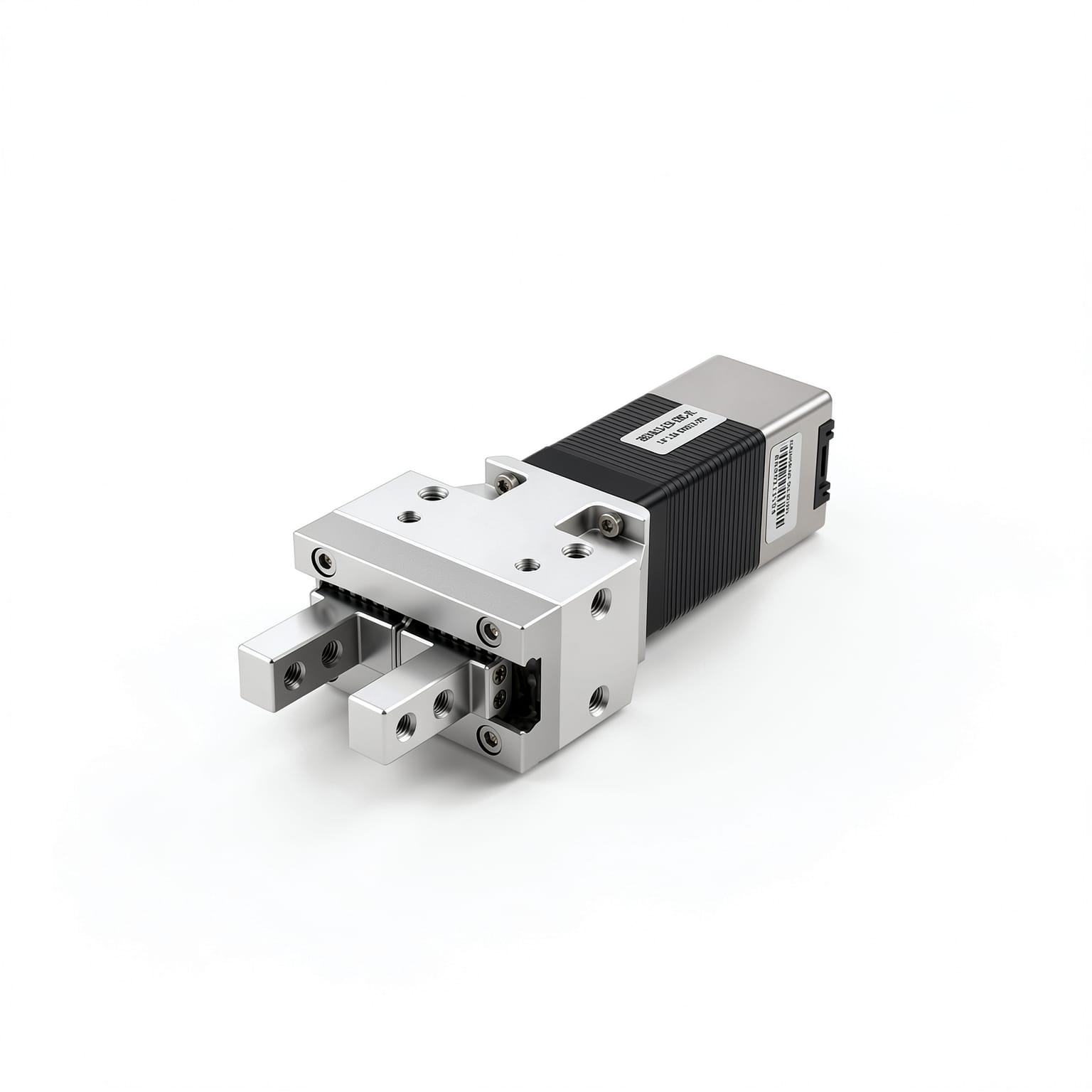

NGM12 Series Compact Electric Gripper

Compact electric gripper with STM28M stepper servo, supports MODBUS RTU or CANopen.

Features

Small footprint
High clamping force (40N)
Lead screw transmission
Bus control

Models & Specifications

Specs as rows · Models as columns

Specifications	NGM1240
Communication Method	CANopen/RS485
Total Stroke	12mm
Gripping Force	40N
Rated Voltage	24V
Rated Current	1A
Body Length	128×51×28mm

* Scroll horizontally within the table area when the content is wide.

Specifications

Unidirectional Stroke Time	0.2s
Repeat Positioning Accuracy	-
Backlash	-
Transmission Mode	Lead screw + gripper jaws
Gripper Allowable Load Torque	MX:0.9Nm, MY:1.5Nm, MZ:0.9Nm
Input Power Voltage Range	16-30V
Operating Temperature	0℃~40℃
Operating Altitude	<1000m
Special Features	Fault diagnosis, fault reset, soft limit, parameter identification, online upgrade
DI (Digital Input)	Quantity: 3; NPN input; Logic 1 signal: 5–24VDC input; Logic 0 signal: 0–2VDC input; Configurable function: Can be used as motion control signals.
DO (Digital Output)	Quantity: 2; Output method: open-drain output; Maximum current: 100mA; Maximum voltage: 30VDC; Configurable functions: 1. General DO port; 2. Motor run/stop; 3. Target reached; 4. Alarm output (when the motor status meets the above conditions, the DO switching state changes).

Downloads

Name	Type	Size	Update Date
NiMotion Robot Gripper Selection Guide	Selection Guide	9.2MB	2026-08-25
ngm1240-integrated-electric-gripper-User Manual	User Manual	11.6MB	2026-08-14
Communication Manual – pmm60l/blm/stm-modbus	Communication Manual	4.0MB	2026-08-27
Communication Manual – pmm60l/blm/stm-CANopen	Communication Manual	3.8MB	2026-08-27
ngm1240-l-2-a-integrated-electric-gripper-a01	Drawing	147.9KB	2026-07-28
