NIMC2400N

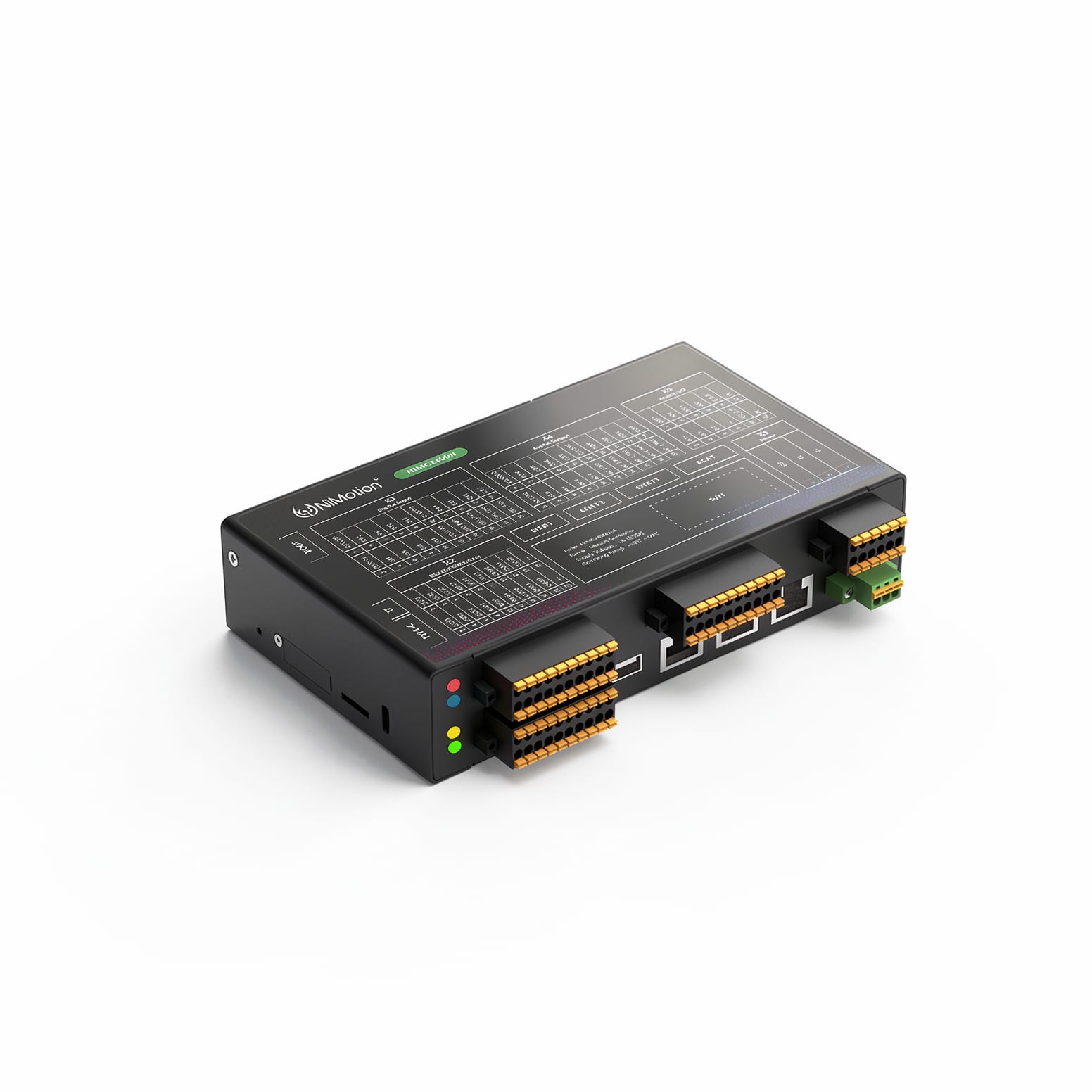

NIMC2400N High Performance Motion Controller

High-performance motion controller with powerful ARM Cortex-A55 processor.

Features

High performance
Multiple communication protocols
Local I/O

Specifications

Appearance Dimensions	172×100×39mm
Mounting Method	DIN rail mounting, screw mounting
Weight	600g
Housing Material	Galvanized cold-rolled steel coil (CGCC)
Rated Voltage	24/48VDC
Voltage Range	10-52VDC
Internal Power Consumption	24VDC rated input voltage, max power consumption 6W
Maximum Input Current	3A
Fuse	Built-in DC resettable fuse
Processor	ARM64 Cortex-A55 quad-core 512KB L3-cache 2.0GHz
Memory	2GB
Flash Memory	16GB eMMC
SD Card	Supported
Operating Temperature	-10℃~+60℃
Number Of RS232 Ports	2
Number Of RS485 Ports	2
Number Of CAN Ports	2
Number Of Ethernet Ports	3
Number Of USB Ports	1
Local IO	Supports: DI, DO, PWM channels, AI, AO
Data Retention Upon Power Failure	Supported
RTC Time	Supported

Product Details

Product Overview

The NIMC2400N series of motion controllers is equipped with a high-performance Cortex-A55 quad-core chip, clocked at 2GHz, equipped with 2GB of LPDDR4 memory and 16GB of eMMC storage, ensuring powerful data processing capabilities. The controller supports IEC61131-3 standard and is compatible with SFC, FBD, ST, LD and other programming languages, enabling flexible hybrid programming. The built-in motion control function library covers electronic gears, electronic cams, imaginary axes, etc., to meet high-precision control requirements. The NIMC2400N Series offers a comprehensive range of communication interfaces, including 3 Gigabit Ethernet ports (one dedicated to EtherCAT), 2 RS232, 2 Isolated RS485 and 2 Isolated can ports, enabling seamless connectivity to a wide range of industrial devices. At the same time, it supports fieldbus protocols such as EtherCAT master, CANopen master, Profinet slave, ModbusRTU master-slave, ModbusTCP master-slave, etc., which enhances its applicability in industrial environments. The ability to multitask allows tasks to run on specified CPU cores, optimizing system resources and improving response speed and stability. The NIMC2400N series is ideal for smart manufacturing because of its high performance and flexibility.

Product Features

Powered by an industrial-grade quad-core chip
Efficient interconnection of multiple communication interfaces

Multi-bus communication support

Supports EtherCAT, RS485, RS232 and CAN communication, allowing quick connection to mainstream PLCs, motion controllers and host systems, with flexible networking and easy expansion.

Wide Voltage Input

Wide input voltage range of 24/48VDC(10~52VDC)内部功耗：24VDC, suitable for various power-supply environments and giving greater flexibility in system integration and retrofitting.

High-performance processing platform

Based on ARM64 Cortex-A55四核512KB处理器，配置2GB内存与16GB eMMC闪存, it delivers excellent data processing and real-time control capability for multi-axis coordination and complex logic operations.

Compact body design

Compact body of only 172×100×39mm 172×100×25mm can be installed close to the machine, saving valuable space in the control cabinet.

Power-off data retention

Supports power-loss data retention and an RTC real-time clock, so key parameters, operation records and time information are not lost when power is removed.

Wide temperature work design

Operating temperature range of 0℃~+55℃ with an even wider storage temperature range, suitable for high- and low-temperature industrial environments.

Downloads

Name	Type	Size	Update Date
NiMotion Motion Controller Selection Guide	Selection Guide	26.6MB	2026-10-14
NIMC2400N Motion Controller – User Manual	User Manual	3.7MB	2026-08-31
nimc2400n-motion-controller	Drawing	616.8KB	2026-07-28
