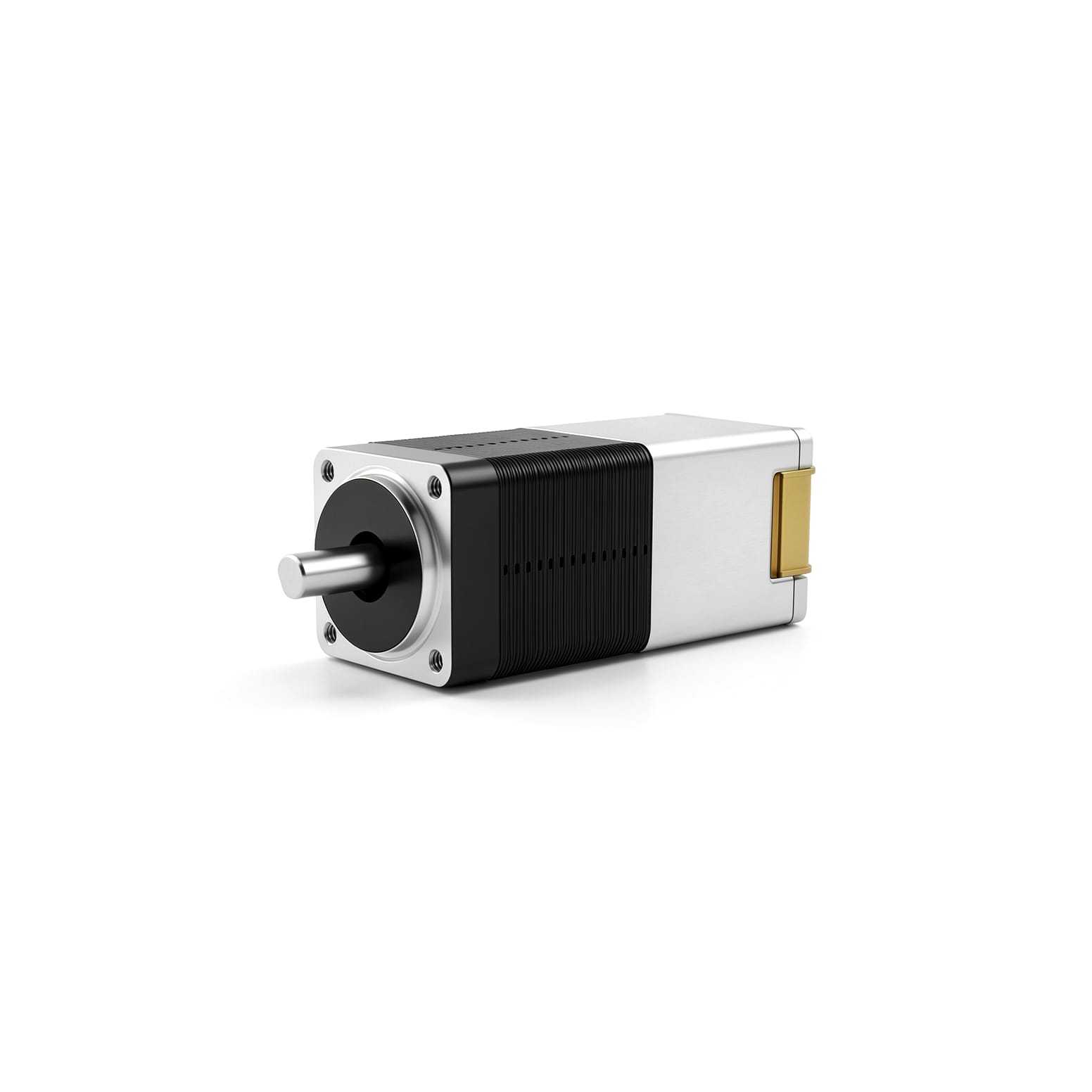

Models & Specifications
| Specifications | STM2033B-485-M-0FS | STM2033B-CANopen-M-0FS | STM2038B-485-M-0FS | STM2038B-CANopen-M-0FS | STM2048B-485-M-0FS | STM2048B-CANopen-M-0FS |
|---|---|---|---|---|---|---|
| Flange Size | 20mm | 20mm | 20mm | 20mm | 20mm | 20mm |
| Holding Torque | 0.018 N·m | 0.018 N·m | 0.038 N·m | 0.038 N·m | 0.045 N·m | 0.045 N·m |
| Brake | No Brake | No Brake | No Brake | No Brake | No Brake | No Brake |
| Encoder type | 17-bit single-turn absolute magnetic encoder | 17-bit single-turn absolute magnetic encoder | 17-bit single-turn absolute magnetic encoderr | 17-bit single-turn absolute magnetic encoderr | 17-bit single-turn absolute magnetic encoder | 17-bit single-turn absolute magnetic encoder |
| Rated Voltage | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 24 VDC |
| Voltage Range | 12-30VDC | 12-30VDC | 12-30VDC | 12-30VDC | 12-30VDC | 12-30VDC |
| Inertia | 2.9×10⁻⁷ kg·m² | 2.9×10⁻⁷ kg·m² | 3.3×10⁻⁷ kg·m² | 3.3×10⁻⁷ kg·m² | 4×10⁻⁷ kg·m² | 4×10⁻⁷ kg·m² |
| Rated Current | 1.0 A | 1.0 A | 1.0 A | 1.0 A | 1.0 A | 1.0 A |
| Body Length | 48.8 mm | 48.8 mm | 53.7 mm | 53.7 mm | 63.8 mm | 63.8 mm |
| Weight | 0.073 kg | 0.073 kg | 0.083 kg | 0.083 kg | 0.113 kg | 0.113 kg |
* Scroll horizontally within the table area when the content is wide.
Specifications
| Shaft Diameter | Φ4 |
| Number Of Phases | 2 |
| Step Angle | 1.8° |
| Encoder | 17-bit single-turn absolute magnetic encoder (multi-turn absolute counting with automatic storage upon power failure) |
| Control Modes | CiA402 Mode,Manufacturer Mode |
| External Control Interface | DI – Non-isolated NPN Input,DI – Non-isolated PNP Input,DI – Non-isolated Switch Input,DI – Isolated Opto Single-Ended Input,DI – Isolated Opto Differential Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output |
| CiA402 Mode | PP, VM, PV, PT, HM, IP, CSP, CSV, CST |
| DI (Digital Input) | Quantity: 3 pieces; The high-speed unidirectional isolated optocoupler supports PWM pulse input and PNP. High level: 5-24 Low level: 0 to 2V；Configurable functions: 1. Enable 2. Positive and negative limits 3. Origin switches 4. Alarm reset 5. Pause 6. Switch between multiple operation instructions |
| DO (Digital Output) | Quantity: 1; Output methods: MOS open-drain output, NPN; The maximum current of the DO load is 100mA and the maximum voltage is 30V；Configurable functions: 1. Regular DO; 2. The motor stops running; 3. Goal achieved; 4. Alarm output |
| AI (Analog Input) | - |
| Operating Temperature | 0°C to 40°C |
| Operating Altitude | <1000m |
| Fault Alarm | Overvoltage, undervoltage, overheat, locked rotor |
| Servo Function | Soft limit, gain switching, S-curve planning, vibration suppression, parameter identification, online upgrade |
Product Details
Application of fully automatic microscopes
The integrated motor is applied to the intelligent microscope, and closed-loop control eliminates the errors of "step loss" and mechanical "back clearance" of the traditional stepper motor. The integrated design significantly reduces the equipment size, and the built-in high-precision encoder ensures precise control and ensures the high reliability of experimental data, which is crucial for high-precision quantitative analysis.
Ultra-Compact Size, Powerful Performance

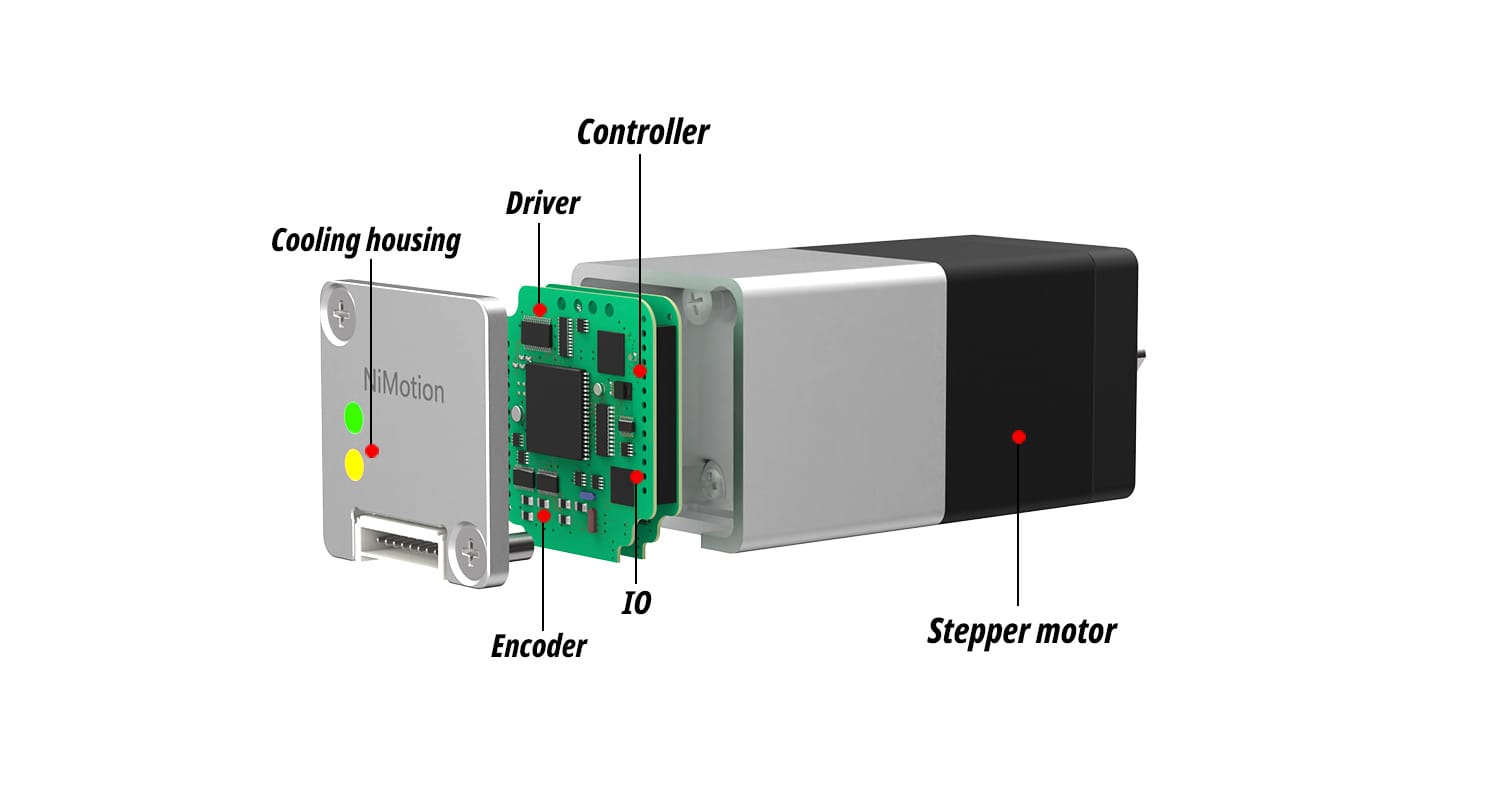

The product features a refined, compact design with a frame width of just 20mm. No external driver is required — it comes with a built-in high-precision 17-bit single-turn absolute encoder and a closed-loop control system that delivers high torque and fast response. This makes it especially suitable for various compact automation equipment such as pipetting workstations, semiconductor manufacturing, and pick-and-place machines.
Downloads
Companion Products
Integrated motor power/communication/IO bus cable.
USB to CAN converter with isolation, IP65 protection, and secondary development SDK support.
USB to RS485 converter with active termination, isolation, IP65 protection, and secondary development SDK support.
