NIMC3000

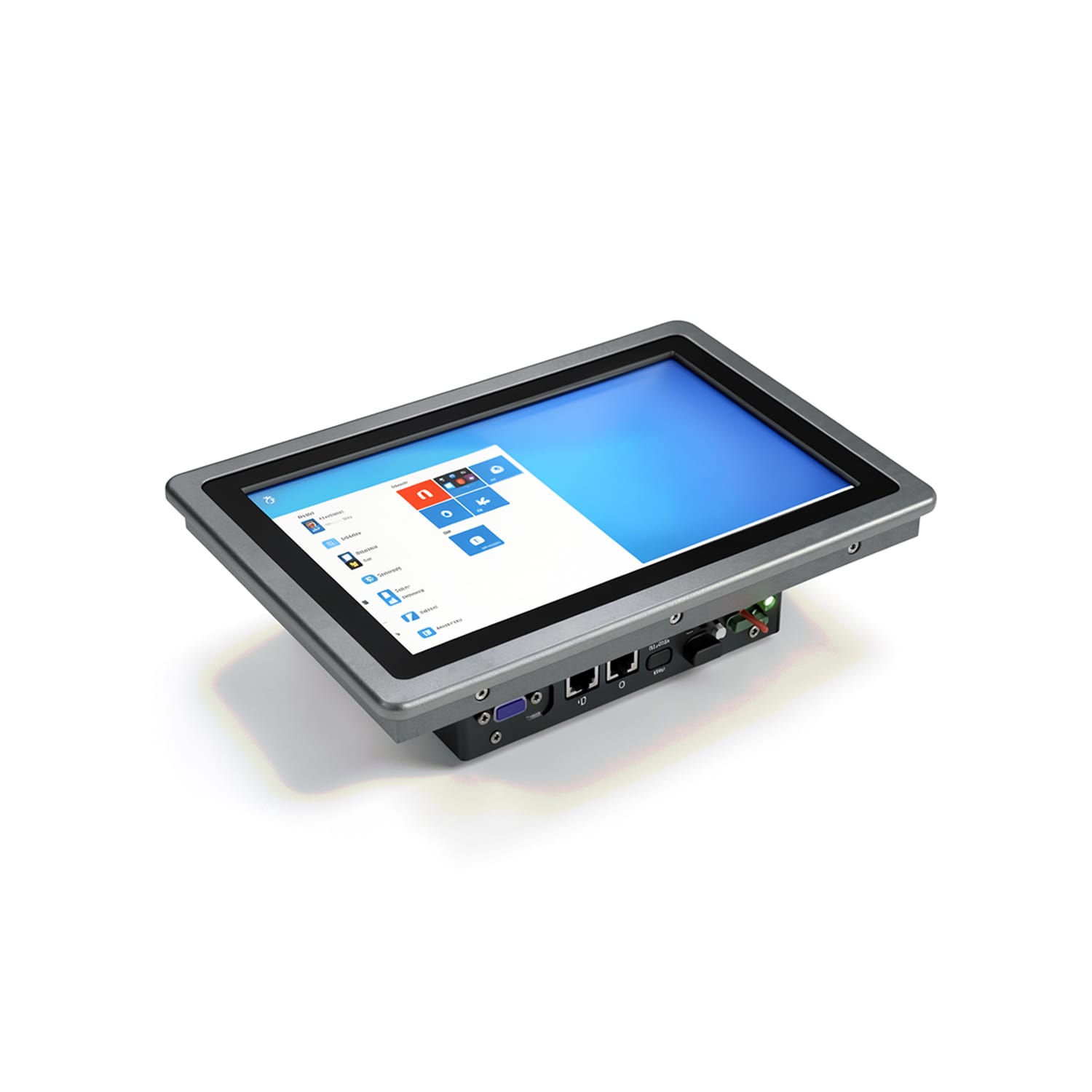

NIMC3000 Series Touchscreen All-in-One

Industrial full-flat capacitive touchscreen all-in-one, available with Intel E3845 or J1900 CPU, fanless design, industrial-grade EMI/EMS protection.

Features

10.1-inch capacitive touchscreen
Intel quad-core processor (1.91GHz or 2.00GHz)
Fanless design
Wide operating temperature range
Supports mSATA SSD (32GB-1TB)
Metal housing with EMI/EMS protection

Models & Specifications

Specs as rows · Models as columns

Specifications	NIMC3000-10W-3845	NIMC3000-10W-3845-36	NIMC3000-10W-1900	NIMC3000-10W-1900-36
Touch Screen Size	10.1 inch	10.1 inch	10.1 inch	10.1 inch
CPU	1.91GHz	1.91GHz	2.00GHz	2.00GHz
Memory	4G	4G	4G	4G
RS232 Or RS485	1	1	2	2
RS232 (Three-Wire)	3	3	3	3
USB	4	4	4	4
RJ45	2	2	2	2
Audio / HDMI / VGA	YES	YES	YES	YES
mSATA Socket	1	1	1	1
Mini PCIe Socket	1	1	1	1
Power Input	12V	9-36V	12V	9-36V
Illuminated Switch	YES	YES	YES	YES
Operating Temperature	-30°C - 70°C	-30℃~+70℃	-25℃~+60℃	-25℃~+60℃

* Scroll horizontally within the table area when the content is wide.

Product Details

Product Overview

The NIMC3000 series touchscreen all-in-one computer is an industrial full-plane capacitive touchscreen all-in-one computer that can operate safely, stably and efficiently in a variety of application environments. It supports mSATA32G-1TG electronic disk, quad-core CPU, master frequency 1.91 GHz/2.00 GHz, metal shell, and can withstand industrial-grade EMI/EMS (EN61000-6-4, 61000-6-2).

Product Features

High-performance processing platform

Based on 1.91GHz 2.00GHz处理器，配置4G内存, it delivers excellent data processing and real-time control capability for multi-axis coordination and complex logic operations.

Industrial Touch Display

Equipped with a 10.1寸 industrial touch screen combining display and operation, making on-site commissioning and status monitoring more intuitive.

Wide temperature work design

Operating temperature range of -30℃~+70℃ with an even wider storage temperature range, suitable for high- and low-temperature industrial environments.

Rich external interfaces

Provides 4个USB、2个RJ45网口、3个RS232, allowing simultaneous connection of multiple peripherals, displays and industrial networks with strong expandability.
