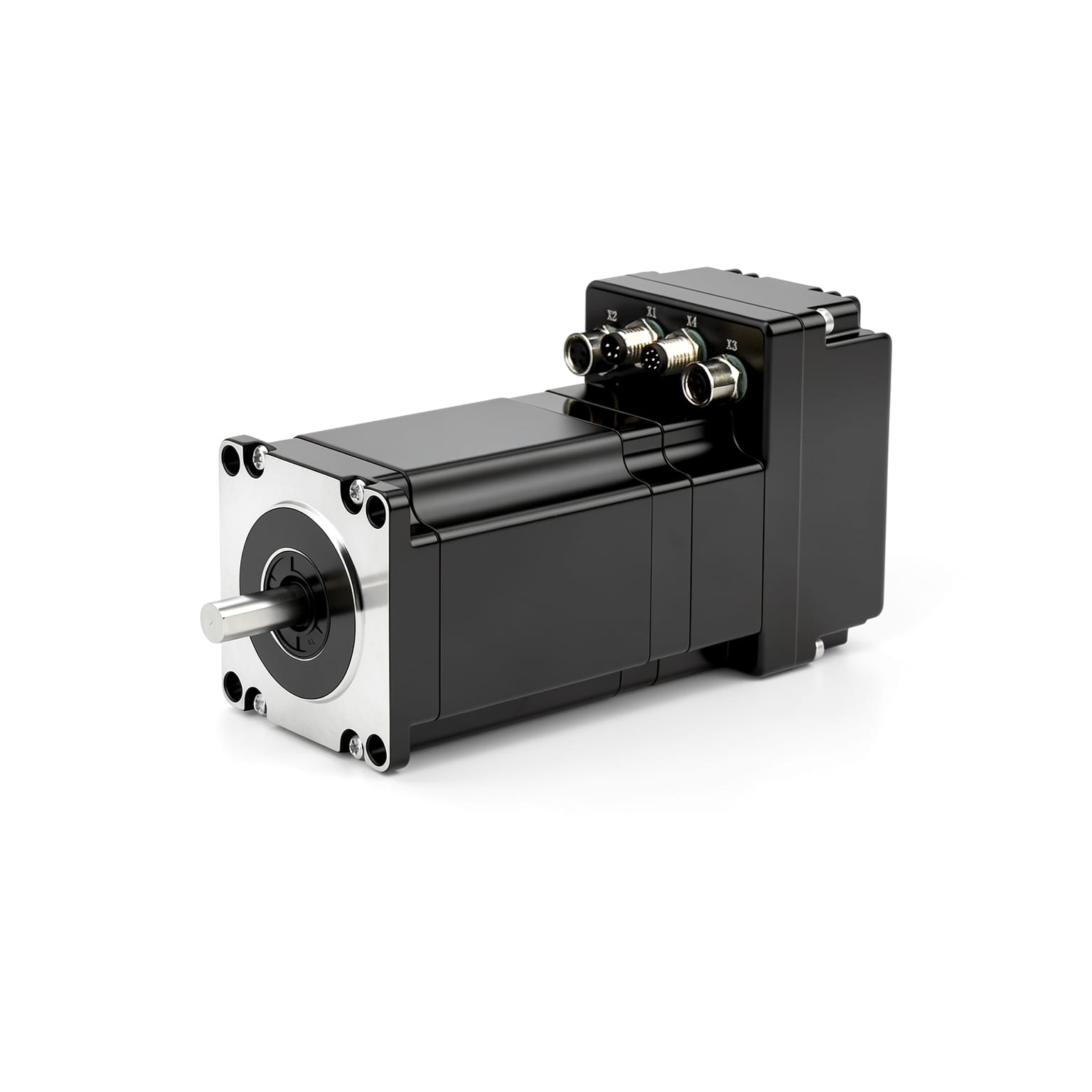

STMP57-M (With Brake) Integrated Waterproof Stepper Servo Motor

Built-in Brake w/ Logic, IP65-rated 57mm flange integrated stepper servo motor – delivers closed-loop servo control algorithms within a compact footprint, offering significantly improved positioning accuracy, low heat generation, and excellent speed stability. Ideal for a wide range of compact automation equipment.

Features

  • IP65 protection
  • EtherCAT/CANopen/RS485
  • Optional brake

Models & Specifications

Specs as rows · Models as columns
SpecificationsSTMP5756B-485-M-0FSBSTMP5756B-CANopen-M-0FSBSTMP5756B-COE-M-0FSBSTMP5756D-485-M-0FSBSTMP5756D-CANopen-M-0FSBSTMP5756D-COE-M-0FSBSTMP5776B-485-M-0FSBSTMP5776B-CANopen-M-0FSBSTMP5776B-COE-M-0FSBSTMP5776D-485-M-0FSBSTMP5776D-CANopen-M-0FSBSTMP5776D-COE-M-0FSB
Flange Size57mm57mm57mm57mm57mm57mm57mm57mm57mm57mm57mm57mm
BrakeBuilt-in Brake w/ LogicBuilt-in Brake w/ LogicBuilt-in Brake w/ LogicBuilt-in Brake w/ LogicBuilt-in Brake w/ LogicBuilt-in Brake w/ LogicBuilt-in Brake w/ LogicBuilt-in Brake w/ LogicBuilt-in Brake w/ LogicBuilt-in Brake w/ LogicBuilt-in Brake w/ LogicBuilt-in Brake w/ Logic
Encoder type17-bit single-turn absolute magnetic encoder17-bit single-turn absolute magnetic encoder17-bit single-turn absolute magnetic encoder17-bit multi-turn absolute magnetic encoder17-bit multi-turn absolute magnetic encoder17-bit multi-turn absolute magnetic encoder17-bit single-turn absolute magnetic encoder17-bit single-turn absolute magnetic encoder17-bit single-turn absolute magnetic encoder17-bit multi-turn absolute magnetic encoder17-bit multi-turn absolute magnetic encoder17-bit multi-turn absolute magnetic encoder
Rated Voltage48 VDC48 VDC48 VDC48 VDC48 VDC48 VDC48 VDC48 VDC48 VDC48 VDC48 VDC48 VDC
Voltage Range16-52VDC16-52VDC16-52VDC16-52VDC16-52VDC16-52VDC16-52VDC16-52VDC16-52VDC16-52VDC16-52VDC16-52VDC
Protection LevelIP65IP65IP65IP65IP65IP65IP65IP65IP65IP65IP65IP65
Rated Current3.0 A3.0 A3.0 A3.0 A3.0 A3.0 A4.2 A4.2 A4.2 A4.2 A4.2 A4.2 A
Body Length111.5 mm111.5 mm111.5 mm111.5 mm111.5 mm111.5 mm131.5 mm131.5 mm131.5 mm131.5 mm131.5 mm131.5 mm
Weight1.18 kg1.18 kg1.18 kg1.18 kg1.18 kg1.18 kg1.54 kg1.54 kg1.54 kg1.54 kg1.54 kg1.54 kg

* Scroll horizontally within the table area when the content is wide.

Specifications

Shaft DiameterΦ8
Number Of Phases2
Step Angle1.8°
EncoderB: 17-bit single-turn absolute magnetic encoder D: 17-bit multi-turn absolute magnetic encoder
Control ModesCiA402 Mode,Manufacturer Mode
External Control InterfaceDI – Non-isolated NPN Input,DI – Non-isolated PNP Input,DI – Non-isolated Switch Input,DI – Isolated Opto Single-Ended Input,DI – Isolated Opto Differential Input
CiA402 ModePP, VM, PV, PT, HM, IP, CSP, CSV, CST
DI (Digital Input)EtherCAT communication: Quantity: 3; Non-isolated; Supports NPN and PNP; High level: 5–24V, low level: 0–0.5V; Maximum current: 8.3mA at 24V; Configurable function: Can be used as a switch. CANopen and RS485 communication: Quantity: 3; Bidirectional high-speed isolated inputs support NPN, PNP, and push-pull input (sensors); High level: 12–24V, low level: 0–0.5V; Maximum current: 8.5mA at 24V; Configurable functions: Can be used as a switch or as a pulse input channel.
DO (Digital Output)EtherCAT communication: Quantity: 2; Output method: open-drain output; DO maximum load current: 500mA, maximum voltage: 52V. CANopen and RS485 communication (customizable): Quantity: 1; Output method: open-drain output; DO maximum load current: 500mA, maximum voltage: 52V.
AI (Analog Input)Quantity: 1; Input method: single-ended input; Signal type: voltage signal; Resolution: 12-bit; Voltage: 0~10V; Accuracy: reference error ≤1%; Configurable functions: dead zone, filtering, offset, scaling, direction.
Operating Temperature0°C to 40°C
Operating Altitude<1000m
Fault AlarmOvervoltage, undervoltage, overtemperature, locked rotor
Servo FunctionSoft limit, gain switching, S-curve planning, vibration suppression, parameter identification, online upgrade

Torque-Speed Characteristics

STMP5756X-XX-B

STMP5776X-XX-B

Product Details

STMP57 Integrated Stepper Servo Motor (with Brake) Structural Diagram

The STMP57 series integrated waterproof stepper servo motor is a highly integrated integrated permanent magnet synchronous motor developed by NiMotion, with 17-bit single-turn/multi-turn absolute encoder, IP65 protection level, controller and digital I/O. It is suitable for all kinds of equipment in harsh environments and water-related application scenarios. Support EtherCAT, RS485, CANopen bus communication.


Product Features

  • Voltage range (VDC) Rated voltage (VDC) Rated current (A) Partial model Step angle (°) Fuselage length X (mm) Shaft diameter holding torque

  • IP65 protection class

  • (Optional) Built-in 17-bit single-turn/multi-turn absolute encoder

  • EtherCAT Version

Highly integrated design

Integrates Stepper Motors, Single/Multi-turn Absolute Encoders, Drives and Digital IO into a single compact unit, so no external drive is required. Compared with conventional separated solutions it saves considerable installation space, needs less wiring, and makes commissioning and maintenance easier.

Advanced Drive Algorithm

Adopts FOC (field-oriented control) and SVPWM for smooth torque output, excellent low-speed performance and lower operating noise and vibration.

High Precision Encoder Feedback

Built-in B: 17-bit single-cycle absolute encoder/D: 17-bit multi-cycle absolute encoder provides real-time position and speed feedback for more accurate closed-loop control; multi-turn absolute counting and automatic position storage on power loss mean no re-homing is needed after power-up.

Multi-bus communication support

Supports EtherCAT, CANopen and RS485 communication, allowing quick connection to mainstream PLCs, motion controllers and host systems, with flexible networking and easy expansion.

Standard CiA 402 Sport Mode

Supports CiA 402 standard motion modes (PP, PV, HM, CSP, CSV, etc.) as well as position mode, velocity mode and torque mode, ensuring compatibility with mainstream fieldbus motion-control architectures and making replacement and commissioning easier.

Wide Voltage Input

Wide input voltage range of 16-52 VDC, suitable for various power-supply environments and giving greater flexibility in system integration and retrofitting.


Overall dimensions

STMP57 Integrated Stepper Servo Motor (with Brake) Dimensional Drawing

Base width: 57mm; "X" represents the body length. Please click the "Downloads" section below to view detailed drawings.

Downloads

NameTypeSizeUpdate DateDownload
NiMotion Integrated Motor Selection Guide
Selection Guide58.5MB2026-10-14
stmp57xxb-xx-m-0fs-integrated-stepper-motor-rear-cable
Drawing203.2KB2026-07-28
Communication Manual – pmm60l/blm/stm-modbus
Communication Manual4.0MB2026-08-27
Motor Tuning Software – General Purpose
Software84.5MB2026-08-27
STMP57M-brake-series-CANopen-RS485-User Manual
User Manual7.4MB2026-10-13
stmp-w-57xx-xxx-m-0fsb-integrated-brake-servo-stepper-motor
Drawing170.6KB2026-07-28
Communication Manual – pmm60l/blm/stm-CANopen
Communication Manual3.8MB2026-08-27
STMP57M-series-CANopen-RS485-User Manual
User Manual2.0MB2026-10-13
STMP57M-series-EtherCAT-User Manual
User Manual7.2MB2026-10-13
stmp57xx-xxx-m-0fs-integrated-servo-stepper-motor
Drawing169.6KB2026-07-28

Companion Products

VDDX003PL Power Cable
Power CableVDDX003PL Power Cable

Power cable for NiMotion integrated motors.

View Details
VDCX003PL Communication Cable
Communication CableVDCX003PL Communication Cable

Communication cable for NiMotion integrated motors.

View Details
VDCX005PL Communication Cable
Communication CableVDCX005PL Communication Cable

Communication cable for NiMotion integrated motors.

View Details
VDCX008PL Communication Cable
Communication CableVDCX008PL Communication Cable

Communication cable for NiMotion integrated motors.

View Details
VDCX009PL Communication Cable
Communication CableVDCX009PL Communication Cable

Communication cable for NiMotion integrated motors.

View Details
VDIX007PL IO Cable
I/O CableVDIX007PL IO Cable

IO cable for NiMotion integrated motors.

View Details
VDIX007PL-BAT IO Cable
I/O CableVDIX007PL-BAT IO Cable

IO cable for NiMotion integrated motors.

View Details
VDCX010P Communication Cable
Communication CableVDCX010P Communication Cable

Communication cable for NiMotion integrated motors.

View Details

FAQ

The positional accuracy of a stepper motor is about 3‑5% of the step angle, and it does not accumulate errors.

Microstepping is essentially an electronic damping technique, primarily designed to reduce or eliminate low‑frequency vibration. Improved positional resolution is a secondary benefit. Different manufacturers’ microstepping drivers can vary greatly in accuracy, and higher microstepping numbers are harder to control precisely.

This is due to the motor’s pull‑in rate – the maximum pulse frequency at which it can start from standstill without losing steps. If the pulse frequency exceeds this rate, the motor cannot start properly and may lose steps or stall. The solution is to use an acceleration ramp: start at a low frequency and gradually increase to the target high frequency. Integrated stepper motors allow you to set acceleration and deceleration parameters freely.

When the motor rotates, the inductance in each phase winding generates a back‑EMF. The higher the frequency, the greater the back‑EMF, which reduces the phase current and thus lowers the torque.

Excessive temperature can demagnetise the magnetic material, reducing torque and causing step loss. The demagnetisation point is generally above 130°C, some up to 200°C. Therefore, a surface temperature of 80‑90°C is perfectly normal for a stepper motor. The most common insulation class is Class B, with a rated operating temperature up to 130°C.
