STMPW57

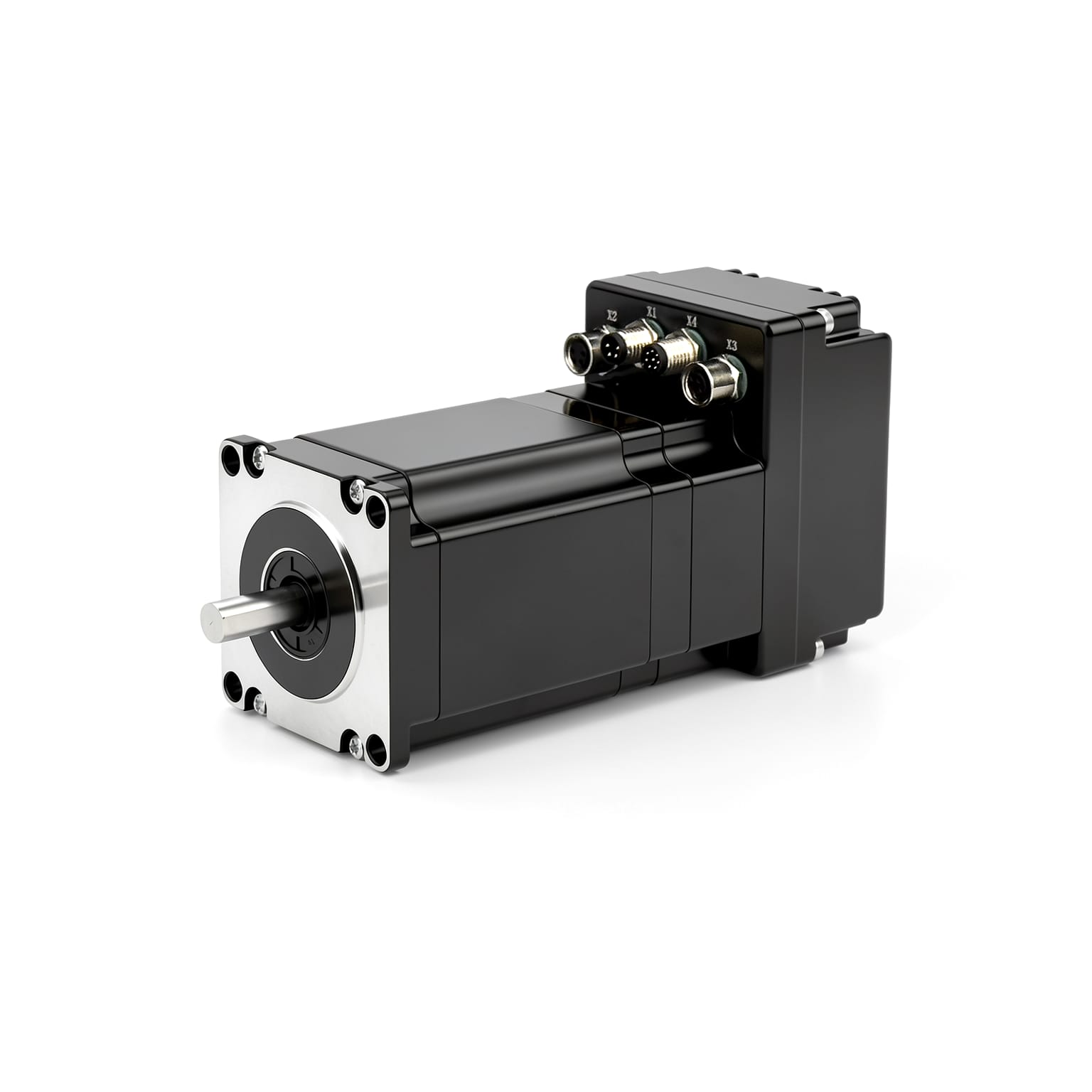

STMPW57-M Integrated Wide-Temperature Stepper Servo Motor

IP65-rated, wide-temperature 57mm flange integrated stepper servo motor – delivers closed-loop servo control algorithms within a compact footprint, offering significantly improved positioning accuracy, low heat generation, and excellent speed stability. Ideal for a wide range of compact automation equipment.

Features

IP65 protection
Wide temperature range (-40°C to +75°C)
CANopen/RS485
Optional brake

CANopen RS485 Pulse 57mm

Models & Specifications

Specs as rows · Models as columns

Specifications	STMPW5756B-485-M-0FS	STMPW5756B-CANopen-M-0FS	STMPW5776B-485-M-0FS	STMPW5776B-CANopen-M-0FS	STMPW5756B-485-M-0FSB	STMPW5756B-CANopen-M-0FSB	STMPW5776B-485-M-0FSB	STMPW5776B-CANopen-M-0FSB
Flange Size	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm
Holding Torque	1.2 N·m	1.2 N·m	1.8 N·m	1.8 N·m	1.2 N·m	1.2 N·m	1.8 N·m	1.8 N·m
Brake	No Brake	No Brake	No Brake	No Brake	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic
Encoder type	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder
Rated Voltage	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC
Voltage Range	16-72VDC	16-72VDC	16-72VDC	16-72VDC	16-72VDC	16-72VDC	16-72VDC	16-72VDC
Protection Level	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65
Rated Current	3.0 A	3.0 A	4.2 A	4.2 A	3.0 A	3.0 A	4.2 A	4.2 A
Body Length	81.5 mm	81.5 mm	102 mm	102 mm	111.5 mm	111.5 mm	131.5 mm	131.5 mm
Weight	0.86 kg	0.86 kg	1.22 kg	1.22 kg	1.18 kg	1.18 kg	1.54 kg	1.54 kg

* Scroll horizontally within the table area when the content is wide.

Specifications

Shaft Diameter	Φ8
Number Of Phases	2
Step Angle	1.8°
Encoder	17-bit multi-turn absolute magnetic encoder(multi-turn absolute counting with automatic storage upon power failure)
Control Modes	CiA402 Mode,Manufacturer Mode
External Control Interface	DI – Non-isolated NPN Input,DI – Non-isolated PNP Input,DI – Non-isolated Switch Input,DI – Isolated Opto Single-Ended Input,DI – Isolated Opto Differential Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output,AI – 0–10V Analog Input,AI – ±10V Analog Input
CiA402 Mode	PP, VM, PV, PT, HM, IP, CSP, CSV, CST
DI (Digital Input)	Quantity: 3; Bidirectional high-speed isolated inputs: supports NPN, PNP, and push-pull input (sensors); High level: 12–24V, low level: 0–0.5V; Maximum current: 8.5mA at 24V; Configurable functions: Can be used as a switch or as a pulse input channel.
DO (Digital Output)	None (customizable upon request)
AI (Analog Input)	None (customizable upon request)
Operating Temperature	-40°C to 75°C
Operating Altitude	<1000m
Fault Alarm	Overvoltage, undervoltage, overtemperature, locked rotor
Servo Function	Soft limit, gain switching, S-curve planning, vibration suppression, parameter identification, online upgrade

Product Details

Application in Solar Photovoltaic Tracking Bracket Equipment

The STMPW57 series motor is an IP65-rated stepper motor that supports wide-temperature operation, specifically designed for outdoor or harsh industrial environments with extreme temperatures (-40°C to +75°C), high dust, high humidity, and strong chemical corrosion. Featuring a built-in driver, controller, and encoder, it offers a compact design that eliminates the need for external driver components while delivering high torque. It converts rotary motion into linear displacement of push rods or worktables.

Downloads

Name	Type	Size	Update Date
NiMotion Integrated Motor Selection Guide	Selection Guide	12.8MB	2026-08-25
Communication Manual – pmm60l/blm/stm-modbus	Communication Manual	4.0MB	2026-08-27
Motor Tuning Software – General Purpose	Software	84.5MB	2026-08-27
Communication Manual – pmm60l/blm/stm-CANopen	Communication Manual	3.8MB	2026-08-27
stmpw57m-series-canopen-rs485-User Manual	User Manual	2.7MB	2026-08-17
stmpw57xx-xxx-m-0fs-integrated-servo-stepper-motor	Drawing	169.8KB	2026-07-28
