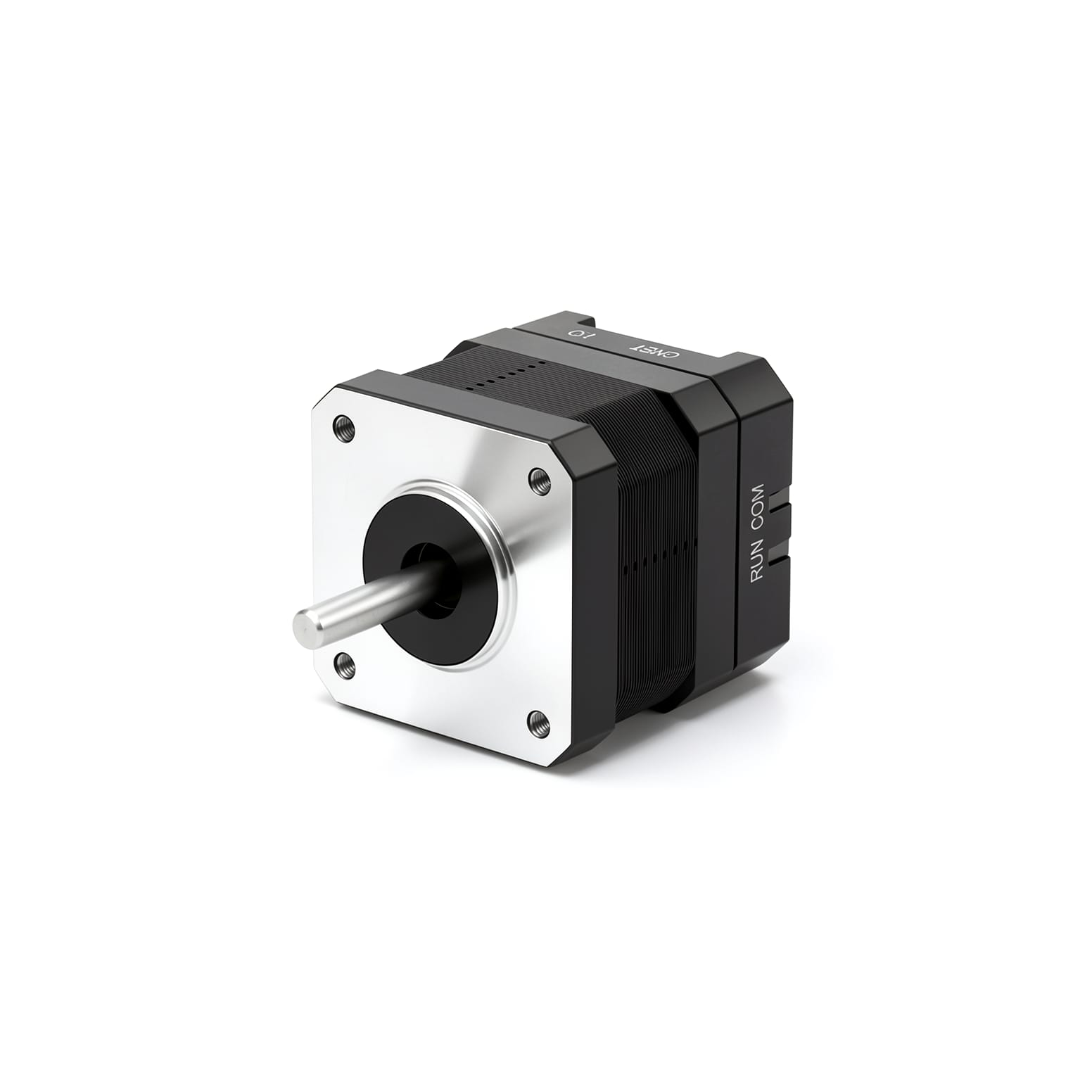

STM42-M Integrated Stepper Servo Motor

42mm flange integrated stepper servo motor – delivering closed-loop servo control algorithms within a compact footprint. Offers significantly improved positioning accuracy, low heat generation, and excellent speed stability. Ideal for a wide range of compact automation equipment.

Features

CANopen/RS485
Built-in absolute magnetic encoder
Optional brake models available

Pulse RS485 CANopen 42mm

Models & Specifications

Specs as rows · Models as columns

Specifications	STM4234B-485-M-0FS	STM4234B-CANopen-M-0FS	STM4240B-485-M-0FS	STM4240B-CANopen-M-0FS	STM4248B-485-M-0FS	STM4248B-CANopen-M-0FS	STM4260B-485-M-0FS	STM4260B-CANopen-M-0FS	STM4234B-485-M-0FSB	STM4234B-CANopen-M-0FSB	STM4240B-485-M-0FSB	STM4240B-CANopen-M-0FSB	STM4248B-485-M-0FSB	STM4248B-CANopen-M-0FSB	STM4260B-485-M-0FSB	STM4260B-CANopen-M-0FSB
Flange Size	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm
Holding Torque	0.28 N·m	0.28 N·m	0.4 N·m	0.4 N·m	0.5 N·m	0.5 N·m	0.7 N·m	0.7 N·m	0.28 N·m	0.28 N·m	0.4 N·m	0.4 N·m	0.5 N·m	0.5 N·m	0.7 N·m	0.7 N·m
Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic
Encoder type	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder
Rated Voltage	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC
Voltage Range	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC
Rated Current	1.3 A	1.3 A	1.7 A	1.7 A	1.7 A	1.7 A	2.0 A	2.0 A	1.3 A	1.3 A	1.7 A	1.7 A	1.7 A	1.7 A	2.0 A	2.0 A
Body Length	52.5 mm	52.5 mm	58.5 mm	58.5 mm	66.5 mm	66.5 mm	78.5 mm	78.5 mm	84.5 mm	84.5 mm	90.5 mm	90.5 mm	98.5 mm	98.5 mm	109.5 mm	109.5 mm
Weight	0.27 kg	0.27 kg	0.33 kg	0.33 kg	0.41 kg	0.41 kg	0.52 kg	0.52 kg	0.46 kg	0.46 kg	0.52 kg	0.52 kg	0.60 kg	0.60 kg	0.71 kg	0.71 kg
Inertia	-	-	5.4×10^-6 kg·m²	5.4×10^-6 kg·m²	6.8×10^-6 kg·m²	6.8×10^-6 kg·m²	8×10^-6 kg·m²	8×10^-6 kg·m²	3.4×10^-6 kg·m²	3.4×10^-6 kg·m²	5.4×10^-6 kg·m²	5.4×10^-6 kg·m²	6.8×10^-6 kg·m²	6.8×10^-6 kg·m²	8×10^-6 kg·m²	8×10^-6 kg·m²

* Scroll horizontally within the table area when the content is wide.

Specifications

Shaft Diameter	Φ5
Number Of Phases	2
Step Angle	1.8°
Encoder	2500-line single-turn absolute magnetic encoder
Control Modes	CiA402 Mode,Manufacturer Mode
External Control Interface	DI – Non-isolated NPN Input,DI – Non-isolated PNP Input,DI – Non-isolated Switch Input,DI – Isolated Opto Single-Ended Input,DI – Isolated Opto Differential Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output,AI – 0–10V Analog Input,AI – ±10V Analog Input
CiA402 Mode	PP, VM, PV, PT, HM, IP, CSP, CSV, CST
DI (Digital Input)	Quantity: 3, Logic 1 signal: 5V or 24V, Logic 0 signal: 0-2V ;with a maximum PWM pulse frequency of 2MHz. Configurable functions: 1. Enable 2. Positive and negative limits 3. Origin switch 4. Alarm reset 5. Pause 6. Switch between multiple operation instructions
DO (Digital Output)	Quantity: 2 units, MOS open-drain output, maximum load current 100mA, maximum voltage 30V. Configurable functions: 1. Motor run/stop 2. Target reached 3. Alarm output.
AI (Analog Input)	Quantity: 1; Input method: single-ended input; Signal type: voltage signal; Resolution: 12-bit; Voltage: 0~10V; Accuracy: reference error ≤1%; Configurable functions: dead zone, filtering, offset, scaling, direction.
Operating Temperature	0°C to 40°C
Operating Altitude	<1000m
Fault Alarm	Overvoltage, undervoltage, overheat, locked rotor
Servo Function	Soft limit, gain switching, S-curve planning, vibration suppression, parameter identification, online upgrade

Product Details

Application in AGV Equipment

This integrated stepper servo motor series is applicable to AGV drive wheels, steering actuators, lifting platforms, and fork positioning mechanisms. Its compact integrated design saves vehicle space, leaving more room for batteries and cargo. Built-in encoder enables full closed-loop control, adapting to floor irregularities and load variations. Multiple communication protocols are supported for compatibility with various navigation systems.

Downloads

Name	Type	Size	Update Date
NiMotion Integrated Motor Selection Guide	Selection Guide	12.8MB	2026-08-25
stm42m-series-canopen-rs485-User Manual	User Manual	2.6MB	2026-08-17
Communication Manual – pmm60l/blm/stm-modbus	Communication Manual	4.0MB	2026-08-27
Communication Manual – pmm60l/blm/stm-CANopen	Communication Manual	3.8MB	2026-08-27
stm42xx-m-0fsb-integrated-stepper-motor-anti-collision-structure	Drawing	332.0KB	2026-07-28
stm42xxx-m-0fsb-integrated-stepper-motor-c02-non-anti-collision	Drawing	330.7KB	2026-07-28
stm42xxx-m-0fs-integrated-stepper-motor-b01-non-anti-collision	Drawing	322.0KB	2026-07-28
stm42xxx-m-0fs-integrated-stepper-motor-b01-anti-collision-structure	Drawing	322.0KB	2026-07-28
stm42xxb-m-1zb-integrated-lead-screw-stepper-servo-motor	Drawing	154.4KB	2026-07-28
