NIMV1000-485

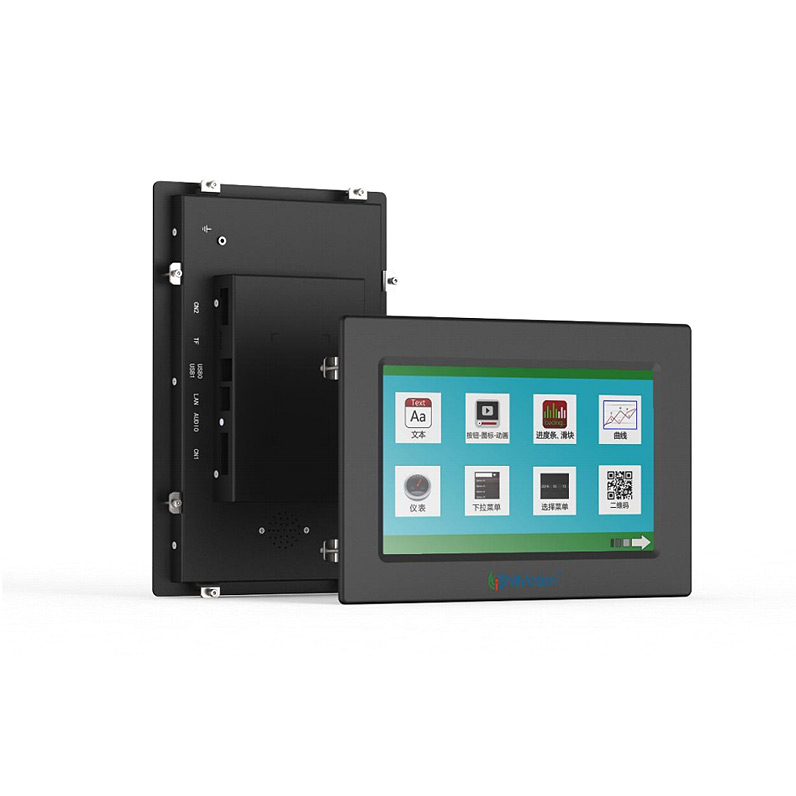

NIMV1000 Intelligent Control Panel

The NIMV1000 series intelligent control panel is a resistive touchscreen designed to control integrated stepper motors. It features simple HMI for configuring motor parameters and motion modes, with real-time monitoring.

Models & Specifications

Specs as rows · Models as columns

Specifications	NIMV1000-485-A07-A

* Scroll horizontally within the table area when the content is wide.

Specifications

Appearance Dimensions	210.0mm × 149.8mm × 24.0mm
Mounting Orientation	Supports 0°, 90°, 180°, and 270° rotated display mounting.
Resolution	800 × 480
Display Type	TFT LCD, 65K colors, 16-bit RGB
Voltage	5–40VDC
Processor	Cortex-M3 + FPGA dual-core
Operating Temperature	-20 -70°C
Certification	ROHS, CE Certification (EMI Level: EN55022 Class B)
Operating System	No OS required, runs immediately upon power-on
Host Computer Software	VisualTFT®
Storage	1Gbit
Protocol Type	MODBUS RTU
Communication Baud Rate	RS485: 1200–115200 bps, typical 9600 bps
Logic Operation	Embedded script compiler supports complex logical relationships and protocols.
Data Logging	Supports exporting data log control content to an SD card.

Product Details

Product Overview

The NIMV1000 series smart HMI panel is a resistive touch screen, which can be used to control the integrated stepper motor designed and produced by NiMotion. With its simple and friendly man-machine interface, it can realize the convenient setting of five categories of motor parameters such as general parameters, speed/acceleration, closed-loop control, homing parameters and advanced parameters, the simple control of the three motion modes of position mode, speed mode and homing mode, and the real-time monitoring and feedback of the current operating state of the motor. It is stable, reliable, functional, simple and easy to use.

Product Features

Multi-bus communication support

Supports Modbus RTU, RS485 and USB communication, allowing quick connection to mainstream PLCs, motion controllers and host systems, with flexible networking and easy expansion.

High-performance processing platform

Based on Cortex-M3 + FPGA双核架构, it delivers excellent data processing and real-time control capability for multi-axis coordination and complex logic operations.

Flexible installation

Supports 0, 90, 180 and 270 degree rotation mounted displays, adapting to different cabinet structures and on-site space requirements.

Industrial Grade Reliability

Passed vibration and ESD immunity tests, with strong anti-interference capability for reliable long-term operation in industrial environments.
