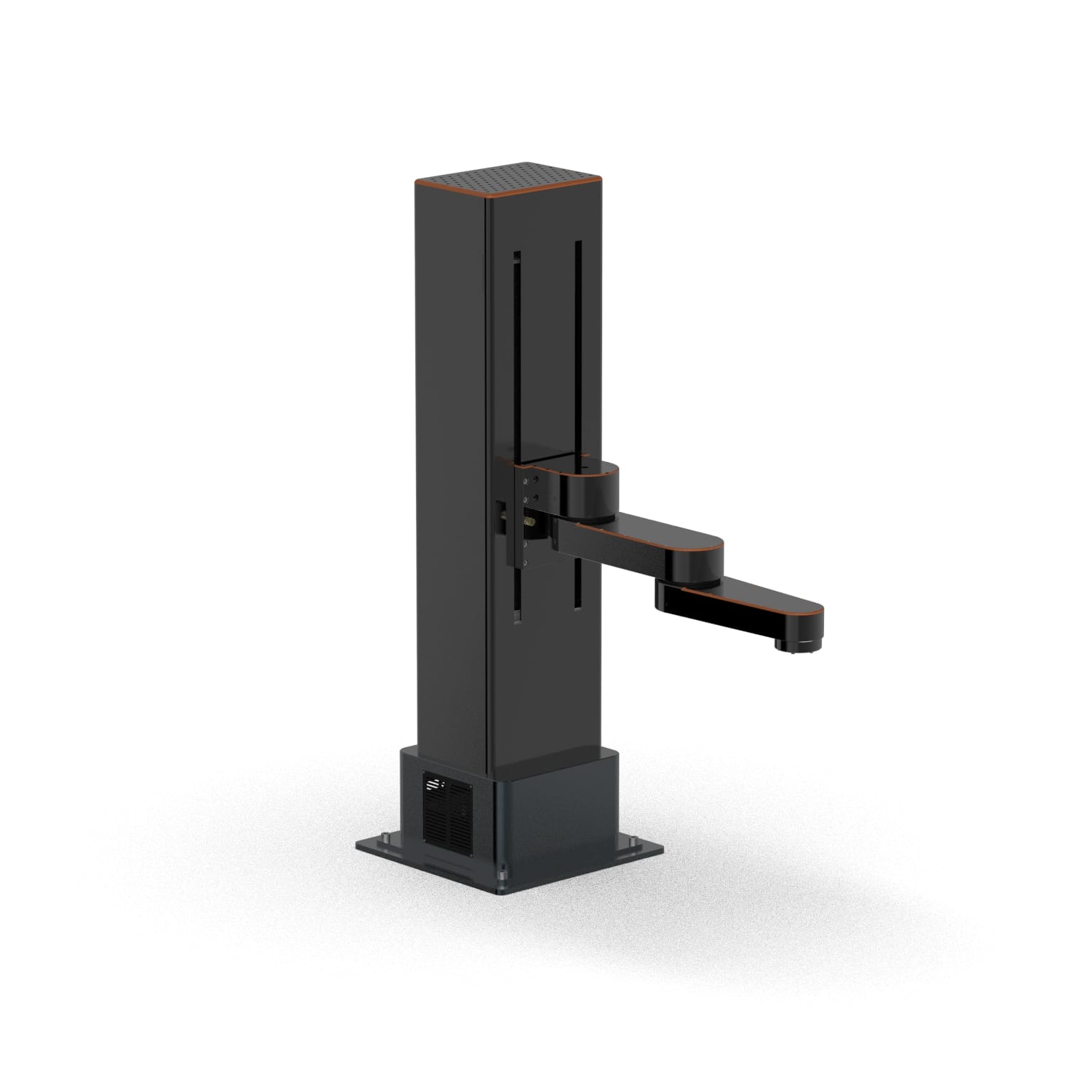

SCN2040P075

SCN Series SCARA Robot

The SR Series SCARA Robot is a high-performance, high-precision, high-speed, and highly stable SCARA robot. It integrates NiMotion's self-developed NIMC2000 series integrated controller, featuring built-in proprietary motion libraries and advanced control algorithms, enabling efficient motion control and path planning to enhance motion performance and production efficiency.

Features

High precision and high speed
Integrated NIMC2000 controller
Supports CANopen, EtherCAT, Modbus, PROFINET
Customizable Z-axis height

Specifications

Number Of Axes	4
Supply Voltage	48VDC
Communication	CANopen, EtherCAT
Arm Length Axis 1	200mm
Rotation Angle Axis 1	±90°
Arm Length Axis 2	200mm
Rotation Angle Axis 2	±130°
Z-axis Stroke	200mm
R-axis Rotation Range	±360°
Total Height	920mm
Repeat Positioning Accuracy	±1mm
Standard Payload	0.75kg
Digital I/O (DI/DO)	6-DI；2-DO

Downloads

Name	Type	Size	Update Date	Download
NiMotion Robot Gripper Selection Guide	Selection Guide	9.2MB	2026-08-25
scara-direct-drive-robot	Drawing	120.4KB	2026-08-05
