NGW2000M

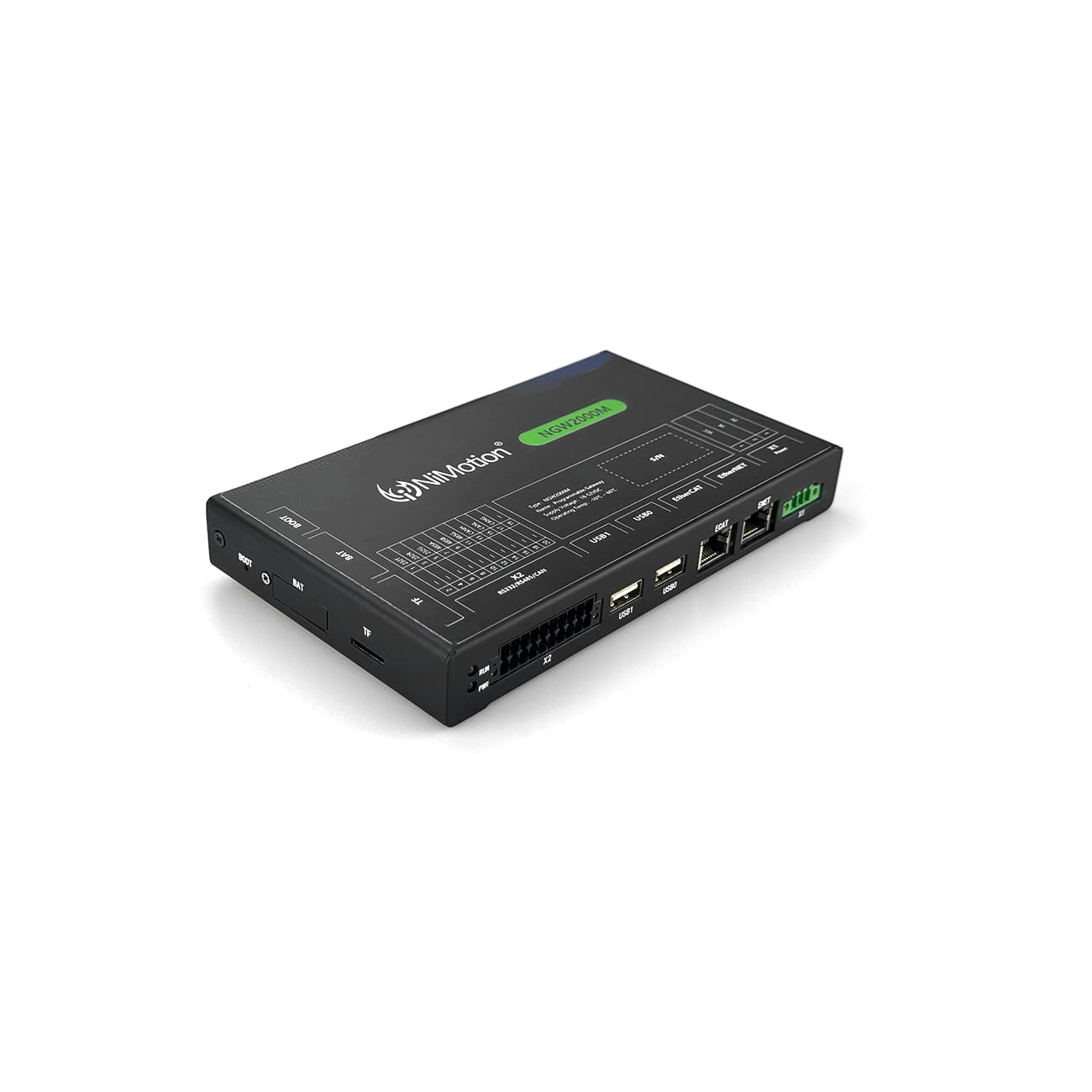

NGW2000M-C Series Programmable Gateway

NGW2000M-C Series Programmable Gateway – a versatile industrial communication hub with full-protocol interoperability, CODESYS IEC 61131-3 programming, and support for EtherCAT, Ethernet/IP, Profinet, Modbus TCP, and OPC UA.

Features

Supports CODESYS IEC 61131-3 programming
Full-protocol interoperability
Supports user programming

Models & Specifications

Specs as rows · Models as columns

Specifications	NGW2000M-C01	NGW2000M-C10
Operating system	Debian 9.1	Debian 9.1
PLC software	CodeSys V3.5	NIMCS2000
Instruction List (IL)	Supported	×
Structured Text (ST)	Supported	Supported
Ladder Diagram (LD)	Supported	Supported
Sequential Function Chart (SFC)	Supported	Supported
Function Block Diagram (FBD)	Supported	Supported
Continuous Function Chart (CFC)	Supported	×
Modbus RTU master, slave	Supported	Supported
Modbus TCP master, slave	Supported	Supported
CANopen master, slave	Supported	Only CANopen
EtherCAT master	Supported	Supported
Profinet controller, device	Supported	×
EtherNet/IP scanner, adapter	Supported	×
OPC UA server	Supported	×
OPC UA client	Supported	×
Custom serial communication protocol	Supported	×
Custom CAN communication protocol	Supported	×

* Scroll horizontally within the table area when the content is wide.

Specifications

Dimensions	172×100×25mm
Installation method	DIN rail mounting, screw mounting
Weight	450g
Enclosure material	Galvanized cold-rolled sheet (CGCC)
Rated voltage	24/48 VDC
voltage range	18-52VDC
Internal power consumption	5W maximum at 24VDC rated input voltage
Processor	ARM Cortex A8 800MHz 256KB L2 cache
Memory	512MB
Flash storage	4GB eMMC
RS232 port quantity	1 channel, non-isolated
RS485 port quantity	1 channel, isolated
CAN port quantity	1 channel, isolated
Ethernet port quantity	2
USB port quantity	2
SD card	Supported
Power-down retention	Supported
RTC time	Supported

Product Details

Product Overview

The NGW2000M-C series programmable gateway is an all-purpose industrial communication hub that supports full protocol interconnection and is compatible with most industrial protocols, completely breaking through the data barriers of industrial field equipment. The gateway has multi-protocol interchangeability, easily realizes seamless interoperability of heterogeneous networks, effectively breaks data silos, and builds a unified and efficient industrial communication network. Equipped with the powerful CODESYS programming system and compliant with the IEC61131-3 standard programming specifications, it significantly improves development efficiency and code universality. Its innovative integration of PLC functions not only enables complex protocol conversion as a high-performance gateway, but also integrates logic control and motion control, providing a flexible and reliable one-stop solution for industrial automation, helping enterprises achieve equipment interconnection and intelligent upgrading.

Product Features

PROFINET

Multi-bus communication support

Supports EtherCAT, Ethernet/IP, Profinet, Modbus and CAN communication, allowing quick connection to mainstream PLCs, motion controllers and host systems, with flexible networking and easy expansion.

Wide Voltage Input

Wide input voltage range of 24/48VDC(18~52VDC)内部功耗：24VDC, suitable for various power-supply environments and giving greater flexibility in system integration and retrofitting.

High-performance processing platform

Based on ARM Cortex A8 800MHz 256KB L2处理器，配置512MB内存与4GB eMMC闪存, it delivers excellent data processing and real-time control capability for multi-axis coordination and complex logic operations.

Compact body design

Compact body of only 172×100×25mm can be installed close to the machine, saving valuable space in the control cabinet.

Power-off data retention

Supports power-loss data retention and an RTC real-time clock, so key parameters, operation records and time information are not lost when power is removed.

Wide temperature work design

Operating temperature range of -10℃~+60℃ with an even wider storage temperature range, suitable for high- and low-temperature industrial environments.

Downloads

Name	Type	Size	Update Date
NiMotion Motion Controller Selection Guide	Selection Guide	26.6MB	2026-10-14
ngw2000m-c01-programmable-gateway-User Manual	User Manual	5.7MB	2026-08-14
ngw2000m-c-motion-controller	Drawing	547.0KB	2026-07-28
ngw2000m-c10-programmable-gateway-User Manual	User Manual	3.3MB	2026-08-14
ngw2000m-d-motion-controller	Drawing	877.9KB	2026-07-28
