NIMC2000N

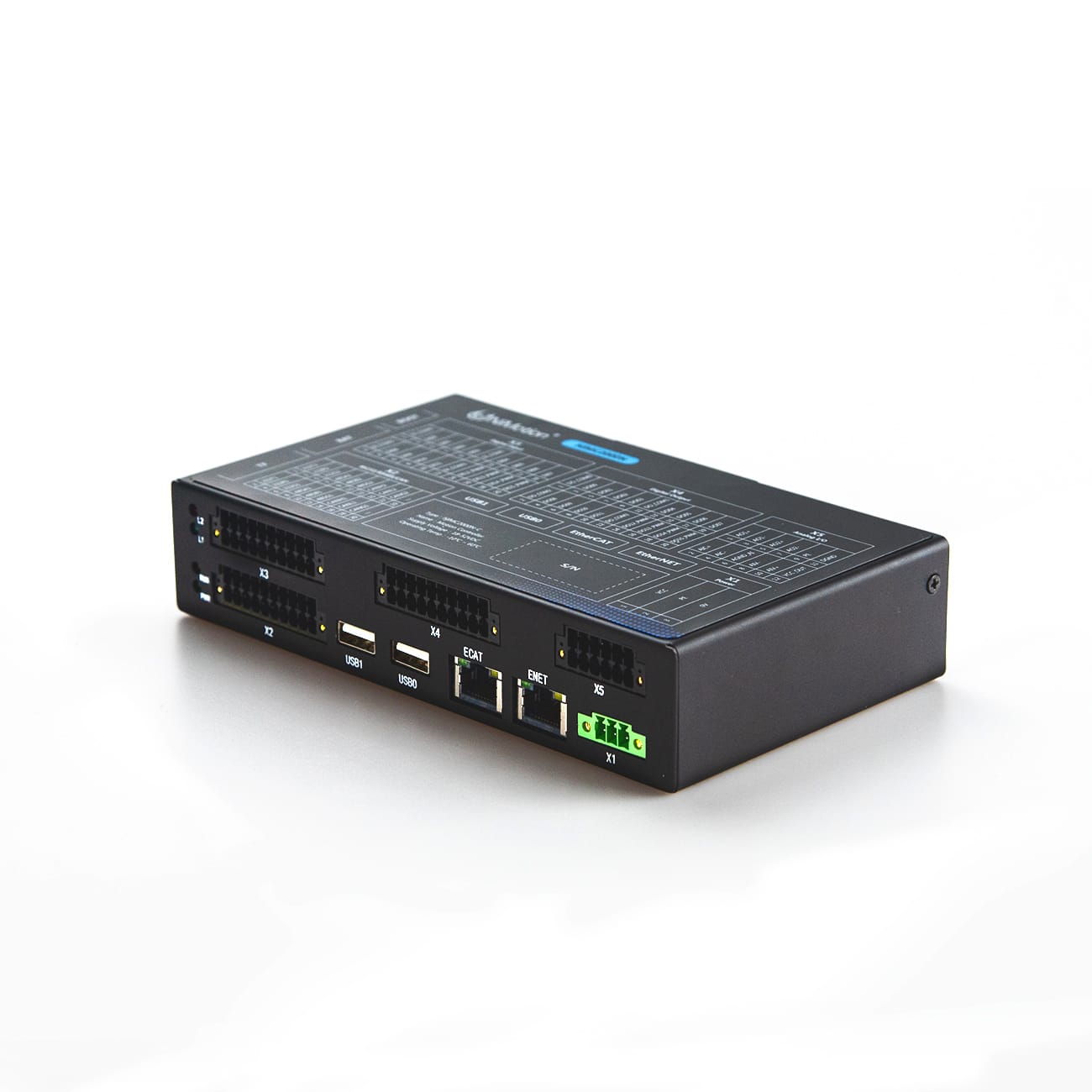

NIMC2000N-C Advanced Motion Controller

Advanced motion controller with local I/O, supports CANopen, RS485, EtherCAT.

Features

Supports multiple programming languages
Integrated motion control
Local I/O

Models & Specifications

Specs as rows · Models as columns

Specifications	NIMC2000N-C01	NIMC2000N-C02	NIMC2000N-C03	NIMC2000N-C10
System Kernel	Linux 4.9.45 RT-Preempt real-time patch	Linux 4.9.45 RT-Preempt real-time patch	Linux 4.9.45 RT-Preempt real-time patch	Linux 4.9.45+ Xenomai3实时补丁
PLC Software	CODESYS V3.5	CODESYS V3.5	CODESYS V3.5	NIMCS2000
Instruction List (IL)	Supported	Supported	Supported	×
Structured Text (ST)	Supported	Supported	Supported	Supported
Ladder Diagram (LD)	Supported	Supported	Supported	Supported
Sequential Function Chart (SFC)	Supported	Supported	Supported	Supported
Function Block Diagram (FBD)	Supported	Supported	Supported	Supported
Continuous Function Chart (CFC)	Supported	Supported	Supported	×
NiM_SML	Supported	Support	Supported	Supported
NiM_SMB	Supported	Support	Supported	Supported
NiM_Robotics	Supported	Support	Supported	×
SML_Basic	×	×	×	×
SM3_Basic	×	Support	Supported	×
SM3_Robotics	×	×	Supported	×
SM3_CNC	×	×	Supported	×

* Scroll horizontally within the table area when the content is wide.

Specifications

Appearance Dimensions	72 x 100 x 39mm
Mounting Method	Rail mounting, screw mounting
Weight	600g
Housing Material	Galvanized cold plate (CGCC)
Rated Voltage	24/48VDC
Voltage Range	18-52V
Internal Power Consumption	24VDC rated input voltage maximum power consumption 5W
Maximum Input Current	3A
Fuse	Built-in DC recoverable fuse
Processor	ARM Cortex A8 800MHz 256KB L2 cache
Memory	512MB
Flash Memory	4GB eMMC
SD Card	Support
DI	16-way; DIO ~ 11: PNP/NPN,DI12 ~ 15: NPN; photoelectric isolation
DO	Standard Series: 12-way; NPN; Photoelectric Isolation;-P Series: 12-way; PNP; Photoelectric Isolation
PWM Output	4-way; maximum output frequency 100MHz;NPN; photoelectric isolation
AI Channels	1 channel; 4 ~ 20mA current/0~10V voltage
AO Channels	2 way; 0~10V voltage
Number of RS232 Ports	2
Number of RS485 Ports	2
Number of CAN Ports	2
Number of Ethernet Ports	2
Number of USB Ports	2
Data Retention upon Power Failure	Support
Operating Temperature	-10 ℃ ~ 60 ℃
RTC (Real-Time Clock)	Support

Product Details

Product Overview

The NIMC2000N-C series controller is a high-end advanced programmable logic controller and motion controller. It adopts a single-core high-frequency chip, has strong application processing performance and high-precision real-time control capabilities, and adopts a Linux system to support conventional Linux operations. Moreover, the controller adopts the Codesys/NIMCS2000 programming system, supports the IEC61131-3 programming standard, and has the processing power and peripheral functions required for standard servo synchronous motion control, industrial robot motion control, programmable logic control. Various industrial Ethernet protocols (such as Ethercat, Ethernet/IP, Proﬁnet, ModbusTCP, OPCUA) and serial protocols (such as ModbusRTU, CANopen) are supported; the NIMC2000N-C series controller does not limit the number of motors to be connected, and can realize synchronous control of 8 CANopen motors in 4 milliseconds and synchronous control of 6 Ethercat motors in 2 milliseconds with low latency. Rich communication interface and bus protocol NIMC2000N motion controller control slide stage, turntable, electric cylinder, robot, etc.

Product Features

Support for multiple programming languages
Multiple motion control libraries
Powerful motion control
Cortex-A8 processor
Flexible scalability
Communication line/IO line
ProfiNet
Modbus
OPCUA
Simultaneous control of multiple integrated motors
Extended IO
Third-party PLCs

Multi-bus communication support

Supports EtherCAT, Ethernet/IP, Profinet, Modbus and CANopen communication, allowing quick connection to mainstream PLCs, motion controllers and host systems, with flexible networking and easy expansion.

Wide Voltage Input

Wide input voltage range of 24/48VDC(18~52VDC)内部功耗：24VDC, suitable for various power-supply environments and giving greater flexibility in system integration and retrofitting.

High-performance processing platform

Based on ARM Cortex A8 800MHz 256KB L2处理器，配置512MB内存与4GB eMMC闪存, it delivers excellent data processing and real-time control capability for multi-axis coordination and complex logic operations.

Compact body design

Compact body of only 172×100×39mm can be installed close to the machine, saving valuable space in the control cabinet.

Power-off data retention

Supports power-loss data retention and an RTC real-time clock, so key parameters, operation records and time information are not lost when power is removed.

Standard programming platform

Based on CODESYS programming platform, complies with IEC 61131-3 and PLCopen standards, supports PLC language secondary development, and has high engineering reusability

Downloads

Name	Type	Size	Update Date
NiMotion Motion Controller Selection Guide	Selection Guide	26.6MB	2026-10-14
nimc2000n-c-nimc2000n-d-motion-controller	Drawing	1.7MB	2026-07-28
NIMC2000N-C-motion-controller-User Manual	User Manual	6.6MB	2026-10-13
