NIMC2000N

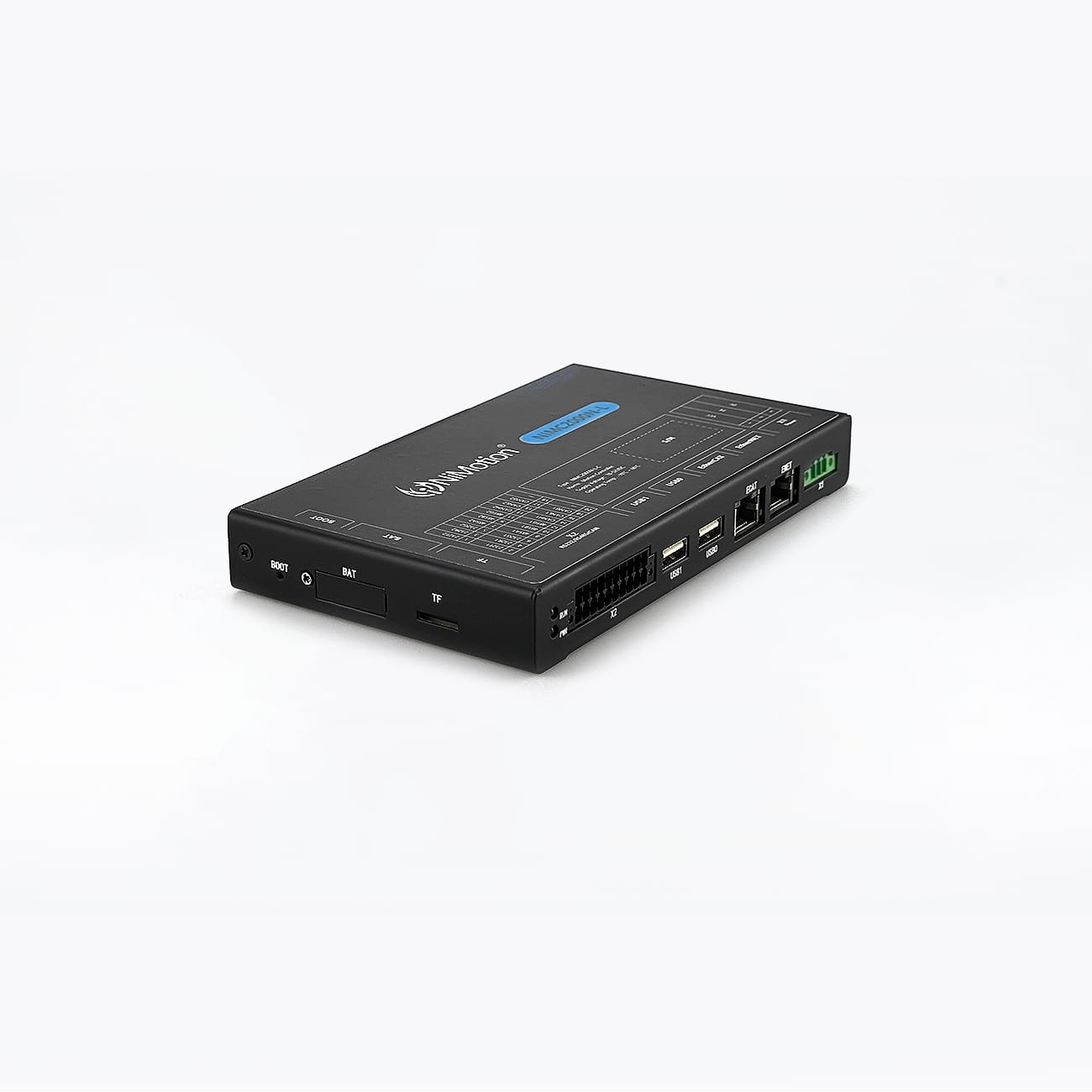

NIMC2000N-L Low Cost Motion Controller

Low-cost motion controller with integrated PLC and motion control, supports CANopen, RS485, EtherCAT.

Features

Supports multiple programming languages
Integrated motion control library
DIN rail mounting

Models & Specifications

Specs as rows · Models as columns

Specifications	NIMC2000N-L-C01	NIMC2000N-L-C02	NIMC2000N-L-C03	NIMC2000N-L-C10
System Kernel	Linux 4.9.45 RT-Preempt Live Patch	Linux 4.9.45+RT-Preempt real-time patch	Linux 4.9.45 RT-Preempt real-time patch	Linux 4.9.45 Xenomai 3 Live Patch
PLC Software	CodeSys V3.5	Codsys V3.5	CodeSys V3.5	NIMCS2000
Instruction List (IL)	Support	Support	Support	×
Structured Text (ST)	Support	Support	Support	Support
Ladder Diagram (LD)	Support	Support	Support	Support
Sequential Function Chart (SFC)	Support	Support	Support	Support
Function Block Diagram (FBD)	Support	Support	Support	Support
Continuous Function Chart (CFC)	Support	Support	Support	×
NiM_SML	Support	Support	Support	Support
NiM_SMB	Support	Support	Support	Support
NiM_Robotics	Support	Support	Support	×
SML_Basic	×	×	×	×
SM3_Basic	×	Support	Support	×
SM3_Robotics	×	×	Support	×
SM3_CNC	×	×	Support	×

* Scroll horizontally within the table area when the content is wide.

Specifications

Appearance Dimensions	172×100×25mm
Mounting Method	DIN rail mounting, screw mounting
Weight	450g
Housing Material	Galvanized cold-rolled steel coil (CGCC)
Rated Voltage	24,48VDC
Voltage Range	18-52VDC
Internal Power Consumption	24VDC rated input voltage, max power consumption 5W
Maximum Input Current	3A
Fuse	Built-in DC resettable fuse
Processor	ARM Cortex A8 800MHz 256KB L2 cache
Memory	512MB
Flash Memory	4GB eMMC
SD Card	Supported
DI	None
DO	-
AI Channels	-
PWM Output	-
AO Channels	-
Number of RS232 Ports	2
Number of RS485 Ports	2
Number of CAN Ports	2
Number of Ethernet Ports	2
Number of USB Ports	2
Data Retention upon Power Failure	Supported
Operating Temperature	-10℃~+60℃
RTC (Real-Time Clock)	Supported

Product Details

Product Overview

ModbusRTU Master, Slave ModbusTCP Master, Slave CANopen Master, Slave EtherCAT Master Proﬁnet Controller, Device EtherNet/IP Scanner, Adapter √ √ Custom TCP, UDP Protocol

Product Features

Communication technology
Only CANopen is supported
UA Server
UA Client
Custom Serial Communication Protocol
Custom can communication protocol

Multi-bus communication support

Supports EtherCAT, CANopen and RS485 communication, allowing quick connection to mainstream PLCs, motion controllers and host systems, with flexible networking and easy expansion.

Wide Voltage Input

Wide input voltage range of 24/48 VDC (18~52VDC)内部功耗：24VDC, suitable for various power-supply environments and giving greater flexibility in system integration and retrofitting.

High-performance processing platform

Based on ARM Cortex A8 800MHz 256KB L2处理器，配置512MB内存与4GB eMMC闪存, it delivers excellent data processing and real-time control capability for multi-axis coordination and complex logic operations.

Compact body design

Compact body of only 172×100×25mm can be installed close to the machine, saving valuable space in the control cabinet.

Power-off data retention

Supports power-loss data retention and an RTC real-time clock, so key parameters, operation records and time information are not lost when power is removed.

Standard programming platform

Based on CODESYS programming platform, complies with IEC 61131-3 and PLCopen standards, supports PLC language secondary development, and has high engineering reusability

Downloads

Name	Type	Size	Update Date
NiMotion Motion Controller Selection Guide	Selection Guide	26.6MB	2026-10-14
NIMC2000N-L Motion Controller – User Manual	User Manual	3.0MB	2026-08-11
nimc2000n-l-c-motion-controller	Drawing	547.0KB	2026-07-28
