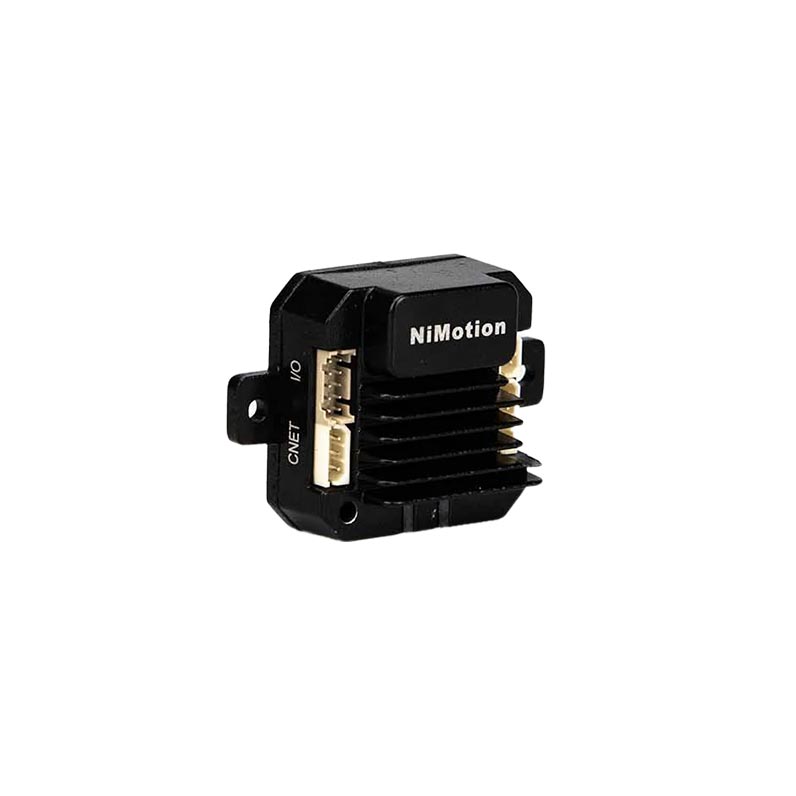

SDM4203 Stepper Motor Driver

The SDM4203 series driver products are independently developed by our company. They support bus control and have a maximum peak current of 4A. They can be flexibly configured according to the rated current of the motor and controlled through bus communication. It supports various servo functions, such as origin setting, online upgrade, parameter identification, diagnostic alarm, stall detection, and multiple control modes. This product has the characteristics of small size and simple wiring.

Specifications

Input Voltage	12-30
Rated Voltage	24
Current	Vector control (FOC), max peak 4A, flexibly configurable based on motor rated current
Communication Method	CANopen,RS485
Micro stepping	1, 2, 4, 8, 16 microsteps, software configurable
Control Mode	Position mode, velocity mode, homing mode
Digital I/O	Configurable 5 digital inputs, 2 digital outputs; High level: 3VDC-3.3VDC, Low level: 0VDC-0.5VDC
Operating Temp	Storage temperature: 0°C ~ 40°C Operating humidity: 10% RH ~ 85% RH, non-condensing
Operating Altitude	-40°C-85°C; Storage humidity: 5%RH-95%RH non-condensing
Mounting Backplane	Supports three backplate types (standard, vertical, L-type)
