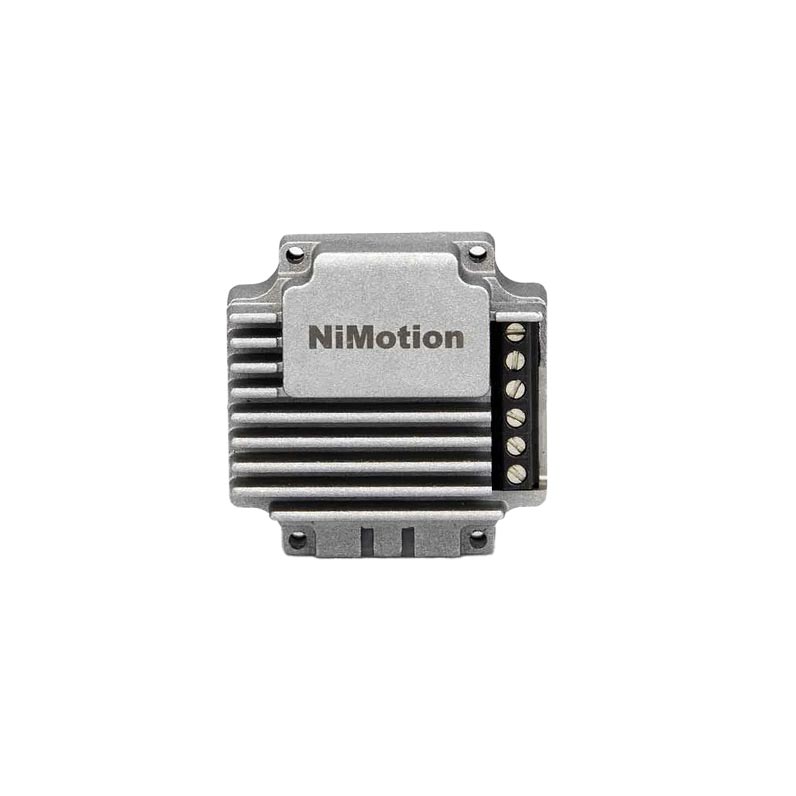

SDM5710 Stepper Motor Driver

The SDM5710 series communication driver is a motor driver product independently developed by our company. This driver is a bus driver with a maximum peak current of 4A, which can be flexibly configured according to the motor's rated current and controlled via CANopen and RS485 buses. It supports efficient functions such as origin setting, online upgrades, parameter identification, diagnostic alarms, stall detection, and multiple control modes. It features a compact size and simple wiring

Specifications

Input Voltage	10-48VDC
Current	Max peak 9.8A, flexibly configurable based on motor rated current
Communication Method	CANopen,RS485
Rated Voltage	-
Micro stepping	1, 2, 4, 8, 16 micro steps, software configurable
Control Mode	Position mode, velocity mode, homing mode
Digital I/O	Configurable 5 digital inputs, 2 digital outputs; High level: 3VDC-3.3VDC, Low level: 0VDC-0.5VDC
Operating Temp	Storage temperature: 0°C ~ 40°C Operating humidity: 10% RH ~ 85% RH, non-condensing
Operating Altitude	-40°C-85°C; Storage humidity: 5%RH-95%RH non-condensing
Mounting Backplane	Supports three backplate types (standard, vertical, L-type)

Downloads

Name	Type	Size	Update Date
NiMotion Drive Selection Guide	Selection Guide	23.6MB	2026-10-14
SDM5710-XXX-III-driver-l-l-type-flange-version	Drawing	153.4KB	2026-10-13
Communication Manual – Stepper-Modbus	Communication Manual	1.1MB	2026-08-25
Motor Tuning Software – Stepper 485 Communication	Software	22.8MB	2026-10-13
SDM5710-XXX-II-driver-vertical-flange-version	Drawing	160.8KB	2026-10-13
SDM5710-XXX-I-driver-no-flange-version	Drawing	162.3KB	2026-10-13
Communication Manual – Stepper-CANopen	Communication Manual	2.5MB	2026-08-25
Motor Tuning Software – Stepper CAN Communication	Software	8.9MB	2026-10-13
