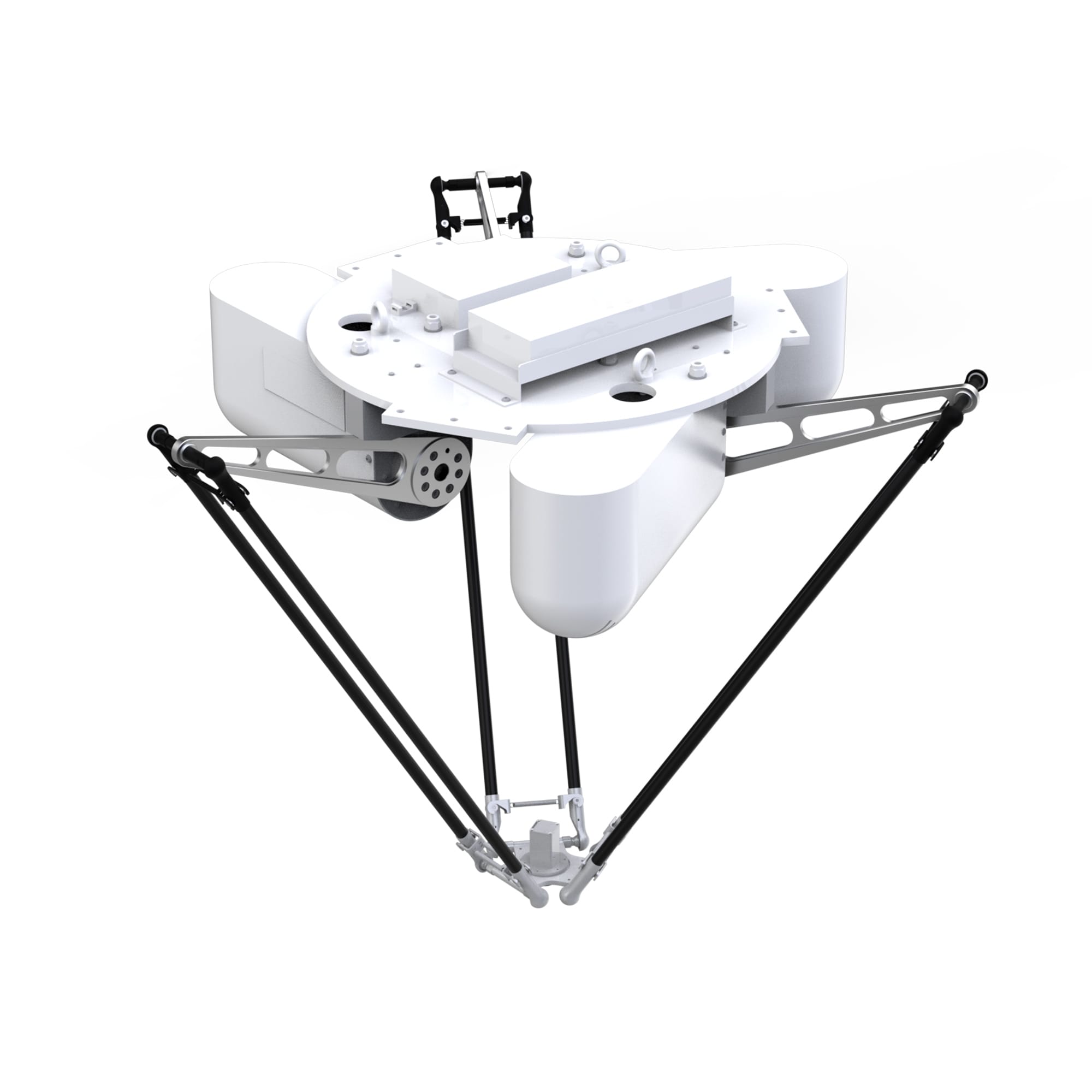

SR Series Delta Robot

The SR Series Delta Robot is a dexterous, compact, and efficient 4-DOF Delta parallel robot developed on an integrated motion control system. Featuring built-in proprietary motion libraries and advanced control algorithms, it delivers efficient motion control and path planning, enhancing motion performance and production efficiency.

Features

Efficient, fast, and flexible
Multiple communication interfaces
Built-in vision recognition system

Specifications

Number Of Axes	3+1
Design Payload	500g
Mounting Space	100010001000
Working Diameter	800mm
Rotary Adjustment Range	±180°
Position	±1mm
Motion Frequency	120/min
Up Swing	30°
Down Swing	65°
Input Power	48V
Communication	CANopen/EtherCAT
I/O	DI:6,DO:2
Rated Power	2500W

Product Details

Drawing Dimensions

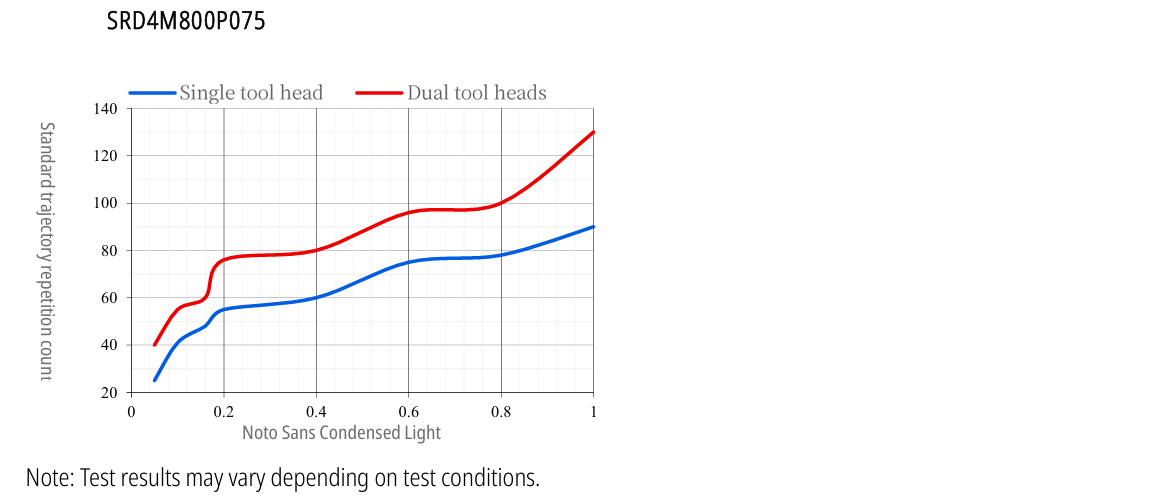

Gripping frequency

Downloads

Name	Type	Size	Update Date	Download
NiMotion Robot Gripper Selection Guide	Selection Guide	9.2MB	2026-08-25
