STM57 Series Integrated Stepper Motor
57mm flange integrated stepper motor – seamlessly combines stepper motor, driver, controller, and I/O interfaces into a single unit. Reduces wiring, lowers failure points, ensures stable motion, and is suitable for a wide range of compact automation equipment.
Features
- CAN/RS485
- 14-bit encoder for closed-loop control
- Supports DI and DO control
Models & Specifications
| Specifications | STM5741-485-0FS | STM5756-485-0FS | STM5776-485-0FS | STM57B5-485-0FS | STM5741A-485-0FS | STM5741A-CAN-0FS | STM5756A-485-0FS | STM5756A-CAN-0FS | STM5776A-485-0FS | STM5776A-CAN-0FS | STM57B5A-485-0FS | STM57B5A-CAN-0FS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flange Size | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm |
| Brake | No Brake | No Brake | No Brake | No Brake | No Brake | No Brake | No Brake | No Brake | No Brake | No Brake | No Brake | No Brake |
| Open-Loop/Closed-Loop | Open-loop | Open-loop | Open-loop | Open-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop | Closed-loop |
| Encoder Type | No Encoder | No Encoder | No Encoder | No Encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder | 14-bit single-turn absolute magnetic encoder |
| Voltage Range | 10-30VDC | 10-30VDC | 10-30VDC | 10-30VDC | 10-30VDC | 10-30VDC | 10-30VDC | 10-30VDC | 10-30VDC | 10-30VDC | 10-30VDC | 10-30VDC |
| Rated Voltage | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 24 VDC |
| Rated Current | 2.8 A | 3.0 A | 3.0 A | 2.8 A | 2.8 A | 2.8 A | 3.0 A | 3.0 A | 3.0 A | 3.0 A | 2.8 A | 2.8 A |
| Holding Torque | 0.55 N·m | 1.26 N·m | 1.80 N·m | 3.0 N·m | 0.55 N·m | 0.55 N·m | 1.26 N·m | 1.26 N·m | 1.80 N·m | 1.80 N·m | 3.0 N·m | 3.0 N·m |
| Inertia | - | - | - | - | - | - | - | - | - | - | - | - |
| Weight | 0.49 kg | 0.71 kg | 1.05 kg | 1.67 kg | 0.49 kg | 0.49 kg | 0.71 kg | 0.71 kg | 1.05 kg | 1.05 kg | 1.67 kg | 1.67 kg |
| Body Length | 61 mm | 76 mm | 96 mm | 132 mm | 61 mm | 61 mm | 76 mm | 76 mm | 96 mm | 96 mm | 132 mm | 132 mm |
* Scroll horizontally within the table area when the content is wide.
Specifications
| Shaft Diameter | Φ8 |
| Number Of Phases | 2 |
| Step Angle | 1.8° |
| Encoder Introduction | 14-bit absolute magnetic encoder for closed-loop models(Open-loop version without encoder) |
| Subdivision | 1,2,4,8,16 |
| Control Modes | Manufacturer Mode,Position Mode,Velocity Mode,Homing Mode |
| External Control Interface | DI – Non-isolated NPN Input,DI – Non-isolated Switch Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output |
| CiA402 Mode | - |
| DI (Digital Input) | Quantity 3; Not isolated; Level input, passive contact input; High power usually 3 ~ 3.3V, low power usually 0 ~ 0.5V |
| DO (Digital Output) | - |
| DX (Digital Input / Output) | Quantity 2; Not isolated; You can set it to DI or DO. High power usually 3 ~ 3.3V, low power usually 0 ~ 0.5V |
| AI (Analog Input) | - |
| Operating Temperature | 0°C to 40°C |
| Operating Altitude | <1000m |
| Fault Alarm | Overvoltage, undervoltage, overheat, locked rotor |
Product Details
Applications in Paper Folding Equipment
This integrated servo motor series is specifically designed for the high-frequency start-stop and precise fold-positioning demands of paper-folding machines. Its compact all-in-one construction saves valuable internal equipment space, allowing easy installation in tight locations. Low cogging torque ensures consistent fold-line accuracy, while high dynamic response reliably handles hundreds of start-stop cycles per minute. With support for multiple mainstream communication protocols and compatibility with various control systems, plus a fully sealed enclosure that withstands paper-dust environments, this motor series helps folding equipment achieve long-term stable and efficient operation.
Downloads
Companion Products
USB to CAN converter with isolation, IP65 protection, and secondary development SDK support.
USB to RS485 converter with active termination, isolation, IP65 protection, and secondary development SDK support.

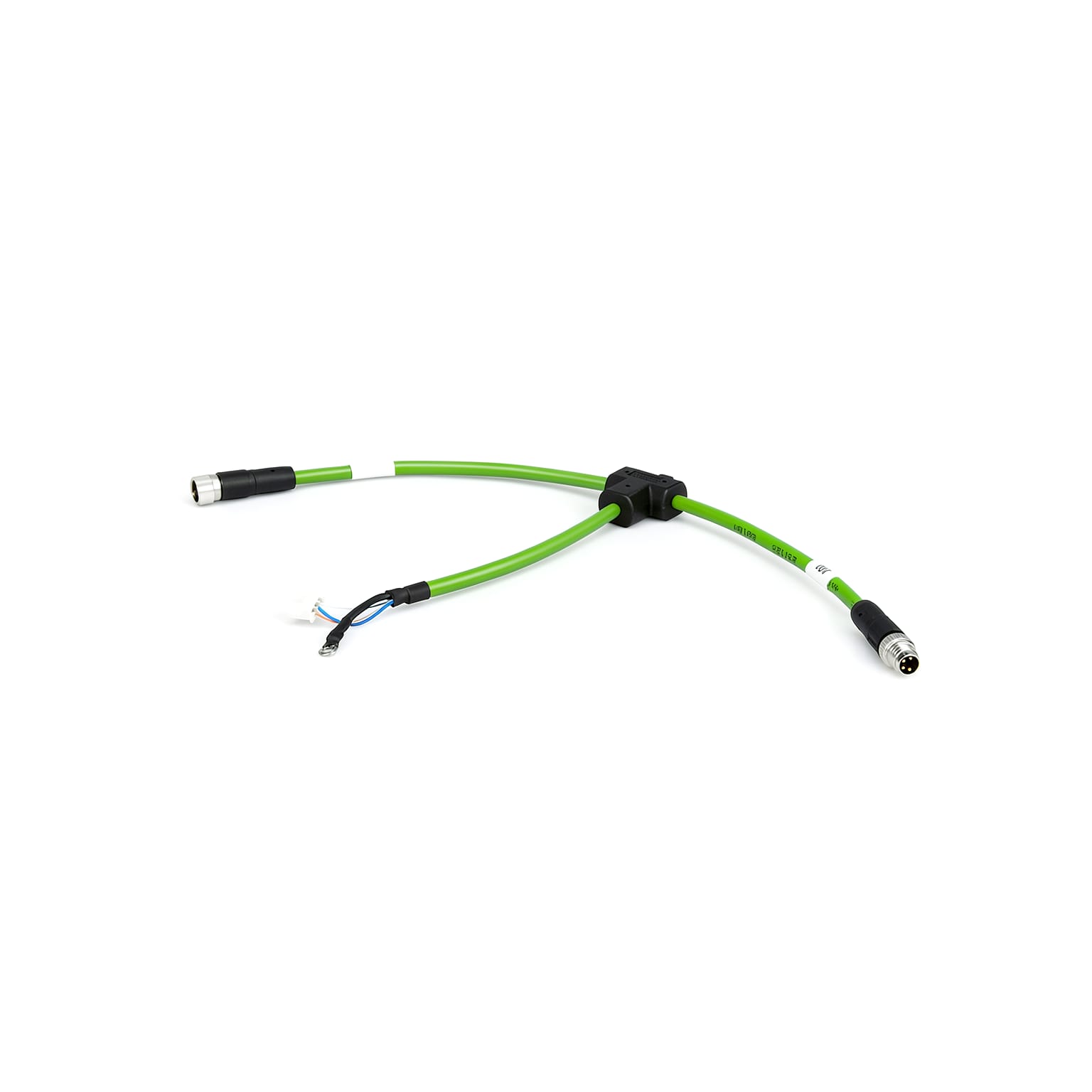

Communication cable for NiMotion integrated motors.
