BLM42

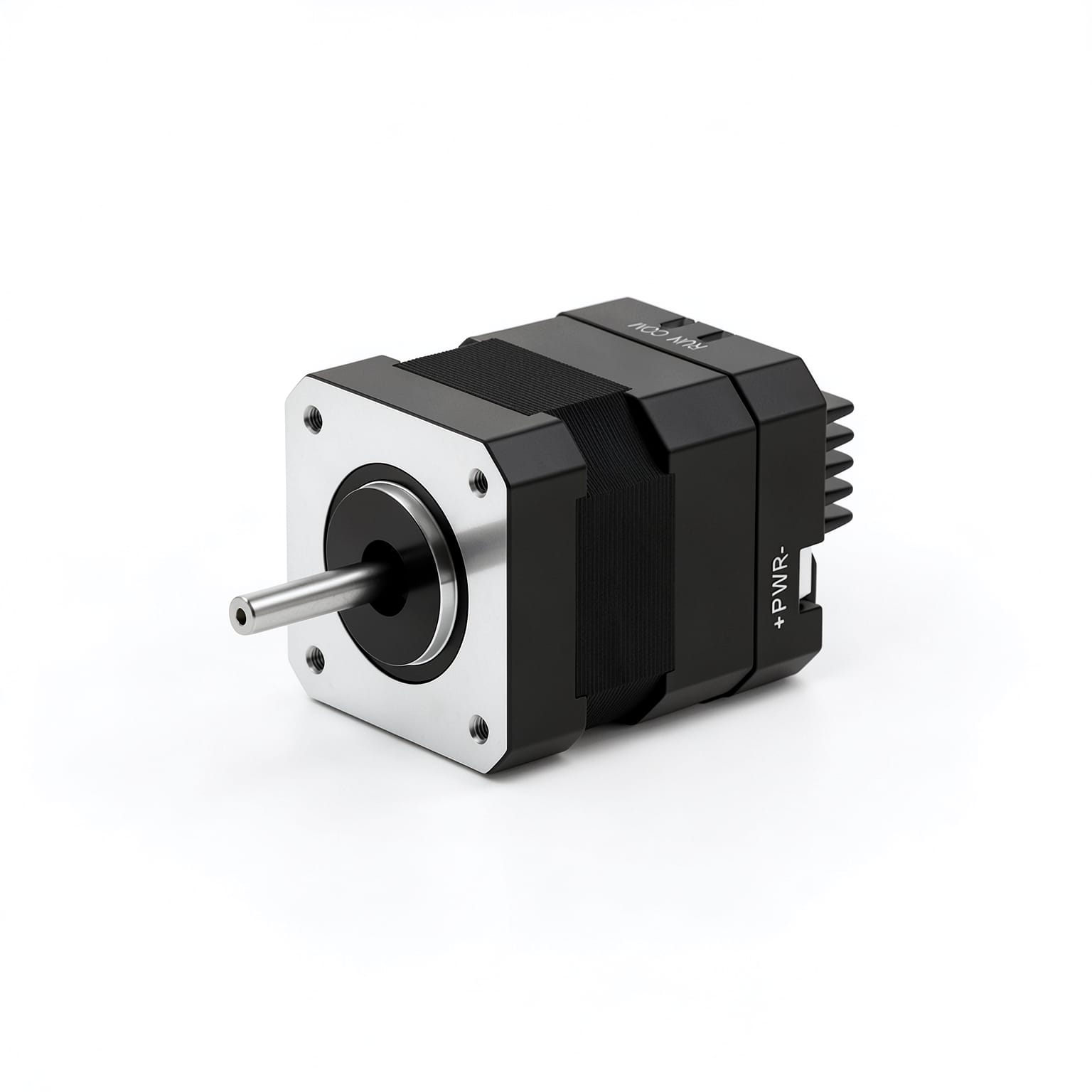

BLM42 Integrated BLDC Motor

42mm flange integrated brushless DC motor – features high-speed smooth operation, integrates drive, control, and I/O, simplifies wiring, saves space, and delivers smarter integrated solutions for a wide range of compact automation equipment.

Features

Optional brake
External wiring option
Integrated driver and encoder

Pulse RS485 CANopen 42mm

Models & Specifications

Specs as rows · Models as columns

Specifications	BLM4203B-485-0FS	BLM4203B-CANopen-0FS	BLM4203B-485-0FS-W	BLM4203B-CANopen-0FS-W	BLM4203B-485-0FSB	BLM4203B-CANopen-0FSB	BLM4205B-485-0FS	BLM4205B-CANopen-0FS	BLM4205B-485-0FS-W	BLM4205B-CANopen-0FS-W	BLM4205B-485-0FSB	BLM4205B-CANopen-0FSB
Flange Size	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm	42mm
Torque	0.083 N·m	0.083 N·m	0.083 N·m	0.083 N·m	0.083 N·m	0.083 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m
Brake	No Brake	No Brake	No Brake	No Brake	Built-in Brake w/ Logic	Built-in Brake w/ Logic	No Brake	No Brake	No Brake	No Brake	Built-in Brake w/ Logic	Built-in Brake w/ Logic
Rated Speed	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm
Rated Power	26 W	26 W	26 W	26 W	26 W	26 W	47 W	47 W	47 W	47 W	47 W	47 W
Rated Voltage	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC
Voltage Range	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC	12-36VDC
Encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder
Rated Current	1.7 A	1.7 A	1.7 A	1.7 A	1.7 A	1.7 A	2.77 A	2.77 A	2.77 A	2.77 A	2.77 A	2.77 A
Inertia	2.0×10^-6 kg·m²	2.0×10^-6 kg·m²	2.0×10^-6 kg·m²	2.0×10^-6 kg·m²	2.39×10^-6 kg·m²	2.39×10^-6 kg·m²	4.2×10^-6 kg·m²	4.2×10^-6 kg·m²	4.2×10^-6 kg·m²	4.2×10^-6 kg·m²	4.99×10^-6 kg·m²	4.99×10^-6 kg·m²
Protection Level	-	-	-	-	-	-	-	-	-	-	-	-
STO Function	-	-	-	-	-	-	-	-	-	-	-	-
Body Length	58.5 mm	58.5 mm	58.5 mm	58.5 mm	84 mm	84 mm	78.5 mm	78.5 mm	78.5 mm	78.5 mm	104 mm	104 mm
Weight	0.30 kg	0.30 kg	0.30 kg	0.30 kg	0.44 kg	0.44 kg	0.48 kg	0.48 kg	0.48 kg	0.48 kg	0.60 kg	0.60 kg

* Scroll horizontally within the table area when the content is wide.

Specifications

Shaft Diameter	Φ5
Encoder	2500-line single-turn absolute magnetic encoder
Drive Mode	Adopting FOC field-oriented control technology and SVPWM
NiMotion Mode	Position mode: Pulse control, multi-segment position control, digital input control Speed mode: Analog speed control, digital input control Torque mode: Digital input control
CiA402 Mode	CiA402 (PP, VM, PV, PT, HM, IP, CSP, CSV, CST); NiMotion modes
DI (Digital Input)	Quantity: 3 units; maximum PWM pulse frequency 2MHz; supports 5V and 24V level inputs. Configurable functions: 1. Enable 2. Positive/negative limit 3. Origin switch 4. Alarm reset 5. Pause 6. Multi-segment operation command switching.
Control Modes	CiA402 modes, Manufacturer-specific modes, Position mode, Speed mode, Torque mode
External Control Interface	DI – Non-isolated NPN Input,DI – Non-isolated PNP Input,DI – Non-isolated Switch Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output,AI – 0–10V Analog Input
DO (Digital Output)	Quantity: 2 units; Output method: MOS open-drain output; Current: DO1: maximum load current 500mA, maximum voltage 30V; DO2: maximum load current 1A, maximum voltage 30V (not available for brake models). Configurable functions: 1. Motor run/stop; 2. Target reached; 3. Alarm output.
AI (Analog Input)	Quantity: 1 Input method: Single-ended input Signal type: Voltage signal Resolution: 12-bit Voltage: 0–10V Accuracy: Reference error ≤ 1% Configurable functions: Dead zone, filtering, offset, scaling, direction
Operating Temperature	0°C to 40°C
Operating Altitude	<1000m
Fault Alarm	Overvoltage, undervoltage, overtemperature, locked rotor
Servo Function	Soft limit, gain switching, S-curve planning, vibration suppression, parameter identification, online upgrade

Product Details

Application in AGV Equipment

This integrated BLDC motor series is applicable to AGV drive wheels, steering actuators, lifting platforms, and fork positioning mechanisms. Its compact integrated design saves vehicle space, leaving more room for batteries and cargo. Built-in encoder enables full closed-loop control, adapting to floor irregularities and load variations. Multiple communication protocols are supported for compatibility with various navigation systems.
