PAM80

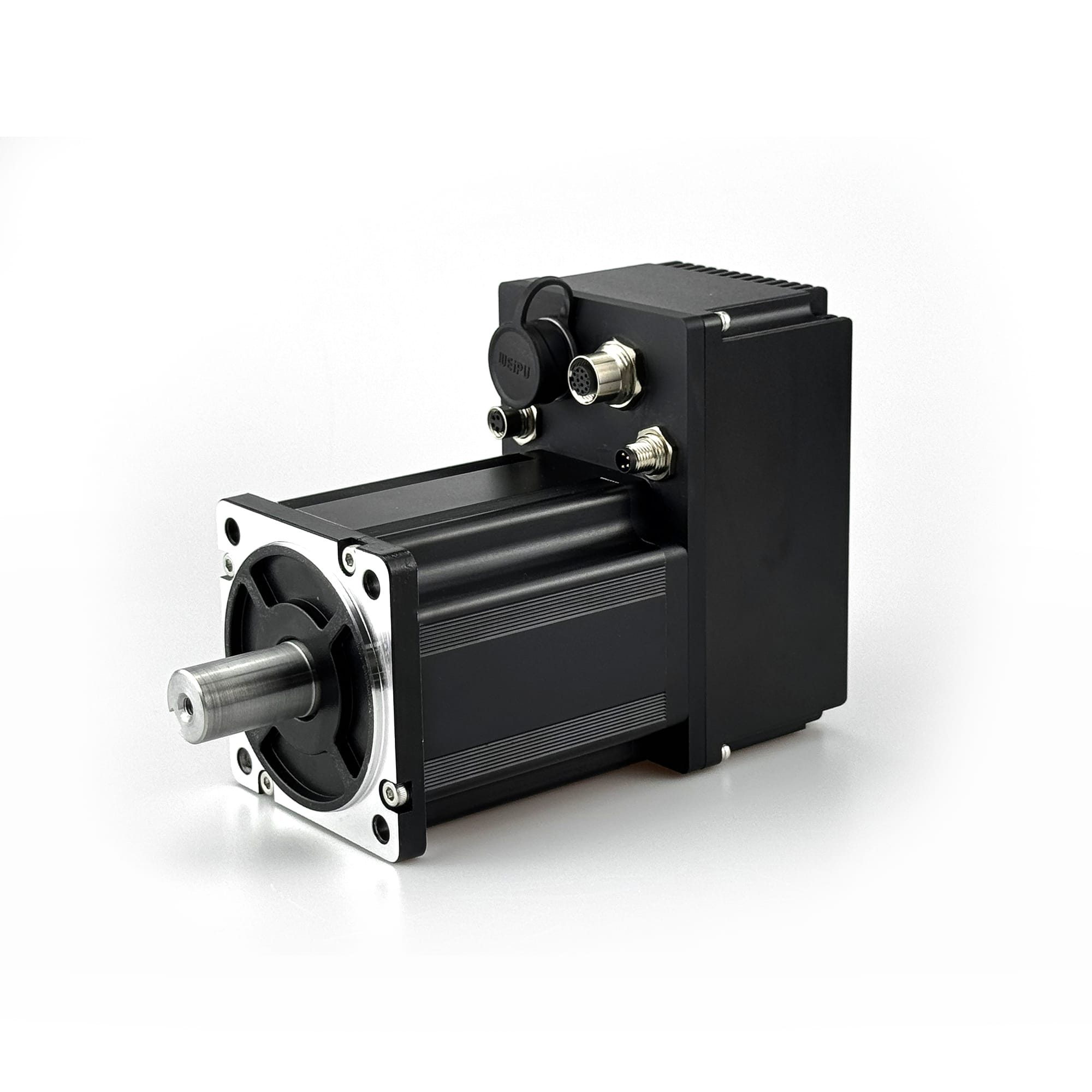

PAM80 Integrated AC Servo Motor

High-torque integrated medium-voltage servo motor with 80mm flange, 630W/750W options, supporting EtherCAT, CANopen and RS485.

Features

220V AC operation
High power 630W/750W
EtherCAT/CANopen/RS485
1500/3000 rpm variants

Pulse EtherCAT RS485 CANopen 80mm

Models & Specifications

Specs as rows · Models as columns

Specifications	PAMB8063B	PAMB8063D	PAM8075B	PAM8075D
Flange Size	80	80	80	80
Encoder	17-bit single-turn encoder	17-bit multi-turn encoder	17-bit single-turn encoder	17-bit multi-turn encoder
Communication Method	CANopen,RS485,Pulse,EtherCAT	CANopen,RS485,Pulse,EtherCAT	CANopen,RS485,Pulse,EtherCAT	CANopen,RS485,Pulse,EtherCAT
Rated Speed	1500 rpm	1500 rpm	3000 rpm	3000 rpm
Rated Power	630 W	630 W	750 W	750 W
Rated Voltage	220 VDC	220 VDC	220 VDC	220 VDC
Rated Current	3.65 A	3.65 A	3.7 A	3.7 A
Torque	4.0 N·m	4.0 N·m	2.4 N·m	2.4 N·m
Inertia	1.07×10^-5 kg·m²	1.07×10^-5 kg·m²	1.2×10^-5 kg·m²	1.2×10^-5 kg·m²
Brake	No	No	No	No
Protection Level	-	-	-	-
STO Function	No	No	No	No
Body Length	154.5 mm	154.5 mm	175.4 mm	175.4 mm
Weight	3.12 kg	3.12 kg	3.3 kg	3.3 kg

* Scroll horizontally within the table area when the content is wide.

Specifications

Shaft Diameter	Φ19
Voltage Range	220±10% VAC
Drive Mode	Adopting FOC field-oriented control technology and SVPWM
Encoder	14-bit single-turn absolute magnetic encoder or 14-bit multi-turn absolute magnetic encoder
NiMotion Mode	Position mode: Pulse control, multi-segment position control, digital input control, analog input control Speed mode: Pulse control, multi-segment speed control, digital input control, analog input control Torque mode: Digital input control, analog input control
CiA402 Mode	PP, VM, PV, PT, HM, IP, CSP, CSV, CST
DI (Digital Input)	Quantity: 3, high-speed unidirectional optocoupler, supported maximum PWM pulse frequency: 2MHz; Supports PNP, NPN and differential input; At high levels, it is 5 to 24V; at low levels, it is 0 to 0.5V. Configurable functions: 1. Use as a switch 2. Use as a pulse input channel
DO (Digital Output)	Quantity: 1; Supports optocoupler output with open collector; Maximum current: 100mA; Maximum voltage: 55V(≥1KHz,Configurable functions: 1. Regular DO port; 2. The motor stops running; 3. Goal achievement; 4. Alarm output
AI (Analog Input)	Quantity: 1; Input Type: Single-ended; Signal Type: Voltage; Resolution: 12-bit; Voltage: -10V~10V; Accuracy: Reference error ≤1%; Configurable Functions: Dead zone, Filtering, Offset, Scaling, Direction
Operating Temperature	0°C to 40°C
Operating Altitude	<1000m
Fault Alarm	Overvoltage, undervoltage, overtemperature, locked rotor, overload, overspeed
Servo Function	Soft limit, gain switching, S-curve planning, vibration suppression, parameter identification, online upgrade
