PMM60

PMM60 Integrated DC Servo Motor

60mm flange integrated servo motor – integrates drive, control, and I/O, redefining traditional servo systems. Simplifies wiring, saves space, and delivers smarter integrated solutions for a wide range of compact automation equipment.

Features

60mm flange size
Precise control and stable operation
200W / 400W

Pulse EtherCAT RS485 CANopen 60mm

Models & Specifications

Specs as rows · Models as columns

Specifications	PMM6020B-CANopen-0HE	PMM6020B-485-0HE	PMM6020B-COE-0HE	PMM6020B-CANopen-0HEB	PMM6020B-485-0HEB	PMM6020B-COE-0HEB	PMM6020B-CANopen-0HE-LP	PMM6020B-485-0HE-LP	PMM6020B-COE-0HE-LP	PMM6020B-CANopen-0HEB-LP	PMM6020B-485-0HEB-LP	PMM6020B-COE-0HEB-LP	PMM6040B-CANopen-0HE	PMM6040B-485-0HE	PMM6040B-COE-0HE	PMM6040B-CANopen-0HEB	PMM6040B-485-0HEB	PMM6040B-COE-0HEB	PMM6040B-CANopen-0HE-LP	PMM6040B-485-0HE-LP	PMM6040B-COE-0HE-LP	PMM6040B-CANopen-0HEB-LP	PMM6040B-485-0HEB-LP	PMM6040B-COE-0HEB-LP
Flange Size	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm
Brake	No Brake	No Brake	No Brake	Integrated Brake (Ext. Interface)	Integrated Brake (Ext. Interface)	Integrated Brake (Ext. Interface)	No Brake	No Brake	No Brake	Integrated Brake (Ext. Interface)	Integrated Brake (Ext. Interface)	Integrated Brake (Ext. Interface)	No Brake	No Brake	No Brake	Integrated Brake (Ext. Interface)	Integrated Brake (Ext. Interface)	Integrated Brake (Ext. Interface)	No Brake	No Brake	No Brake	Integrated Brake (Ext. Interface)	Integrated Brake (Ext. Interface)	Integrated Brake (Ext. Interface)
Encoder type	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder
Rated Speed	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm
Rated Power	200 W	200 W	200 W	200 W	200 W	200 W	200 W	200 W	200 W	200 W	200 W	200 W	400 W	400 W	400 W	400 W	400 W	400 W	400 W	400 W	400 W	400 W	400 W	400 W
Rated Voltage	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC
Inertia	1.9×10^-5 kg·m²	1.9×10^-5 kg·m²	1.9×10^-5 kg·m²	1.9×10^-5 kg·m²	1.9×10^-5 kg·m²	1.9×10^-5 kg·m²	1.9×10^-5 kg·m²	1.9×10^-5 kg·m²	1.9×10^-5 kg·m²	1.9×10^-5 kg·m²	1.9×10^-5 kg·m²	1.9×10^-5 kg·m²	2.5×10^-5 kg·m²	2.5×10^-5 kg·m²	2.5×10^-5 kg·m²	2.5×10^-5 kg·m²	2.5×10^-5 kg·m²	2.5×10^-5 kg·m²	2.5×10^-5 kg·m²	2.5×10^-5 kg·m²	2.5×10^-5 kg·m²	2.5×10^-5 kg·m²	2.5×10^-5 kg·m²	2.5×10^-5 kg·m²
Voltage Range	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52
Protection Level	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54
STO Function	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No
Body Length	115 mm	115 mm	115 mm	147 mm	147 mm	147 mm	115 mm	115 mm	115 mm	147 mm	147 mm	147 mm	145 mm	145 mm	145 mm	177 mm	177 mm	177 mm	145 mm	145 mm	145 mm	177 mm	177 mm	177 mm
Weight	1.1 kg	1.1 kg	1.1 kg	1.5 kg	1.5 kg	1.5 kg	1.1 kg	1.1 kg	1.1 kg	1.5 kg	1.5 kg	1.5 kg	1.6 kg	1.6 kg	1.6 kg	2.0 kg	2.0 kg	2.0 kg	1.6 kg	1.6 kg	1.6 kg	2.0 kg	2.0 kg	2.0 kg
Rated Current	8 A	8 A	8 A	8 A	8 A	8 A	8 A	8 A	8 A	8 A	8 A	8 A	12 A	12 A	12 A	12 A	12 A	12 A	12 A	12 A	12 A	12 A	12 A	12 A

* Scroll horizontally within the table area when the content is wide.

Specifications

Shaft Diameter	Φ14
Drive Mode	FOC magnetic field directional control technology and SVPWM
Encoder	2500-line single-turn absolute magnetic encoder
CiA402 Mode	PP, VM, PV, PT, HM, IP, CSP, CSV, CST

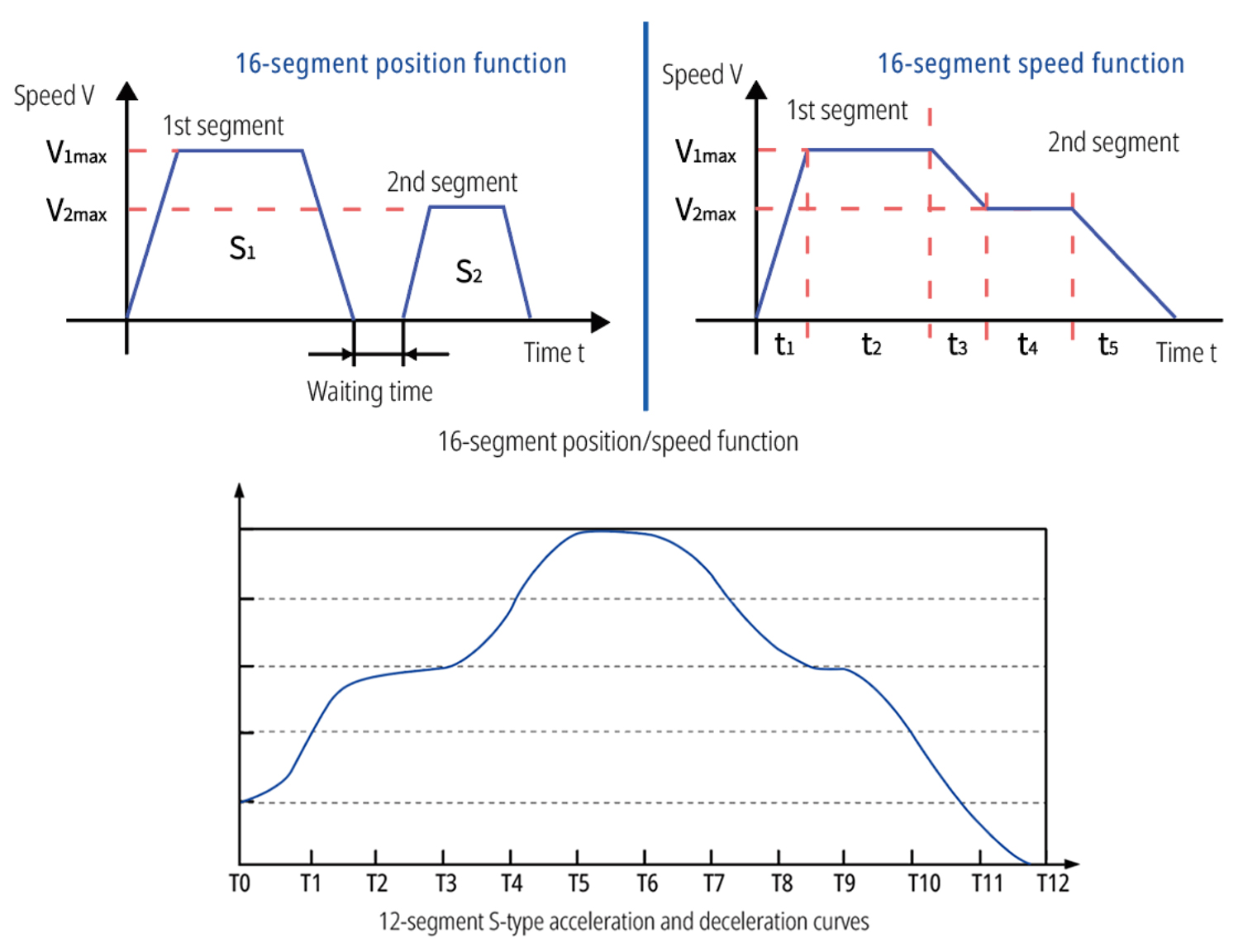

NiMotion mode	Position mode: Pulse control, multi-segment position control, digital input control Speed mode: Multi-segment speed control, digital input control Torque mode: Digital input control
Control Modes	CiA402 Mode,Manufacturer Mode
External Control Interface	DI – Non-isolated NPN Input,DI – Non-isolated PNP Input,DI – Non-isolated Switch Input,DI – Isolated Opto Single-Ended Input,DI – Isolated Opto Differential Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output,AI – 0–10V Analog Input
DI (Digital Input)	Quantity: 3, non-isolated, pull-up configurable via object 2003h:15h; High level: 3~30V, Low level: 0~0.5V. Configurable functions: 1. Used as switch input; 2. Used as pulse input channel.
DO (Digital Output)	Configurable via DX
DX (Digital Input / Output)	Quantity: 1; Configured as DO; Maximum load current: 8mA; Configurable functions: 1. General DO; 2. Motor run/stop; 3. Target reached; 4. Alarm output (DO switching state changes when motor status meets the above conditions).
AI (Analog Input)	Quantity: 1; Input method: single-ended input; Signal type: voltage signal; Resolution: 12-bit; Voltage: 0~10V; Accuracy: reference error ≤1%; Configurable functions: dead zone, filtering, offset, scaling, direction.
Operating Temperature	0°C to 40°C
Operating Altitude	<1000m
Fault Alarm	Overvoltage, undervoltage, overtemperature, locked rotor, overload, overspeed
Servo Function	Soft limit, gain switching, S-curve planning, vibration suppression, parameter identification, online upgrade

Downloads

Name	Type	Size	Update Date
NiMotion Integrated Motor Selection Guide	Selection Guide	12.8MB	2026-08-25
pmm-series-ethercat-canopen-rs485-User Manual	User Manual	1.4MB	2026-09-10
Communication Manual – Servo-EtherCAT	Communication Manual	3.7MB	2026-08-25
Communication Manual – Servo-modbus	Communication Manual	4.1MB	2026-08-13
Communication Manual – Servo-CANopen	Communication Manual	3.8MB	2026-08-25
pmm60xxb-xxx-0he-b-lp-integrated-low-voltage-servo-motor	Drawing	241.7KB	2026-07-28
pmm60xxb-xxx-0he-b-integrated-low-voltage-servo-motor-standard	Drawing	235.0KB	2026-07-28
pmm6020b-xxx-l-0he-b-integrated-low-voltage-servo-motor	Drawing	277.0KB	2026-07-28
