PMMP60

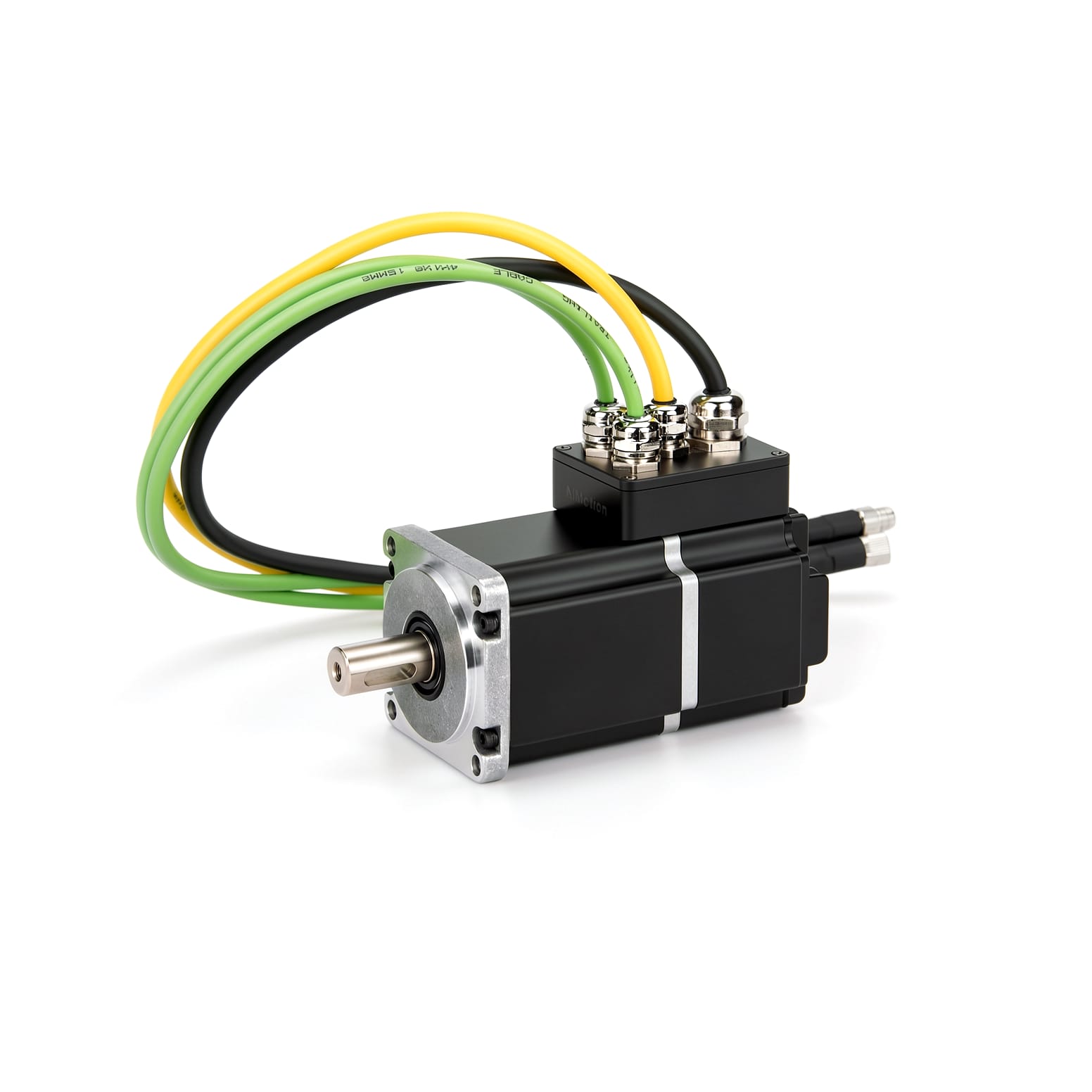

PMMP60 Integrated Protection DC Servo Motor

IP65-rated 60mm flange integrated servo motor – integrates drive, control, and I/O, redefining traditional servo systems. Simplifies wiring, saves space, and delivers smarter integrated solutions for a wide range of compact automation equipment.

Features

IP65 protection rating
EtherCAT / CANopen / RS485
200W / 400W optional

Pulse EtherCAT RS485 CANopen 60mm

Models & Specifications

Specs as rows · Models as columns

Specifications	PMMP6020B-485-0HE	PMMP6020B-COE-0HE	PMMP6020B-CANopen-0HE	PMMP6040B-485-0HE	PMMP6040B-COE-0HE	PMMP6040B-CANopen-0HE
Flange Size	60mm	60mm	60mm	60mm	60mm	60mm
Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake
Encoder type	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder
Rated Speed	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm
Rated Power	200 W	200 W	200 W	400 W	400 W	400 W
Rated Voltage	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC
Inertia	2.4×10^-5 kg·m²	2.4×10^-5 kg·m²	2.4×10^-5 kg·m²	3.0×10^-5 kg·m²	3.0×10^-5 kg·m²	3.0×10^-5 kg·m²
Voltage Range	16-52	16-52	16-52	16-52	16-52	16-52
Protection Level	IP65	IP65	IP65	IP65	IP65	IP65
STO Function	No	No	No	No	No	No
Body Length	115 mm	115 mm	115 mm	145 mm	145 mm	145 mm
Weight	1.5 kg	1.5 kg	1.5 kg	1.7 kg	1.7 kg	1.7 kg
Rated Current	8.5 A	8.5 A	8.5 A	13.0 A	13.0 A	13.0 A

* Scroll horizontally within the table area when the content is wide.

Specifications

Shaft Diameter	Φ14
Drive Mode	Adopting FOC magnetic field orientation control technology and SVPWM
Encoder	2500-line single-turn absolute magnetic encoder
CiA402 Mode	PP, VM, PV, PT, HM, IP, CSP, CSV, CST
NiMotion mode	Position mode: Pulse control, multi-segment position control, digital input control Speed mode: Analog input control, multi-segment speed control, digital input control Torque mode: Digital input control
Control Modes	CiA402 Mode,Manufacturer Mode
External Control Interface	DI – Non-isolated NPN Input,DI – Non-isolated PNP Input,DI – Non-isolated Switch Input,DI – Isolated Opto Single-Ended Input,DI – Isolated Opto Differential Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output,AI – 0–10V Analog Input
DI (Digital Input)	Quantity: 3, not isolated. Pull up by setting the object 2003h:15h configuration. At high levels, it is 3 to 30V; at low levels, it is 0 to 0.5V. Configurable functions: 1. 1. Used as a switch. 2. Used as a pulse input channel
DO (Digital Output)	Configured via DX
DX (Digital Input / Output)	Quantity: 1; Configurable as DI or DO. When configured as DO: Maximum load current: 8mA. Configurable functions: 1. General DO port; 2. Motor run/stop; 3. Target reached; 4. Alarm output (when the motor status meets the above conditions, the DO switching state changes).
AI (Analog Input)	Quantity: 1; Input method: single-ended input; Signal type: voltage signal; Resolution: 12-bit; Voltage: 0~10V; Accuracy: reference error ≤1%; Configurable functions: dead zone, filtering, offset, scaling, direction.
Operating Temperature	0°C to 40°C
Operating Altitude	<1000m
Fault Alarm	Overvoltage, undervoltage, overtemperature, locked rotor, overload, overspeed
Servo Function	Soft limit, gain switching, S-curve planning, vibration suppression, parameter identification, online upgrade

Downloads

Name	Type	Size	Update Date
NiMotion Integrated Motor Selection Guide	Selection Guide	12.8MB	2026-08-25
pmmp-series-ethercat-canopen-rs485-User Manual	User Manual	2.7MB	2026-08-17
pmmp60xxb-xxx-0he-integrated-low-voltage-servo-motor-waterproof	Drawing	237.8KB	2026-07-28
Communication Manual – Servo-EtherCAT	Communication Manual	3.7MB	2026-08-25
Motor Tuning Software – General Purpose	Software	84.5MB	2026-08-27
Communication Manual – Servo-modbus	Communication Manual	4.1MB	2026-08-13
Communication Manual – Servo-CANopen	Communication Manual	3.8MB	2026-08-25
