PSMP60

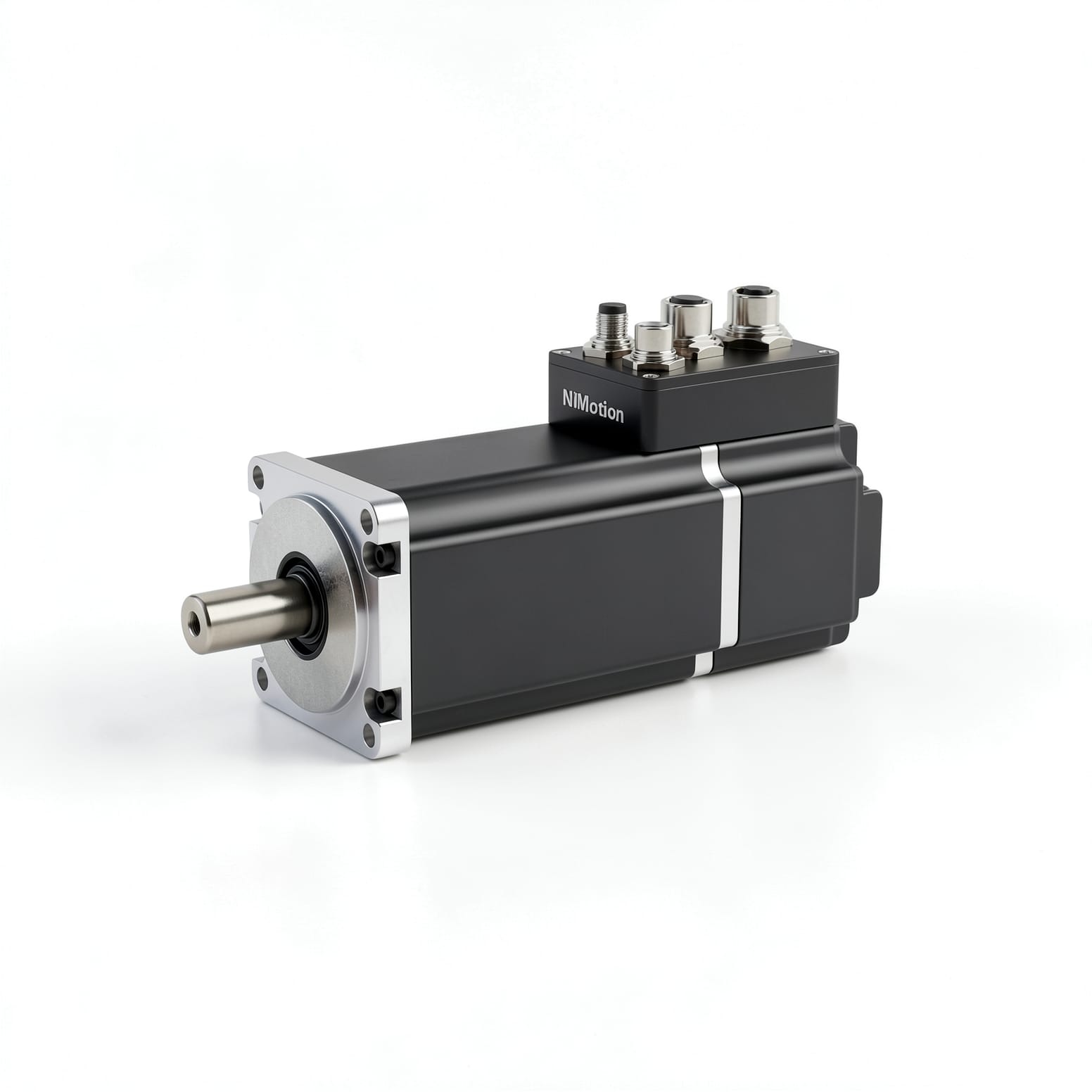

PSMP60 Integrated Protection-STO DC Servo Motor

The PSMP Series integrated servo motor integrates driver, controller, and I/O modules into a single unit. It comes standard with IP65 protection rating and STO (Safe Torque Off) function – dustproof and waterproof for harsh environments, and safety torque cutoff to meet equipment safety standards. With a compact footprint, it delivers high protection, high safety, and high performance, making it widely suitable for a variety of compact precision automation equipment.

Features

IP65 protection rating
Optional STO function
Optional brake available

Pulse EtherCAT RS485 CANopen 60mm

Models & Specifications

Specs as rows · Models as columns

Specifications	PSMP6040D-485-S-0HE	PSMP6020D-485-S-0HEB	PSMP6020D-485-0HE	PSMP6020D-485-S-0HE	PSMP6040D-485-0HEB	PSMP6040D-485-S-0HEB	PSMP6020D-485-0HEB	PSMP6040D-485-0HE	PSMP6040D-COE-S-0HE	PSMP6020D-COE-S-0HEB	PSMP6020D-COE-0HE	PSMP6020D-COE-S-0HE	PSMP6040D-COE-0HEB	PSMP6040D-COE-S-0HEB	PSMP6020D-COE-0HEB	PSMP6040D-COE-0HE	PSMP6040D-CANopen-S-0HE	PSMP6020D-CANopen-S-0HEB	PSMP6020D-CANopen-0HE	PSMP6020D-CANopen-S-0HE	PSMP6040D-CANopen-0HEB	PSMP6040D-CANopen-S-0HEB	PSMP6020D-CANopen-0HEB	PSMP6040D-CANopen-0HE
Flange Size	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm
Brake	No Brake	Built-in Brake w/ Logic	No Brake	No Brake	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	No Brake	No Brake	Built-in Brake w/ Logic	No Brake	No Brake	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	No Brake	No Brake	Built-in Brake w/ Logic	No Brake	No Brake	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	No Brake
Encoder type	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder
Rated Speed	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm
Rated Power	400 W	200 W	200 W	200 W	400 W	400 W	200 W	400 W	400 W	200 W	200 W	200 W	400 W	400 W	200 W	400 W	400 W	200 W	200 W	200 W	400 W	400 W	200 W	400 W
Rated Voltage	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC
Inertia	0.30×10^-4 kg·m²	0.25×10^-4 kg·m²	0.19×10^-4 kg·m²	0.19×10^-4 kg·m²	0.30×10^-4 kg·m²	0.30×10^-4 kg·m²	0.25×10^-4 kg·m²	0.30×10^-4 kg·m²	0.30×10^-4 kg·m²	0.25×10^-4 kg·m²	0.19×10^-4 kg·m²	0.19×10^-4 kg·m²	0.30×10^-4 kg·m²	0.30×10^-4 kg·m²	0.25×10^-4 kg·m²	0.30×10^-4 kg·m²	0.30×10^-4 kg·m²	0.25×10^-4 kg·m²	0.19×10^-4 kg·m²	0.19×10^-4 kg·m²	0.30×10^-4 kg·m²	0.30×10^-4 kg·m²	0.25×10^-4 kg·m²	0.30×10^-4 kg·m²
Protection Level	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65
STO Function	Supported	Supported	No	Supported	No	Supported	No	No	Supported	Supported	No	Supported	No	Supported	No	No	Supported	Supported	No	Supported	No	Supported	No	No
Body Length	144 mm	146.5 mm	114 mm	114 mm	176.5 mm	176.5 mm	146.5 mm	144 mm	144 mm	146.5 mm	114 mm	114 mm	176.5 mm	176.5 mm	146.5 mm	144 mm	144 mm	146.5 mm	114 mm	114 mm	176.5 mm	176.5 mm	146.5 mm	144 mm
Weight	1.7 kg	2.1 kg	1.5 kg	1.5 kg	2.3 kg	2.3 kg	2.1 kg	1.7 kg	1.7 kg	2.1 kg	1.5 kg	1.5 kg	2.3 kg	2.3 kg	2.1 kg	1.7 kg	1.7 kg	2.1 kg	1.5 kg	1.5 kg	2.3 kg	2.3 kg	2.1 kg	1.7 kg
Rated Current	13 A	8.5 A	8.5 A	8.5 A	13 A	13 A	8.5 A	13 A	13 A	8.5 A	8.5 A	8.5 A	13 A	13 A	8.5 A	13 A	13 A	8.5 A	8.5 A	8.5 A	13 A	13 A	8.5 A	13 A
Voltage Range	-	-	-	-	-	-	-	-	16-72	16-72	16-72	16-72	16-72	16-72	16-72	16-72	16-72	16-72	16-72	16-72	16-72	16-72	16-72	16-72

* Scroll horizontally within the table area when the content is wide.

Specifications

Shaft Diameter	Φ14
Drive Mode	Adopting FOC field-oriented control technology and SVPWM
Encoder	17-bit multi-turn absolute encoder (external battery backup)
CiA402 Mode	PP, VM, PV, PT, HM, IP, CSP, CSV, CST
NiMotion mode	Position mode: Pulse control, multi-segment position control, digital input control, analog input control Speed mode: Pulse control, multi-segment speed control, digital input control, analog input control Torque mode: Digital input control, analog input control
Control Modes	CiA402 Mode,Manufacturer Mode
External Control Interface	DI – Non-isolated NPN Input,DI – Non-isolated PNP Input,DI – Non-isolated Switch Input,DI – Isolated Opto Single-Ended Input,DI – Isolated Opto Differential Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output,AI – ±10V Analog Input
DI (Digital Input)	Quantity: 3 units; high-speed unidirectional optocoupler; supports maximum PWM pulse frequency: 2MHz; compatible with PNP, NPN, and differential input; high level: 5–24V, low level: 0–0. 5V. Configurable functions: 1. Can be used as a switch.2. Can be used as a pulse input channel (this DI is unavailable for motors with STO function).
DO (Digital Output)	Quantity: 1 unit; Output method: Supports optocoupler output, open collector; Maximum current 100mA, maximum voltage 55V (≥1kHz). 1. General-purpose DO port.2 Motor run/stop 3. Target reached.4. Alarm output. (When the motor status meets the above conditions, the DO switch status changes.)
DX (Digital Input / Output)	-
AI (Analog Input)	Quantity: 1; Input method: single-ended input; Signal type: voltage signal; Resolution: 12-bit; Voltage: -10~10V; Accuracy: reference error ≤1%; Configurable functions: dead zone, filtering, offset, scaling, direction.
Operating Temperature	0°C to 40°C
Operating Altitude	<1000m
Fault Alarm	Overvoltage, undervoltage, overtemperature, locked rotor, overload, overspeed
Servo Function	Soft limit, gain switching, S-curve planning, vibration suppression, parameter identification, online upgrade

Product Details

Application in Fully Automatic Laser Cutting Machine Equipment

The integrated PSMP60 series servo motor is specifically designed for automation equipment such as fully automatic laser cutting machines. Its compact, integrated structure significantly saves internal equipment space, providing more layout room for other critical components. The motor features an IP65 protection rating and integrates a driver, controller, and high-precision encoder into a single unit, with the STO (Safe Torque Off) function as standard, ensuring stable and reliable operation. With comprehensive functionality and excellent performance, this product is widely suitable for various automation equipment applications.

Downloads

Name	Type	Size	Update Date
NiMotion Integrated Motor Selection Guide	Selection Guide	12.8MB	2026-08-25
psmp-series-ethercat-canopen-rs485-User Manual	User Manual	5.8MB	2026-08-25
psmp60xx-xxx-0he-b-integrated-low-voltage-servo-motor	Drawing	245.7KB	2026-07-28
Communication Manual – Servo-EtherCAT	Communication Manual	3.7MB	2026-08-25
Motor Tuning Software – General Purpose	Software	84.5MB	2026-08-27
Communication Manual – Servo-modbus	Communication Manual	4.1MB	2026-08-13
Communication Manual – Servo-CANopen	Communication Manual	3.8MB	2026-08-25
