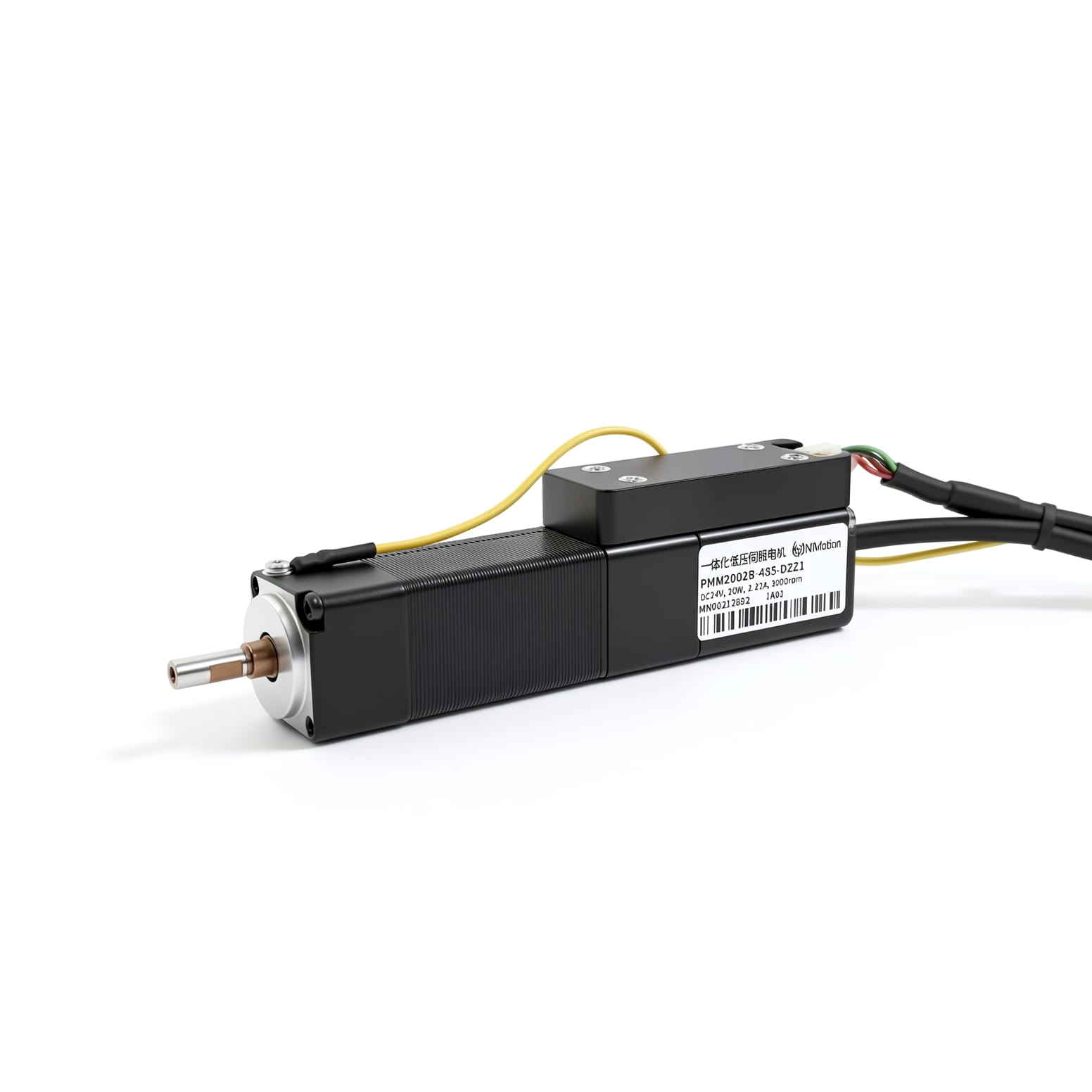

PMM20 Integrated DC Servo Motor

20mm flange integrated servo motor – integrates drive, control, and I/O, redefining traditional servo systems. Simplifies wiring, saves space, and delivers smarter integrated solutions for a wide range of compact automation equipment.

Features

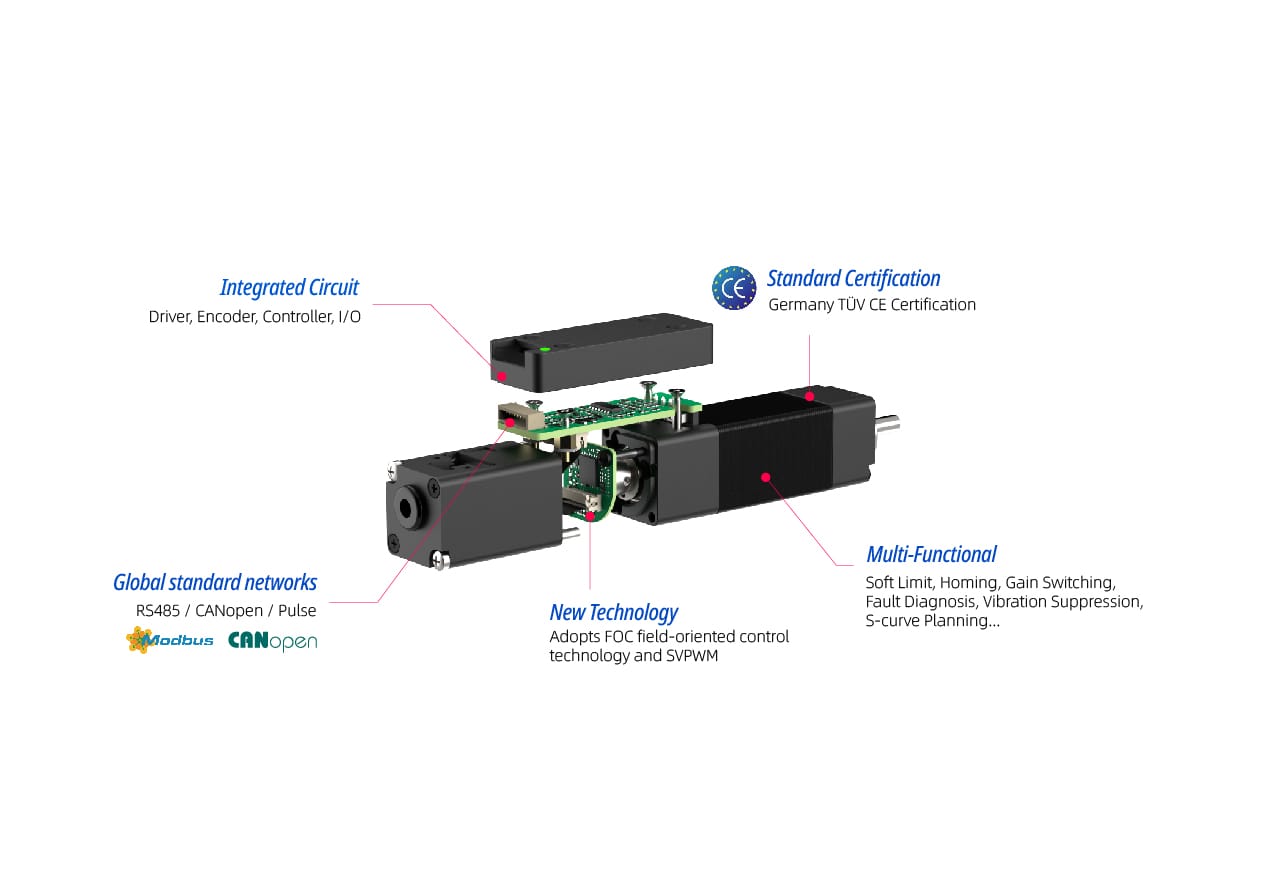

Ultra-compact 20mm flange
High-precision absolute magnetic encoder
High accuracy and stable operation

Pulse RS485 CANopen 20mm

Models & Specifications

Specs as rows · Models as columns

Specifications	PMM2002B-485-DZZ1	PMM2002B-CANopen-DZZ1	PMM2002D-485-DZZ1	PMM2002D-CANopen-DZZ1
Flange Size	20mm	20mm	20mm	20mm
Rated Torque	-	-	-	-
Brake	No Brake	No Brake	No Brake	No Brake
Encoder type	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	117-bit multi-turn absolute magnetic encoder	117-bit multi-turn absolute magnetic encoder
Rated Speed	3000 rpm	3000 rpm	3000 rpm	3000 rpm
Rated Power	20 W	20 W	20 W	20 W
Rated Voltage	24 VDC	24 VDC	24 VDC	24 VDC
Inertia	0.6×10^-7 kg·m²	0.6×10^-7 kg·m²	0.6×10^-7 kg·m²	0.6×10^-7 kg·m²
Voltage Range	12-30	12-30	12-30	12-30
Protection Level	-	-	-	-
STO Function	No	No	No	No
Body Length	95.5 mm	95.5 mm	95.5 mm	95.5 mm
Weight	0.17 kg	0.17 kg	0.17 kg	0.17 kg
Rated Current	2.32 A	2.32 A	2.32 A	2.32 A

* Scroll horizontally within the table area when the content is wide.

Specifications

Shaft Diameter	Φ4
Drive Mode	FOC magnetic field directional control technology and SVPWM
Encoder	17-bit single-turn absolute encoder (multi-turn absolute counting, automatic storage upon power failure)
CiA402 Mode	PP, VM, PV, PT, HM, IP, CSP, CSV, CST
NiMotion mode	Position mode: Pulse control, multi-segment position control, digital input control Speed mode: Pulse control, multi-segment speed control, digital input control Torque mode: Digital input control
Control Modes	CiA402 Mode,Manufacturer Mode
External Control Interface	DI – Non-isolated NPN Input,DI – Non-isolated PNP Input,DI – Non-isolated Switch Input,DI – Isolated Opto Single-Ended Input,DI – Isolated Opto Differential Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output
DI (Digital Input)	Quantity: 3; Compatible with source and drain types, input polarity can be configured; Low: 0~0.5V, high: 3.3~24V; Configuration function: Used as a switch
DO (Digital Output)	Quantity: 1; Output mode: MOS open leakage output; Allowable range of external voltage: DO1:15~30VDC, maximum load current 1.5A; High: 3.0~24VDC, low: 0~0.5VDC Configurable functions: Common DO port; 2. Motor operation stops; 3. Target reached; 4. Alarm output
DX (Digital Input / Output)	-
AI (Analog Input)	-
Operating Temperature	0°C to 40°C
Operating Altitude	<1000m
Fault Alarm	Overvoltage, undervoltage, overtemperature, locked rotor, overload, overspeed
Servo Function	Soft limit, gain switching, S-curve planning, vibration suppression, parameter identification, online upgrade

Product Details

Application in Wafer Probe Station Equipment

The integrated servo motor with a 20mm flange is one of the standard specifications among the world's smallest micro servo motors. With its ultra-compact size, light-load capability, fast response, and precise closed-loop control, it integrates a driver, controller, encoder, and I/O modules, while supporting both single-turn and multi-turn absolute magnetic encoders. It is specifically designed for precision equipment with extremely limited space, ultra-light loads, and demanding requirements for high speed and high responsiveness.

Ultra-Compact Size, Powerful Performance

The product features a refined, compact design with a frame width of just 20mm. It delivers light-load, high-response performance, making it especially suitable for various compact automation equipment such as pipetting workstations, semiconductor manufacturing, and pick-and-place machines.
