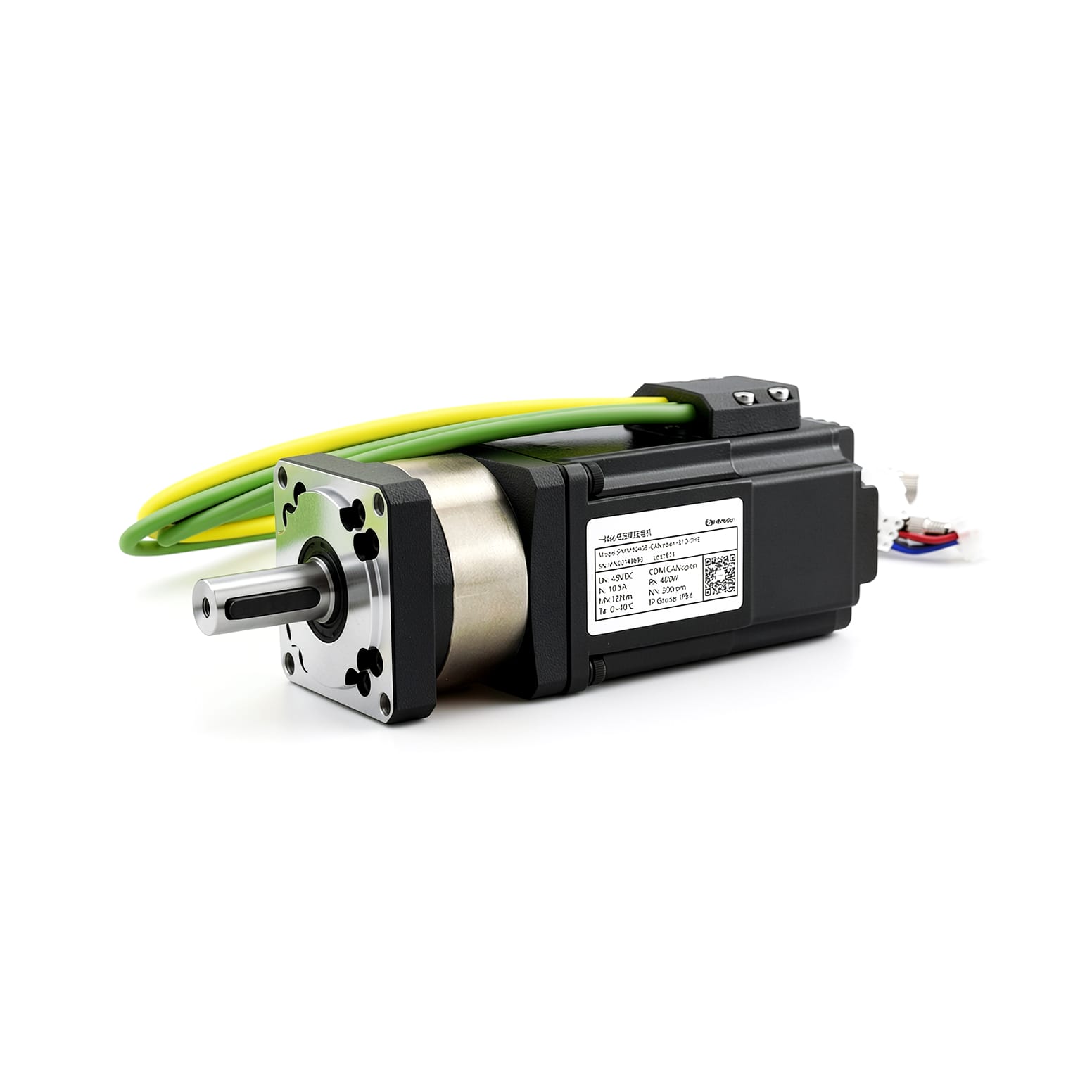

PSMH60 Integrated Geared Servo Motor

The PSMH Series integrated geared servo motor combines the integrated servo motor and precision gearbox into a single module, eliminating the need for an external reduction mechanism. Factory pre-calibrated for concentricity and backlash matching, it delivers significantly increased torque output while maintaining a more compact mounting size. Eliminates the need for gearbox selection, assembly, and alignment procedures.

Features

Integrated gear reducer
EtherCAT/CANopen/RS485
Customizable gear ratios

Models & Specifications

Specs as rows · Models as columns

Specifications	PSMH6040B	PSMH6040B-LP
Flange Size	60mm	60mm
Rated Speed	3000 rpm	3000 rpm
Encoder	17-bit single-turn absolute encoder	17-bit single-turn absolute encoder
Rated Power	400 W	400 W
Communication Method	CANopen,RS485,EtherCAT,脉冲,Pulse	CANopen,RS485,EtherCAT,脉冲,Pulse
Rated Voltage	48 VDC	48 VDC
Rated Current	11.5 A	11.5 A
Torque	1.27 N·m	1.27 N·m
Inertia	0.48×10^-4 kg·m²	0.48×10^-4 kg·m²
Brake	No	No
STO Function	No	No
Protection Level	-	-
Body Length	155.8 mm	155.8 mm
Weight	1.889 kg	1.889 kg

* Scroll horizontally within the table area when the content is wide.

Specifications

Shaft Diameter	Φ14
Voltage Range	16-52VDC
Drive Mode	Adopting FOC field-oriented control technology and SVPWM
Encoder	17-bit single-turn absolute encoder (multi-turn absolute counting, automatic storage upon power failure)
NiMotion Mode	Position mode: Pulse control, multi-segment position control, digital input control Speed mode: Analog speed control, digital input control Torque mode: Digital input control
CiA402 Mode	CiA402 (PP, VM, PV, PT, HM, IP, CSP, CSV, CST); NiMotion modes
DI (Digital Input)	Quantity: 3 units; high-speed unidirectional optocoupler; supports maximum PWM pulse frequency: 2MHz; compatible with PNP, NPN, and differential input; high level: 5–24V, low level: 0–0. 5V. Configurable functions:1 Can be used as a switch.2 Can be used as a pulse input channel. (this DI is unavailable for motors with STO function)
DO (Digital Output)	Quantity: 1 2A@52V, output method: MOS open-drain output; configurable functions: 1. General-purpose DO port; 2. Motor run/stop; 3. Target reached; 4. Alarm output (DO switch status changes when motor status meets the above conditions).
AI (Analog Input)	Quantity: 1; Input method: single-ended input; Signal type: voltage signal; Resolution: 12-bit; Voltage: 0~10V; Accuracy: reference error ≤1%; Configurable functions: dead zone, filtering, offset, scaling, direction.
Operating Temperature	0°C to 40°C
Operating Altitude	<1000m
Fault Alarm	Overvoltage, undervoltage, overtemperature, locked rotor, overload, overspeed
Servo Function	Soft limit, gain switching, S-curve planning, vibration suppression, parameter identification, online upgrade
