PSMP130

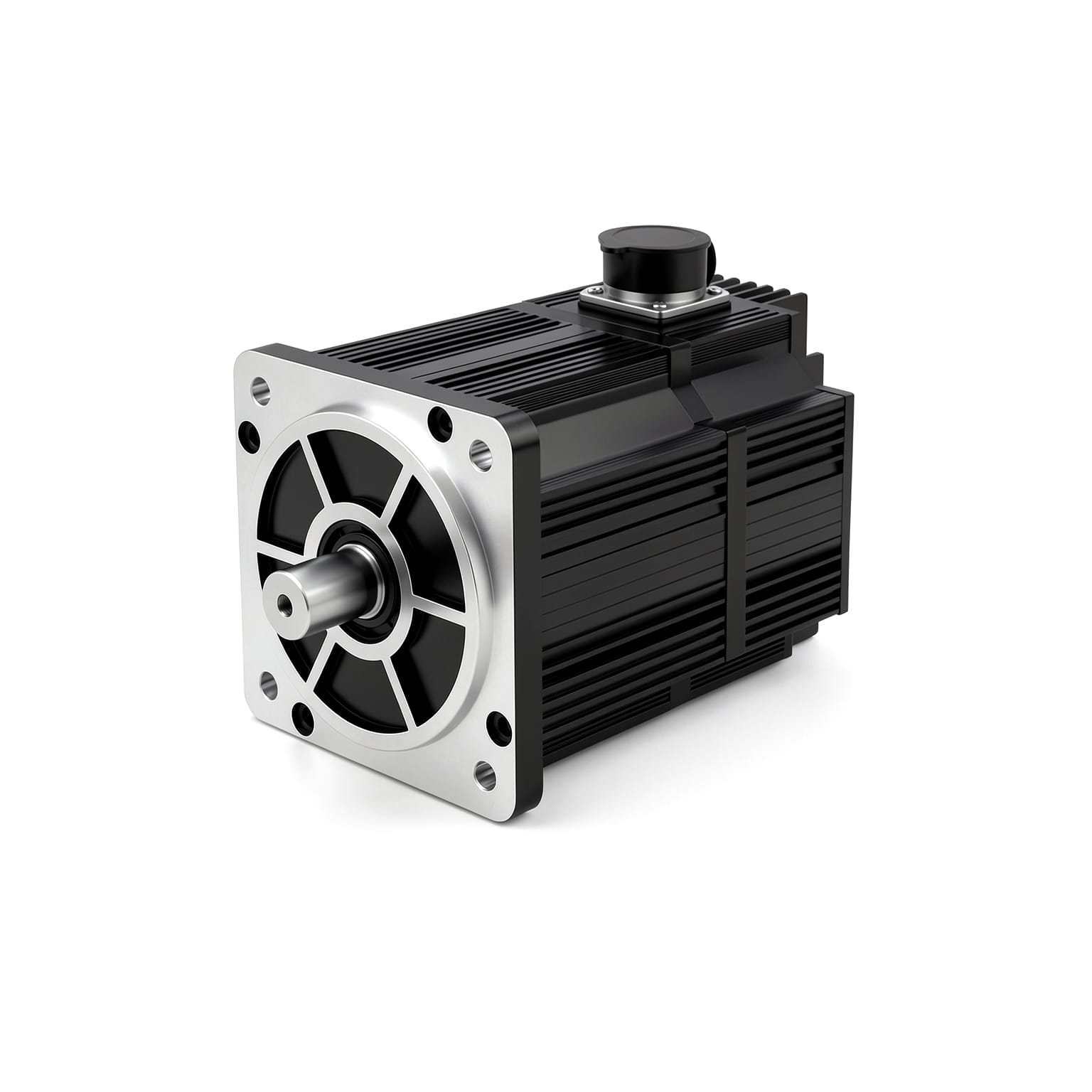

PSMP130 Integrated Protection-STO DC Servo Motor

The PSMP130 Series integrated servo motor delivers high torque output and high-speed performance with smooth and stable operation. Its IP65 protection rating withstands dust, oil, and contaminants, while the STO (Safe Torque Off) function ensures equipment safety. A built-in cooling fan in the rear cover provides active noise reduction and effectively suppresses temperature rise, ensuring stable and reliable performance during prolonged high-load operation.

Features

IP65 protection rating
High power 1500W
Optional brake and STO function available

Pulse EtherCAT RS485 CANopen 130mm

Models & Specifications

Specs as rows · Models as columns

Specifications	PSMP1301K5B-485-0HS	PSMP1301K5B-COE-0HS	PSMP1301K5B-CANopen-0HS	PSMP1301K5B-485-0HSB	PSMP1301K5B-COE-0HSB	PSMP1301K5B-CANopen-0HSB	PSMP1301K5B-485S-0HS	PSMP1301K5B-COE-S-0HS	PSMP1301K5B-CANopenS-0HS	PSMP1301K5B-485-S-0HSB	PSMP1301K5B-COE-S-0HSB	PSMP1301K5B-CANopen-S-0HSB	PSMP1301K5D-485-0HS	PSMP1301K5D-COE-0HS	PSMP1301K5D-CANopen-0HS	PSMP1301K5D-485-0HSB	PSMP1301K5D-COE-0HSB	PSMP1301K5D-CANopen-0HSB	PSMP1301K5D-485S-0HS	PSMP1301K5D-COE-S-0HS	PSMP1301K5D-CANopenS-0HS	PSMP1301K5D-485-S-0HSB	PSMP1301K5D-COE-S-0HSB	PSMP1301K5D-CANopen-S-0HSB
Flange Size	130mm	130mm	130mm	130mm	130mm	130mm	130mm	130mm	130mm	130mm	130mm	130mm	130mm	130mm	130mm	130mm	130mm	130mm	130mm	130mm	130mm	130mm	130mm	130mm
Brake	No Brake	No Brake	No Brake	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	No Brake	No Brake	No Brake	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	No Brake	No Brake	No Brake	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	No Brake	No Brake	No Brake	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic
Encoder type	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder	17-bit multi-turn absolute magnetic encoder
Rated Speed	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm
Rated Power	1500 W	1500 W	1500 W	1500 W	1500 W	1500 W	1500 W	1500 W	1500 W	1500 W	1500 W	1500 W	1500 W	1500 W	1500 W	1500 W	1500 W	1500 W	1500 W	1500 W	1500 W	1500 W	1500 W	1500 W
Rated Voltage	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC
Inertia	12×10^-4 kg·m²	12×10^-4 kg·m²	12×10^-4 kg·m²	12×10^-4 kg·m²	12×10^-4 kg·m²	12×10^-4 kg·m²	12×10^-4 kg·m²	12×10^-4 kg·m²	12×10^-4 kg·m²	12×10^-4 kg·m²	12×10^-4 kg·m²	12×10^-4 kg·m²	12×10^-4 kg·m²	12×10^-4 kg·m²	12×10^-4 kg·m²	12×10^-4 kg·m²	12×10^-4 kg·m²	12×10^-4 kg·m²	12×10^-4 kg·m²	12×10^-4 kg·m²	12×10^-4 kg·m²	12×10^-4 kg·m²	12×10^-4 kg·m²	12×10^-4 kg·m²
Voltage Range	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52
Protection Level	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65
STO Function	No	No	No	No	No	No	Supported	Supported	Supported	Supported	Supported	Supported	No	No	No	No	No	No	Supported	Supported	Supported	Supported	Supported	Supported
Body Length	195.5 mm	195.5 mm	195.5 mm	246.5 mm	246.5 mm	246.5 mm	195.5 mm	195.5 mm	195.5 mm	246.5 mm	246.5 mm	246.5 mm	195.5 mm	195.5 mm	195.5 mm	246.5 mm	246.5 mm	246.5 mm	195.5 mm	195.5 mm	195.5 mm	246.5 mm	246.5 mm	246.5 mm
Weight	6.5 kg	6.5 kg	6.5 kg	9.2 kg	9.2 kg	9.2 kg	6.5 kg	6.5 kg	6.5 kg	9.2 kg	9.2 kg	9.2 kg	6.5 kg	6.5 kg	6.5 kg	9.2 kg	9.2 kg	9.2 kg	6.5 kg	6.5 kg	6.5 kg	9.2 kg	9.2 kg	9.2 kg
Rated Current	45 A	45 A	45 A	45 A	45 A	45 A	45 A	45 A	45 A	45 A	45 A	45 A	45 A	45 A	45 A	45 A	45 A	45 A	45 A	45 A	45 A	45 A	45 A	45 A

* Scroll horizontally within the table area when the content is wide.

Specifications

Shaft Diameter	Φ22
Drive Mode	Adopting FOC field-oriented control technology and SVPWM
Encoder	17-bit single-turn absolute encoder (multi-turn absolute counting, automatic storage upon power failure) or 17-bit multi-turn absolute encoder (external battery backup)
CiA402 Mode	PP, VM, PV, PT, HM, IP, CSP, CSV, CST
NiMotion mode	Position mode: Pulse control, multi-segment position control, digital input control, analog input control Speed mode: Pulse control, multi-segment speed control, digital input control, analog input control Torque mode: Digital input control, analog input control
Control Modes	CiA402 Mode,Manufacturer Mode
External Control Interface	DI – Non-isolated NPN Input,DI – Non-isolated PNP Input,DI – Non-isolated Switch Input,DI – Isolated Opto Single-Ended Input,DI – Isolated Opto Differential Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output,AI – ±10V Analog Input
DI (Digital Input)	Quantity: 3 units; high-speed unidirectional optocoupler; supports maximum PWM pulse frequency: 2MHz; compatible with PNP, NPN, and differential input; high level: 5–24V, low level: 0–0. 5V. Configurable functions 1. Can be used as a switch.2. Can be used as a pulse input channe,(this DI is unavailable for motors with STO function).
DO (Digital Output)	Quantity: 1 unit; Output method: Supports optocoupler output, open collector; Maximum current 100mA, maximum voltage 55V (≥1kHz). 1.General-purpose DO port.2 Motor run/stop 3. Target reached.4.Alarm output.(When the motor status meets the above conditions, the DO switch status changes.)
DX (Digital Input / Output)	-
AI (Analog Input)	Quantity: 1; Input method: single-ended input; Signal type: voltage signal; Resolution: 12-bit; Voltage: -10~10V; Accuracy: reference error ≤1%; Configurable functions: dead zone, filtering, offset, scaling, direction.
Operating Temperature	0°C to 40°C
Operating Altitude	<1000m
Fault Alarm	Overvoltage, undervoltage, overtemperature, locked rotor, overload, overspeed
Servo Function	Soft limit, gain switching, S-curve planning, vibration suppression, parameter identification, online upgrade

Product Details

Application of filling machine equipment

The integrated motor is applied to the filling machine equipment. It has a small size, and the servo motor meets high precision, high speed, high reliability requirements as well as those for specific industries. It supports rapid start-stop and speed adjustment to match efficient production. The PSMP series is equipped with IP65 protection to prevent liquid and dust from entering.

Downloads

Name	Type	Size	Update Date
NiMotion Integrated Motor Selection Guide	Selection Guide	12.8MB	2026-08-25
psmp130-series-ethercat-canopen-rs485-User Manual	User Manual	2.5MB	2026-08-17
Communication Manual – Servo-EtherCAT	Communication Manual	3.7MB	2026-08-25
Communication Manual – Servo-modbus	Communication Manual	4.1MB	2026-08-13
Communication Manual – Servo-CANopen	Communication Manual	3.8MB	2026-08-25
psmp1301k5b-xxx-0hsb-integrated-servo-motor	Drawing	297.7KB	2026-07-28
psmp1301k5-xxx-0hs-integrated-servo-motor	Drawing	287.1KB	2026-07-28
psmp1301k5-xxx-0he-integrated-servo-motor	Drawing	286.1KB	2026-07-28
