STM28

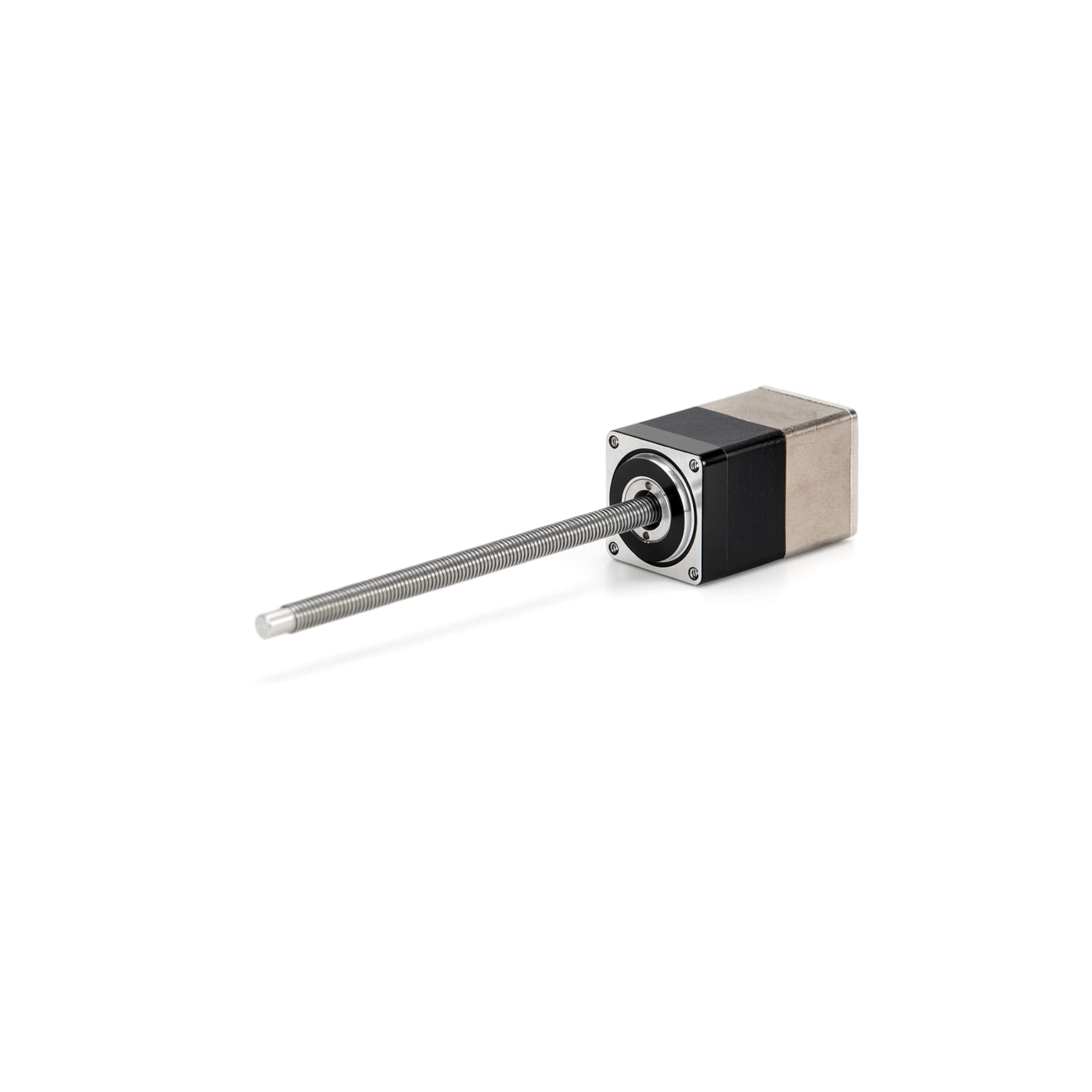

STM28-M Integrated Leadscrew Stepper Motor

Integrated lead screw stepper servo motor with 28mm flange, CANopen/RS485, 2500-line encoder, thrust up to 150N.

Features

Integrated lead screw
CANopen/RS485
FOC and SVPWM technology
Multiple thread leads available

Models & Specifications

Specs as rows · Models as columns

Specifications	STM2834B-M (Lead 0.635mm)	STM2834B-M (Lead 1.270mm)	STM2834B-M (Lead 2.540mm)	STM2834B-M (Lead 5.080mm)	STM2834B-M (Lead 10.16mm)	STM2845B-M (Lead 0.635mm)	STM2845B-M (Lead 1.270mm)	STM2845B-M (Lead 2.540mm)	STM2845B-M (Lead 5.080mm)	STM2845B-M (Lead 10.16mm)
Flange Size	28mm	28mm	28mm	28mm	28mm	28mm	28mm	28mm	28mm	28mm
Encoder typ	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder
Communication Method	CANopen,RS485	CANopen,RS485	CANopen,RS485	CANopen,RS485	CANopen,RS485	CANopen,RS485	CANopen,RS485	CANopen,RS485	CANopen,RS485	CANopen,RS485
Thrust	105 N·m	85 N·m	50 N·m	30 N·m	15 N·m	145 N·m	125 N·m	90 N·m	60 N·m	30 N·m
Load	70 N	60 N	35 N	20 N	12 N	100 N	84 N	70 N	40 N	24 N
Screw Lead	0.635mm	1.270mm	2.540mm	5.080mm	10.16mm	0.635mm	1.270mm	2.540mm	5.080mm	10.16mm
Step Length	[email protected]°mm	[email protected]°mm	[email protected]°mm	[email protected]°mm	[email protected]°mm	[email protected]°mm	[email protected]°mm	[email protected]°mm	[email protected]°mm	[email protected]°mm
Self-locking Force	100 N	40 N	10 N	1 N	0 N	100 N	40 N	10 N	1 N	0 N
Holding Torque	0.06 N·m	0.06 N·m	0.06 N·m	0.06 N·m	0.06 N·m	0.10 N·m	0.10 N·m	0.10 N·m	0.10 N·m	0.10 N·m
Body Length	48 mm	48 mm	48 mm	48 mm	48 mm	58 mm	58 mm	58 mm	58 mm	58 mm

* Scroll horizontally within the table area when the content is wide.

Specifications

Shaft Diameter	No
Voltage Range	10-30 VDC
Encoder	2500-line single-turn absolute magnetic encoder
NiMotion Mode	Position mode: Pulse control, multi-segment position control, digital input control Speed mode: Analog speed control, digital input control Torque mode: Digital input control
CIA402 Mode	PP, VM, PV, PT, HM, IP, CSP, CSV, CST
Drive Mode	Utilizes FOC (Field-Oriented Control) technology and SVPWM
DI (Digital Input)	Quantity: 3 units; Frequency ≤200kHz; Supports 5V–30V dual-level input
DO (Digital Output)	Quantity: 2 units, 0.5A@30V, maximum pulse frequency 1MHz; Output method: MOS open-drain output, NPN;Configurable functions: 1. Motor run/stop; 2. Target reached; 3. Alarm output
AI (Analog Input)	-
Operating Temperature	0°C to 40°C
Operating Altitude	<1000m
Fault Alarm	Overvoltage, undervoltage, overtemperature, locked rotor
Servo Function	Soft limit, gain switching, S-curve planning, vibration suppression, parameter identification, online upgrade

Downloads

Name	Type	Size	Update Date
NiMotion Integrated Lead-Screw-Motor Selection Guide	Selection Guide	2.3MB	2026-08-25
stm28xxb-m-1zbg-integrated-lead-screw-motor	Drawing	215.1KB	2026-07-28
Communication Manual – pmm60l/blm/stm-modbus	Communication Manual	4.0MB	2026-08-27
Motor Tuning Software – General Purpose	Software	84.5MB	2026-08-27
stm28xxb-m-1zb-integrated-lead-screw-motor	Drawing	208.0KB	2026-07-28
Communication Manual – pmm60l/blm/stm-CANopen	Communication Manual	3.8MB	2026-08-27
