STM28-MC Integrated Stepper Servo Motor

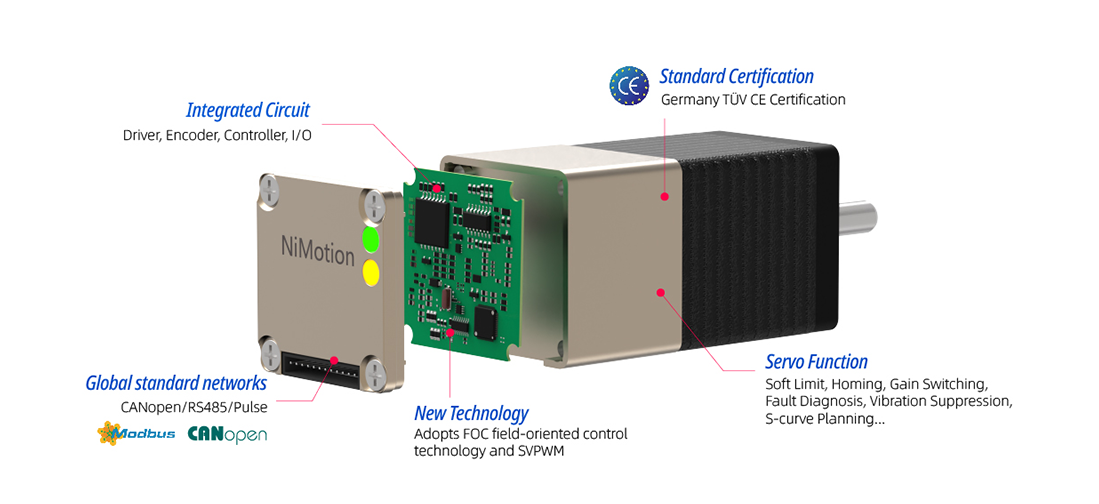

28mm flange integrated stepper servo motor – delivering closed-loop servo control algorithms within a compact footprint. Offers significantly improved positioning accuracy, low heat generation, and excellent speed stability. Ideal for a wide range of compact automation equipment.
Features
- 28mm flange size
- Built-in absolute magnetic encoder
- CANopen / RS485 / Pulse control
Models & Specifications
| Specifications | STM2832B-485-MC-0FS | STM2832B-CANopen-MC-0FS | STM2851B-485-MC-0FS | STM2851B-CANopen-MC-0FS |
|---|---|---|---|---|
| Flange Size | 28mm | 28mm | 28mm | 28mm |
| Holding Torque | 0.05 N·m | 0.05 N·m | 0.1 N·m | 0.1 N·m |
| Brake | No Brake | No Brake | No Brake | No Brake |
| Encoder type | 17-bit single-turn absolute magnetic encoder | 17-bit single-turn absolute magnetic encoder | 17-bit single-turn absolute magnetic encoder | 17-bit single-turn absolute magnetic encoder |
| Rated Voltage | 24 VDC | 24 VDC | 24 VDC | 24 VDC |
| Voltage Range | 12-30VDC | 12-30VDC | 12-30VDC | 12-30VDC |
| Inertia | 9×10^-7 kg·m² | 9×10^-7 kg·m² | 18×10^-7 kg·m² | 18×10^-7 kg·m² |
| Rated Current | 1.0 A | 1.0 A | 1.0 A | 1.0 A |
| Body Length | 47 mm | 47 mm | 65.5 mm | 65.5 mm |
| Weight | 0.15 kg | 0.15 kg | 0.23 kg | 0.23 kg |
* Scroll horizontally within the table area when the content is wide.
Specifications
| Shaft Diameter | Φ5 |
| Number Of Phases | 2 |
| Step Angle | 1.8° |
| Encoder | 17-bit single-turn absolute encoder (multi-turn absolute counting with automatic storage upon power failure) |
| Control Modes | CiA402 Mode,Manufacturer Mode |
| External Control Interface | DI – Non-isolated NPN Input,DI – Non-isolated PNP Input,DI – Non-isolated Switch Input,DI – Isolated Opto Single-Ended Input,DI – Isolated Opto Differential Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output |
| CiA402 Mode | PP, VM, PV, PT, HM, IP, CSP, CSV, CST |
| DI (Digital Input) | Quantity: 3; Supports PWM pulse input, maximum pulse frequency 1.2 MHz. Logic 1 signal: 5 - 24; Logic 0 signal: 0 - 2V; Configurable functions: 1. Enable 2. Positive and negative limit 3. Origin switch 4. Alarm reset 5. Pause 6. Multi-segment operation instruction switching |
| DO (Digital Output) | Quantity: 2; Output mode: MOS open-drain output, maximum load current 100mA, maximum voltage 30V; Configurable functions: 1. Regular DO; 2. The motor stops running; 3. Goal achieved; 4. Alarm output |
| AI (Analog Input) | - |
| Operating Temperature | 0°C to 40°C |
| Operating Altitude | <1000m |
| Fault Alarm | Overvoltage, undervoltage, overheat, locked rotor |
| Servo Function | Soft limit, gain switching, S-curve planning, vibration suppression, parameter identification, online upgrade |
Product Details
Downloads
Companion Products

Integrated motor power/communication/IO bus cable.

USB to CAN converter with isolation, IP65 protection, and secondary development SDK support.

USB to RS485 converter with active termination, isolation, IP65 protection, and secondary development SDK support.
FAQ
Low‑inertia motors have very low rotor inertia, offering faster acceleration and better dynamic response. High‑inertia motors provide higher torque accuracy, lower speed fluctuation, and smoother operation – they are suitable for applications that prioritise running stability.
Microstepping is essentially an electronic damping technique, primarily designed to reduce or eliminate low‑frequency vibration. Improved positional resolution is a secondary benefit. Different manufacturers’ microstepping drivers can vary greatly in accuracy, and higher microstepping numbers are harder to control precisely.
This is due to the motor’s pull‑in rate – the maximum pulse frequency at which it can start from standstill without losing steps. If the pulse frequency exceeds this rate, the motor cannot start properly and may lose steps or stall. The solution is to use an acceleration ramp: start at a low frequency and gradually increase to the target high frequency. Integrated stepper motors allow you to set acceleration and deceleration parameters freely.
When the motor rotates, the inductance in each phase winding generates a back‑EMF. The higher the frequency, the greater the back‑EMF, which reduces the phase current and thus lowers the torque.
Excessive temperature can demagnetise the magnetic material, reducing torque and causing step loss. The demagnetisation point is generally above 130°C, some up to 200°C. Therefore, a surface temperature of 80‑90°C is perfectly normal for a stepper motor. The most common insulation class is Class B, with a rated operating temperature up to 130°C.
