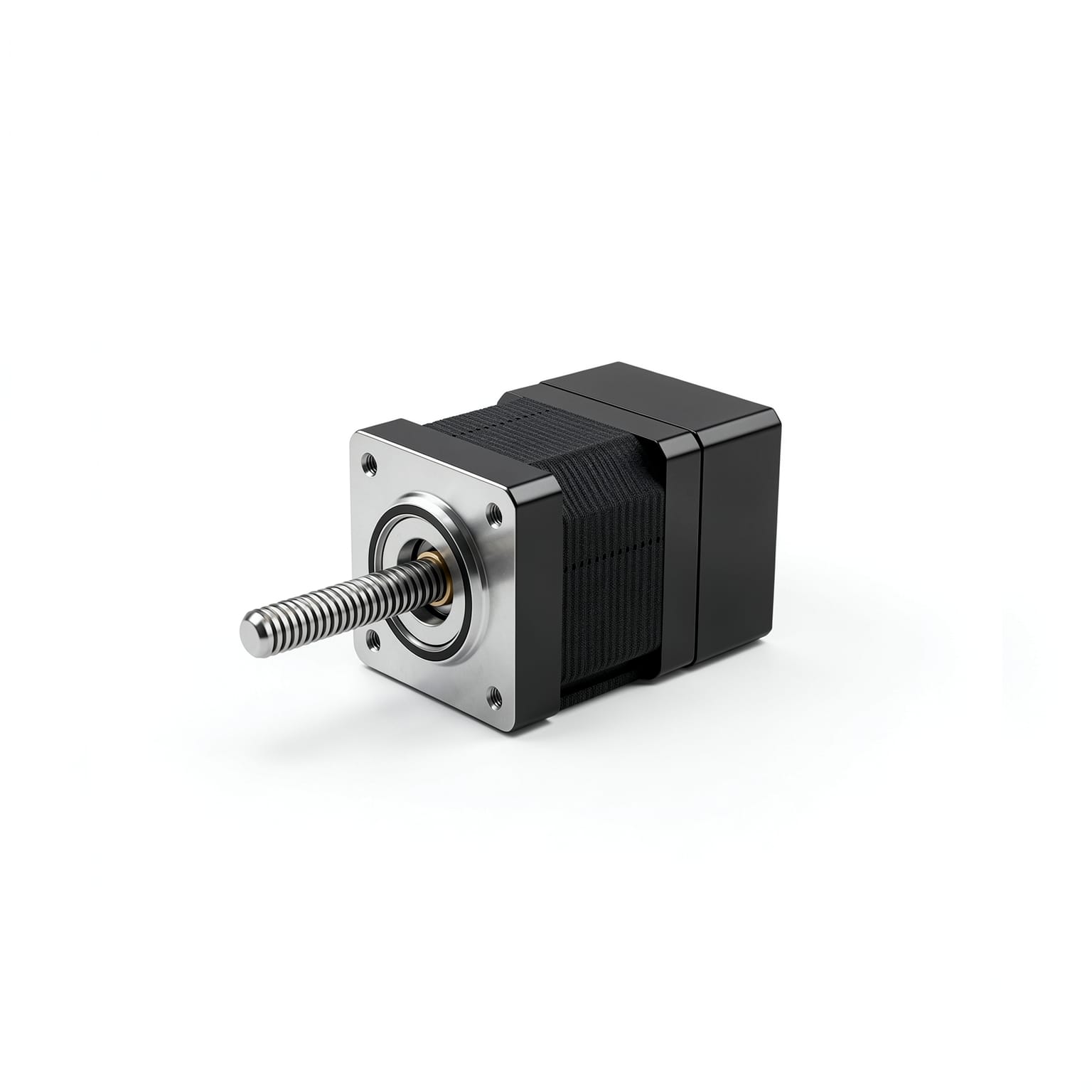

STM35-M Integrated Leadscrew Stepper Motor

Integrated lead screw stepper servo motor with 35mm flange, CANopen/RS485, 17bit encoder, thrust up to 300N.

Features

Integrated lead screw
CANopen/RS485
FOC and SVPWM technology
Multiple thread leads available

Models & Specifications

Specs as rows · Models as columns

Specifications	STM3534B-M (Lead 1.270mm)	STM3534B-M (Lead 2.540mm)	STM3534B-M (Lead 3.175mm)	STM3534B-M (Lead 6.350mm)	STM3534B-M (Lead 12.70mm)	STM3534B-M (Lead 25.40mm)	STM3548B-M (Lead 1.270mm)	STM3548B-M (Lead 2.540mm)	STM3548B-M (Lead 3.175mm)	STM3548B-M (Lead 6.350mm)	STM3548B-M (Lead 12.70mm)	STM3548B-M (Lead 25.40mm)
Flange Size	3517-bit single-turn encodermm	35mm	35mm	35mm	35mm	35mm	35mm	35mm	35mm	35mm	35mm	35mm
Encoder typ	17-bit single-turn absolute encoder	17-bit single-turn absolute encoder	17-bit single-turn absolute encoder	17-bit single-turn absolute encoder	17-bit single-turn absolute encoder	17-bit single-turn absolute encoder	17-bit single-turn absolute encoder	17-bit single-turn absolute encoder	17-bit single-turn absolute encoder	17-bit single-turn absolute encoder	17-bit single-turn absolute encoder	17-bit single-turn absolute encoder
Communication Method	CANopen,RS485	CANopen,RS485	CANopen,RS485	CANopen,RS485	CANopen,RS485	CANopen,RS485	CANopen,RS485	CANopen,RS485	CANopen,RS485	CANopen,RS485	CANopen,RS485	CANopen,RS485
Thrust	150 N·m	110 N·m	100 N·m	80 N·m	35 N·m	25 N·m	210 N·m	155 N·m	145 N·m	110 N·m	40 N·m	35 N·m
Load	91 N	63 N	58 N	42 N	20 N	10 N	157 N	109 N	100 N	72 N	35 N	17 N
Screw Lead	1.270mm	2.540mm	3.175mm	6.350mm	12.70mm	25.40mm	1.270mm	2.540mm	3.175mm	6.350mm	12.70mm	25.40mm
Step Length	[email protected]°mm	[email protected]°mm	[email protected]°mm	[email protected]°mm	[email protected]°mm	[email protected]°mm	[email protected]°mm	[email protected]°mm	[email protected]°mm	[email protected]°mm	[email protected]°mm	[email protected]°mm
Self-locking Force	150 N	70 N	40 N	15 N	3 N	0 N	150 N	70 N	40 N	15 N	3 N	0 N
Holding Torque	0.18 N·m	0.18 N·m	0.18 N·m	0.18 N·m	0.18 N·m	0.18 N·m	0.35 N·m	0.35 N·m	0.35 N·m	0.35 N·m	0.35 N·m	0.35 N·m
Body Length	50 mm	50 mm	50 mm	50 mm	50 mm	50 mm	64 mm	64 mm	64 mm	64 mm	64 mm	64 mm

* Scroll horizontally within the table area when the content is wide.

Specifications

Shaft Diameter	No
Voltage Range	10-30 VDC
Encoder	17-bit single-turn absolute encoder (multi-turn absolute counting, automatic storage upon power failure)
NiMotion Mode	Position mode: Pulse control, multi-segment position control, digital input control Speed mode: Analog speed control, digital input control Torque mode: Digital input control
CIA402 Mode	PP, VM, PV, PT, HM, IP, CSP, CSV, CST
Drive Mode	Utilizes FOC (Field-Oriented Control) technology and SVPWM
DI (Digital Input)	Quantity: 3 units; Frequency ≤200kHz; Supports 5V–30V dual-level input
DO (Digital Output)	Quantity:2, MOS open-drain, 0.5A@30V, max pulse 1MHz
AI (Analog Input)	-
Operating Temperature	0°C to 40°C
Operating Altitude	<1000m
Fault Alarm	Overvoltage, undervoltage, overtemperature, locked rotor
Servo Function	Soft limit, gain switching, S-curve planning, vibration suppression, parameter identification, online upgrade

Downloads

Name	Type	Size	Update Date
NiMotion Integrated Lead-Screw-Motor Selection Guide	Selection Guide	2.3MB	2026-08-25
stm35xxb-m-1zbg-integrated-lead-screw-motor	Drawing	367.2KB	2026-07-28
Communication Manual – pmm60l/blm/stm-modbus	Communication Manual	4.0MB	2026-08-27
Motor Tuning Software – General Purpose	Software	84.5MB	2026-08-27
stm35xxb-m-1zb-integrated-lead-screw-motor	Drawing	393.3KB	2026-07-28
Communication Manual – pmm60l/blm/stm-CANopen	Communication Manual	3.8MB	2026-08-27
