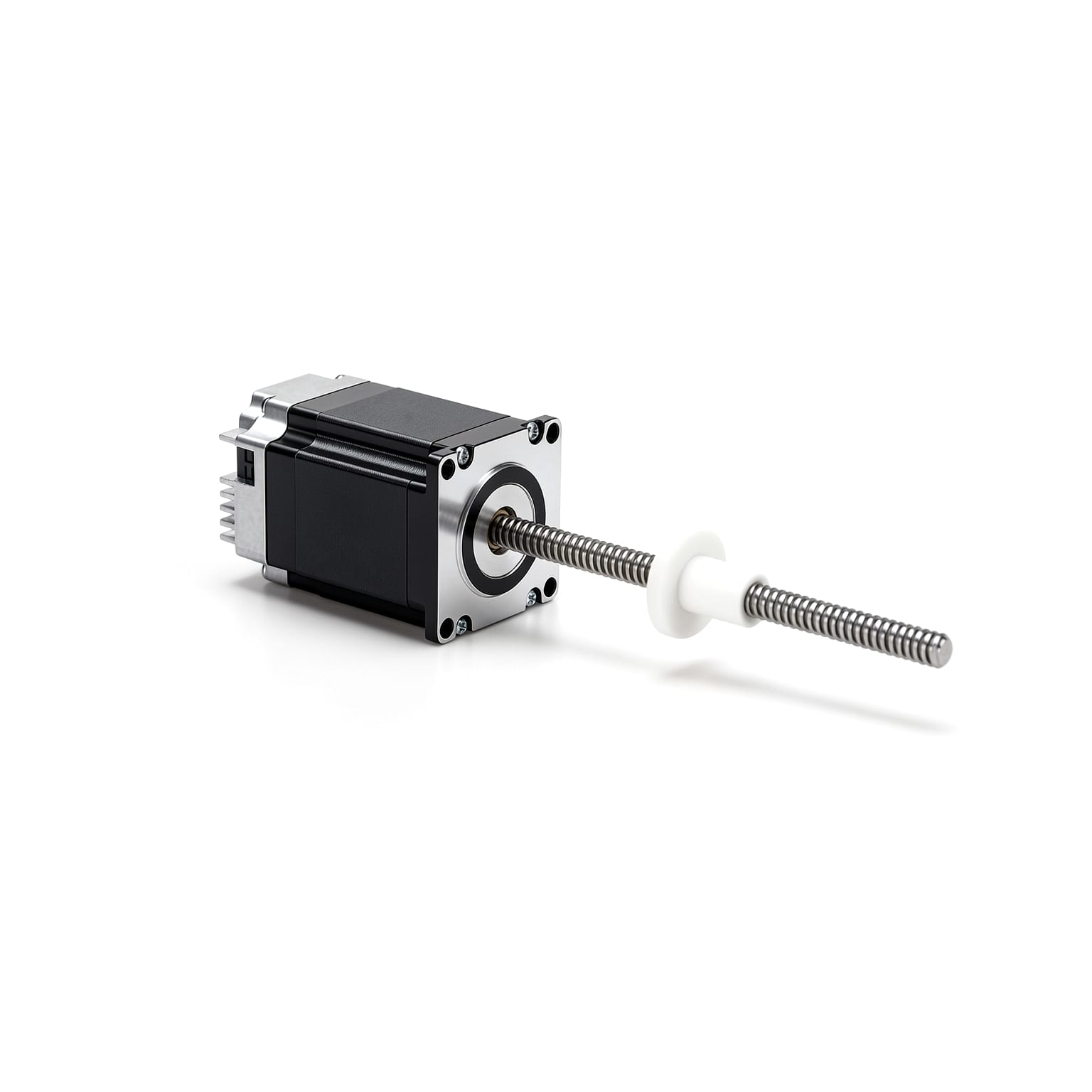

STM57-M Integrated Leadscrew Stepper Motor

Integrated lead screw stepper servo motor with 57mm flange, CANopen/RS485, 2500-line encoder, thrust up to 1180N.

Features

Integrated lead screw
CANopen/RS485
FOC and SVPWM technology
Analog input (0-10V)
High thrust options

RS485 CANopen 57mm

Models & Specifications

Specs as rows · Models as columns

Specifications	STM5745B-485-M-1ZB (Lead 1.270mm)	STM5745B-485-M-1ZB (Lead 2.540mm)	STM5745B-485-M-1ZB (Lead 5.080mm)	STM5745B-485-M-1ZB (Lead 10.16mm)	STM5745B-485-M-1ZB (Lead 25.40mm)	STM5765B-485-M-1ZB (Lead 1.270mm)	STM5765B-485-M-1ZB (Lead 2.540mm)	STM5765B-485-M-1ZB (Lead 5.080mm)	STM5765B-485-M-1ZB (Lead 10.16mm)	STM5765B-485-M-1ZB (Lead 25.40mm)	STM5745B-CANopen-M-1ZB (Lead 1.270mm)	STM5745B-CANopen-M-1ZB (Lead 2.540mm)	STM5745B-CANopen-M-1ZB (Lead 5.080mm)	STM5745B-CANopen-M-1ZB (Lead 10.16mm)	STM5745B-CANopen-M-1ZB (Lead 25.40mm)	STM5765B-CANopen-M-1ZB (Lead 1.270mm)	STM5765B-CANopen-M-1ZB (Lead 2.540mm)	STM5765B-CANopen-M-1ZB (Lead 5.080mm)	STM5765B-CANopen-M-1ZB (Lead 10.16mm)	STM5765B-CANopen-M-1ZB (Lead 25.40mm)
Flange Size	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm
Body Length	65 mm	65 mm	65 mm	65 mm	65 mm	85 mm	85 mm	85 mm	85 mm	85 mm	65 mm	65 mm	65 mm	65 mm	65 mm	85 mm	85 mm	85 mm	85 mm	85 mm
Encoder typ	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder
Thrust	590 N·m	500 N·m	300 N·m	140 N·m	50 N·m	1180 N·m	900 N·m	500 N·m	250 N·m	80 N·m	590 N·m	500 N·m	300 N·m	140 N·m	50 N·m	1180 N·m	900 N·m	500 N·m	250 N·m	80 N·m
Load	440 N	360 N	216 N	90 N	30 N	935 N	700 N	350 N	160 N	50 N	440 N	360 N	216 N	90 N	30 N	935 N	700 N	350 N	160 N	50 N
Screw Lead	1.27mm	2.54mm	5.08mm	10.16mm	25.4mm	1.27mm	2.54mm	5.08mm	10.16mm	25.4mm	1.27mm	2.54mm	5.08mm	10.16mm	25.4mm	1.27mm	2.54mm	5.08mm	10.16mm	25.4mm
Step Length @1.8°	0.0063mm	0.0127mm	0.0254mm	0.0508mm	1.27mm	0.0635mm	0.127mm	0.0254mm	0.0508mm	1.27mm	0.0063mm	0.0127mm	0.0254mm	0.0508mm	1.27mm	0.0635mm	0.127mm	0.0254mm	0.0508mm	1.27mm
Self-locking Force	2000 N	1600 N	55 N	35 N	7 N	2000 N	1600 N	55 N	35 N	7 N	2000 N	1600 N	55 N	35 N	7 N	2000 N	1600 N	55 N	35 N	7 N
Holding Torque	0.8 N·m	0.8 N·m	0.8 N·m	0.8 N·m	0.8 N·m	1.7 N·m	1.7 N·m	1.7 N·m	1.7 N·m	1.7 N·m	0.8 N·m	0.8 N·m	0.8 N·m	0.8 N·m	0.8 N·m	1.7 N·m	1.7 N·m	1.7 N·m	1.7 N·m	1.7 N·m

* Scroll horizontally within the table area when the content is wide.

Specifications

Voltage Range	16-52 VDC
Encoder	2500-line single-turn absolute magnetic encoder
CIA402 Mode	PP, VM, PV, PT, HM, IP, CSP, CSV, CST
Drive Mode	Utilizes FOC (Field-Oriented Control) technology and SVPWM
DI (Digital Input)	Quantity: 3 High-speed bidirectional optocoupler, maximum PWM pulse frequency 2MHz, can be connected to an external DC power supply: 12-24V; Configurable functions: Can be used as a switch or as a pulse input channel.
Control Modes	CiA402 Mode,Manufacturer Mode
External Control Interface	DI – Non-isolated NPN Input,DI – Non-isolated PNP Input,DI – Non-isolated Switch Input,DI – Isolated Opto Single-Ended Input,DI – Isolated Opto Differential Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output,AI – 0–10V Analog Input
DO (Digital Output)	Quantity: 1 2A@52V, output method: MOS open-drain output; configurable functions: 1. General-purpose DO port; 2. Motor run/stop; 3. Target reached; 4. Alarm output (DO switch status changes when motor status meets the above conditions).
AI (Analog Input)	Quantity: 1; Input method: single-ended input; Signal type: voltage signal; Resolution: 12-bit; Voltage: 0~10V; Accuracy: reference error ≤1%; Configurable functions: dead zone, filtering, offset, scaling, direction.
Operating Temperature	0°C to 40°C
Operating Altitude	<1000m
Fault Alarm	Overvoltage, undervoltage, overtemperature, locked rotor
Servo Function	Soft limit, gain switching, S-curve planning, vibration suppression, parameter identification, online upgrade

Torque-Speed Characteristics

STM5745B -CANopen/485

STM5765B-CANopen/485

Product Details

Product Overview

STM57M series CANopen&RS485 communication integrated stepper servo screw motor is a high-performance, low-power stepper servo product independently developed by NiMotion. Based on the excellent closed-loop control system and integrated design concept, this product integrates the stepper motor, encoder, screw rod, driver and digital IO, supports CANopen and RS485 communication bus control, and has the characteristics of compact size and simple wiring.

Product Features

Highly integrated design

Integrates Stepper motors, encoders, screws, drives and digital IO into a single compact unit, so no external drive is required. Compared with conventional separated solutions it saves considerable installation space, needs less wiring, and makes commissioning and maintenance easier.

Advanced Drive Algorithm

Adopts FOC (field-oriented control) and SVPWM for smooth torque output, excellent low-speed performance and lower operating noise and vibration.

High Precision Encoder Feedback

Built-in 2500-wire encoder provides real-time position and speed feedback for more accurate closed-loop control, ensuring smoother operation and more accurate positioning.

Multi-bus communication support

Supports CANopen and RS485 communication, allowing quick connection to mainstream PLCs, motion controllers and host systems, with flexible networking and easy expansion.

Standard CiA 402 Sport Mode

Supports CiA 402 standard motion modes (PP, PV, HM, CSP, CSV, etc.) as well as position mode, velocity mode and torque mode, ensuring compatibility with mainstream fieldbus motion-control architectures and making replacement and commissioning easier.

Wide Voltage Input

Wide input voltage range of 16~52VDC, suitable for various power-supply environments and giving greater flexibility in system integration and retrofitting.

Digital Inputs / Outputs

Built-in digital inputs and outputs (DI/DO) that can be configured for enable, forward/reverse limit switches, home sensor, alarm output, brake control and more, allowing direct interfacing with sensors and PLCs without additional I/O modules and simplifying field wiring.

Integrated High-precision Encoder

An integrated high-resolution absolute encoder provides real-time rotor position and speed feedback for full closed-loop control. Multi-turn absolute versions store the position when power is lost, so no re-homing is required after power-up, giving more accurate positioning and smoother low-speed operation.

Homing and Origin Setting

Multiple homing (origin return) modes with configurable homing direction, speed and origin offset, allowing the mechanical origin to be re-established quickly after power loss or an abnormal stop and ensuring repeat positioning accuracy.

Multiple Control Modes

Supports multiple control modes and standard CiA 402 motion modes (PP, PV, HM, CSP, etc.), switchable via fieldbus, pulse train, analog input or digital I/O to suit different host systems.

Gain Switching

Several gain sets can be stored and switched, with online auto-tuning available. Gains can be changed automatically or manually according to load inertia and operating speed, balancing fast response with smooth low-speed operation for quicker commissioning.

16-segment Position / Velocity & S-curve Planning

A built-in 16-segment position and velocity instruction function combined with S-curve acceleration/deceleration planning enables smooth multi-point positioning with reduced start/stop shock and mechanical vibration, improving cycle time and motion smoothness.

Resonance Suppression

Resonance suppression automatically identifies and sets mechanical resonance frequencies and uses notch filtering to suppress mid- and high-frequency resonance, reducing operating noise and improving positioning stability and path accuracy.

Low-frequency Vibration Suppression

Low-frequency vibration suppression compensates the residual sway of long arms, belts and other flexible loads, giving faster settling and more stable positioning in high-speed point-to-point applications.
