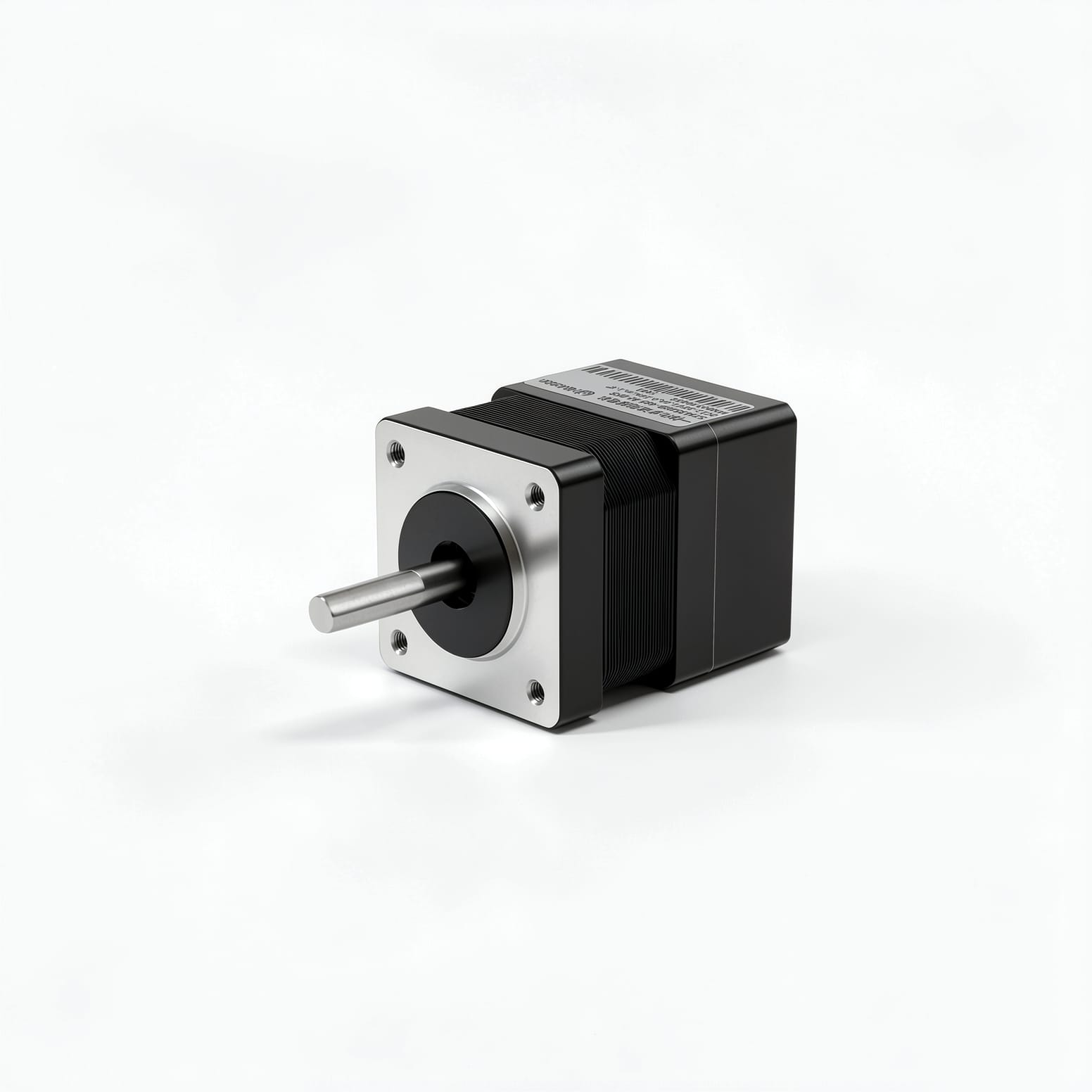

STM35-MC Integrated Stepper Servo Motor

35mm flange integrated stepper servo motor – delivering closed-loop servo control algorithms within a compact footprint. Offers significantly improved positioning accuracy, low heat generation, and excellent speed stability. Ideal for a wide range of compact automation equipment.

Features

CANopen/RS485
Built-in absolute magnetic encoder
Multiple servo functions

CANopen RS485 Pulse 35mm

Models & Specifications

Specs as rows · Models as columns

Specifications	STM3528B-485-MC-0FS	STM3528B-CANopen-MC-0FS	STM3534B-485-MC-0FS	STM3534B-CANopen-MC-0FS	STM3548B-485-MC-0FS	STM3548B-CANopen-MC-0FS	STM3554B-485-MC-0FS	STM3554B-CANopen-MC-0FS
Flange Size	35mm	35mm	35mm	35mm	35mm	35mm	35mm	35mm
Holding Torque	0.16 N·m	0.16 N·m	0.18 N·m	0.18 N·m	0.4 N·m	0.4 N·m	0.45 N·m	0.45 N·m
Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake
Encoder type	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder
Rated Voltage	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC
Voltage Range	12-30VDC	12-30VDC	12-30VDC	12-30VDC	12-30VDC	12-30VDC	12-30VDC	12-30VDC
Inertia	10×10^-7 kg·m²	10×10^-7 kg·m²	14×10^-7 kg·m²	14×10^-7 kg·m²	40×10^-7 kg·m²	40×10^-7 kg·m²	26×10^-7 kg·m²	26×10^-7 kg·m²
Rated Current	1.0 A	1.0 A	1.0 A	1.0 A	1.0 A	1.0 A	1.0 A	1.0 A
Body Length	44 mm	44 mm	50 mm	50 mm	63.7 mm	63.7 mm	70 mm	70 mm
Weight	0.16 kg	0.16 kg	0.21 kg	0.21 kg	0.30 kg	0.30 kg	0.34 kg	0.34 kg

* Scroll horizontally within the table area when the content is wide.

Specifications

Shaft Diameter	Φ5
Number Of Phases	2
Step Angle	1.8°
Encoder	17-bit single-turn absolute magnetic encoder (multi-turn absolute counting with automatic storage upon power failure)
Control Modes	CiA402 Mode,Manufacturer Mode
External Control Interface	DI – Non-isolated NPN Input,DI – Non-isolated PNP Input,DI – Non-isolated Switch Input,DI – Isolated Opto Single-Ended Input,DI – Isolated Opto Differential Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output
CiA402 Mode	PP, VM, PV, PT, HM, IP, CSP, CSV, CST
DI (Digital Input)	Quantity: 3, Logic 1 signal: 5-24V, Logic 0 signal: 0-2V，Supports PWM pulse input, maximum pulse frequency 1.2MHz configurable functions: 1. Enable 2. Positive and negative limits 3. Origin switch 4. Alarm Reset 5. Pause 6 Switching of multi-segment operation instructions
DO (Digital Output)	Quantity: 2, output mode: MOS open-drain output, maximum current 100mA, maximum voltage 30V, Configurable functions: 1. Ordinary DO; 2. The motor stops running; 3. Goal achieved; 4. Alarm output
AI (Analog Input)	-
Operating Temperature	0°C to 40°C
Operating Altitude	<1000m
Fault Alarm	Overvoltage, undervoltage, overheat, locked rotor
Servo Function	Soft limit, gain switching, S-curve planning, vibration suppression, parameter identification, online upgrade

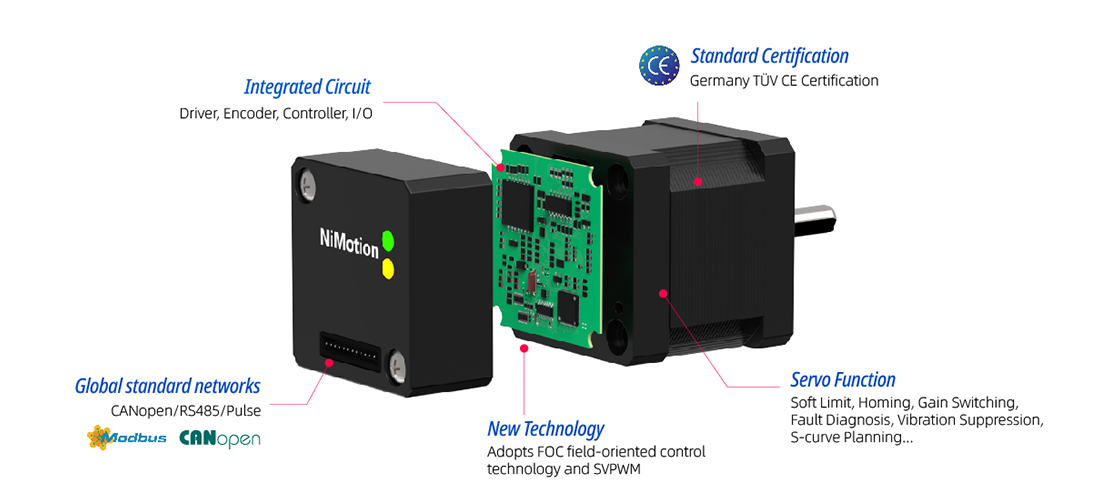

Product Details

Application in Automated Dispensing Machines

The STM35MC series stepper servo motor is used in small automated dispensing equipment to control the left-right movement. This highly integrated motor has a built-in driver, eliminating the need for an external driver, which significantly saves space in compact equipment, making the machine more streamlined and easier to move.
