STM57

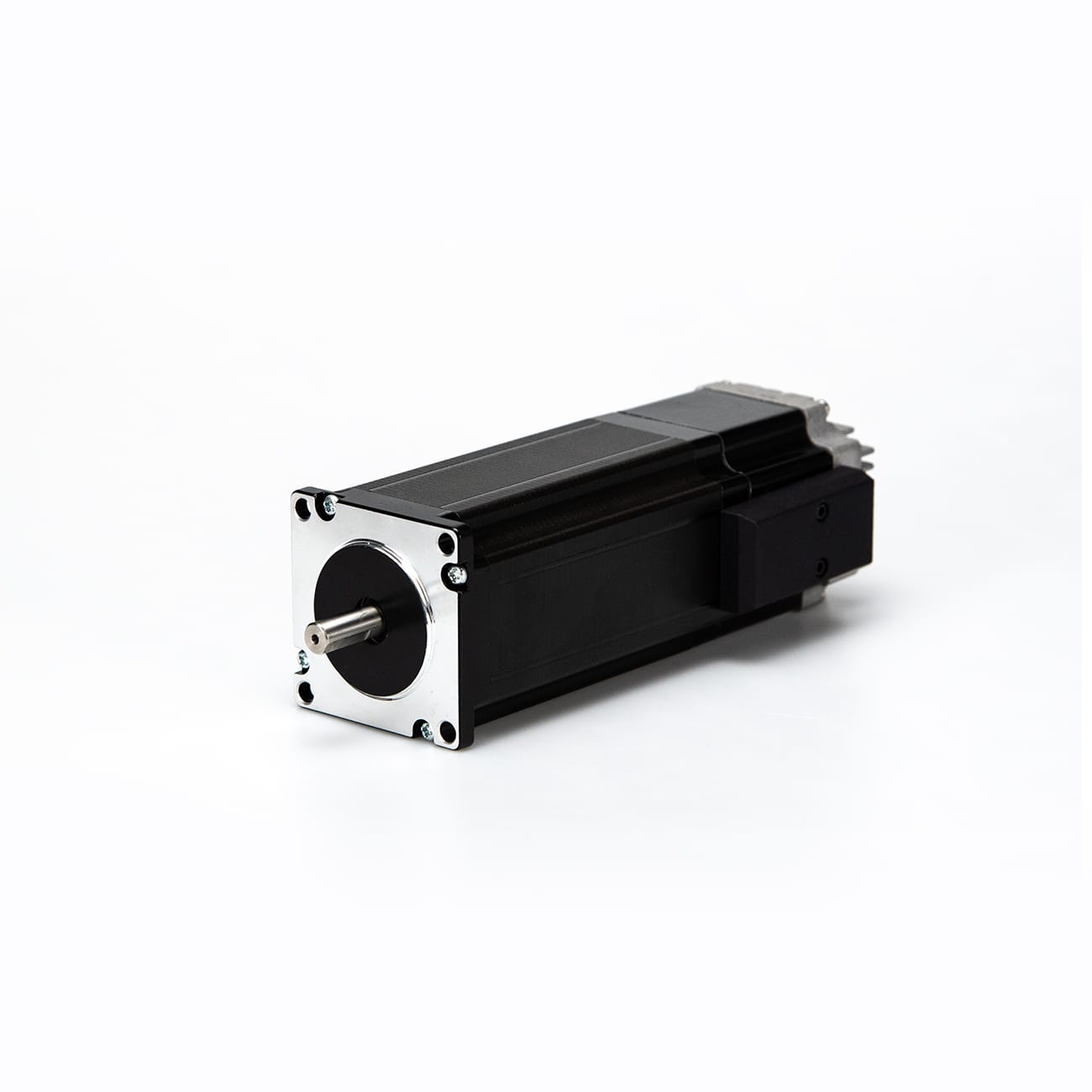

STM57-ME Integrated Stepper Servo Motor

57mm flange integrated stepper servo motor – delivering closed-loop servo control algorithms within a compact footprint. Offers significantly improved positioning accuracy, low heat generation, and excellent speed stability. Ideal for a wide range of compact automation equipment.

Features

CANopen/RS485/Pulse
Supports DI and DO functions
Optional brake models available

CANopen RS485 Pulse 57mm

Models & Specifications

Specs as rows · Models as columns

Specifications	STM5741B-485-ME-0FS	STM5741B-CANopen-ME-0FS	STM5756B-485-ME-0FS	STM5756B-CANopen-ME-0FS	STM5776B-485-ME-0FS	STM5776B-CANopen-ME-0FS	STM57B5B-485-ME-0FS	STM57B5B-CANopen-ME-0FS	STM5741B-485-ME-0FSB	STM5741B-CANopen-ME-0FSB	STM5756B-485-ME-0FSB	STM5756B-CANopen-ME-0FSB	STM5776B-485-ME-0FSB	STM5776B-CANopen-ME-0FSB	STM57B5B-485-ME-0FSB	STM57B5B-CANopen-ME-0FSB
Flange Size	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm	57mm
Holding Torque	0.55 N·m	0.55 N·m	1.2 N·m	1.2 N·m	1.9 N·m	1.9 N·m	3.0 N·m	3.0 N·m	0.55 N·m	0.55 N·m	1.2 N·m	1.2 N·m	1.9 N·m	1.9 N·m	3.0 N·m	3.0 N·m
Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic	Built-in Brake w/ Logic
Encoder type	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder	17-bit single-turn absolute magnetic encoder
Rated Voltage	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC
Voltage Range	16-72VDC	16-72VDC	16-72VDC	16-72VDC	16-72VDC	16-72VDC	16-72VDC	16-72VDC	16-72VDC	16-72VDC	16-72VDC	16-72VDC	16-72VDC	16-72VDC	16-72VDC	16-72VDC
Inertia	1.2×10^-5 kg·m²	1.2×10^-5 kg·m²	3.0×10^-5 kg·m²	3.0×10^-5 kg·m²	4.4×10^-5 kg·m²	4.4×10^-5 kg·m²	8.0×10^-5 kg·m²	8.0×10^-5 kg·m²	1.2×10^-5 kg·m²	1.2×10^-5 kg·m²	3.0×10^-5 kg·m²	3.0×10^-5 kg·m²	4.4×10^-5 kg·m²	4.4×10^-5 kg·m²	8.0×10^-5 kg·m²	8.0×10^-5 kg·m²
Rated Current	2.8 A	2.8 A	3.0 A	3.0 A	4.2 A	4.2 A	6.0 A	6.0 A	2.8 A	2.8 A	3.0 A	3.0 A	4.2 A	4.2 A	6.0 A	6.0 A
Body Length	61 mm	61 mm	76 mm	76 mm	96 mm	96 mm	132 mm	132 mm	96 mm	96 mm	110 mm	110 mm	131 mm	131 mm	167 mm	167 mm
Weight	0.53 kg	0.53 kg	0.75 kg	0.75 kg	1.10 kg	1.10 kg	1.74 kg	1.74 kg	0.87 kg	0.87 kg	1.11 kg	1.11 kg	1.43 kg	1.43 kg	2.11 kg	2.11 kg

* Scroll horizontally within the table area when the content is wide.

Specifications

Shaft Diameter	Φ8
Number Of Phases	2
Step Angle	1.8°
Encoder	17-bit single-turn absolute magnetic encoder (multi-turn absolute counting with automatic storage upon power failure)
Control Modes	CiA402 Mode,Manufacturer Mode
External Control Interface	DI – Non-isolated NPN Input,DI – Non-isolated PNP Input,DI – Non-isolated Switch Input,DI – Isolated Opto Single-Ended Input,DI – Isolated Opto Differential Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output,AI – 0–10V Analog Input,AI – ±10V Analog Input
CiA402 Mode	PP, VM, PV, PT, HM, IP, CSP, CSV, CST
DI (Digital Input)	Quantity: 3 pieces; All adopt high-speed bidirectional optocouplers, with a maximum PWM pulse frequency of 2MHz. They can be connected to an external DC power supply: 5~24V. Configurable functions: used as a switch, used as a pulse input channel
DO (Digital Output)	Quantity: 1; MOS open-drain output, with a maximum load current of 500mA and a maximum voltage of 52V. Configurable functions: 1. Regular DO port; 2. The motor stops running; 3. Goal achievement; 4. Alarm output
AI (Analog Input)	Quantity: 1; Input method: single-ended input; Signal type: voltage signal; Resolution: 12-bit; Voltage: 0~10V; Accuracy: reference error ≤1%; Configurable functions: dead zone, filtering, offset, scaling, direction.
Operating Temperature	0°C to 40°C
Operating Altitude	<1000m
Fault Alarm	Overvoltage, undervoltage, overheat, locked rotor
Servo Function	Soft limit, gain switching, S-curve planning, vibration suppression, parameter identification, online upgrade

Product Details

Applications in Paper Folding Equipment

This integrated servo motor series is specifically designed for the high-frequency start-stop and precise fold-positioning demands of paper-folding machines. Its compact all-in-one construction saves valuable internal equipment space, allowing easy installation in tight locations. Low cogging torque ensures consistent fold-line accuracy, while high dynamic response reliably handles hundreds of start-stop cycles per minute. With support for multiple mainstream communication protocols and compatibility with various control systems, plus a fully sealed enclosure that withstands paper-dust environments, this motor series helps folding equipment achieve long-term stable and efficient operation.

Downloads

Name	Type	Size	Update Date
NiMotion Integrated Motor Selection Guide	Selection Guide	12.8MB	2026-08-25
stm57me-series-canopen-485-User Manual	User Manual	4.2MB	2026-08-17
Communication Manual – pmm60l/blm/stm-CANopen	Communication Manual	3.8MB	2026-08-27
Communication Manual – pmm60l/blm/stm-modbus	Communication Manual	4.0MB	2026-08-27
stm57xxb-xxx-me-0fsb-integrated-brake-stepper-motor	Drawing	273.5KB	2026-07-28
stm57xxb-xxx-me-0fs-integrated-stepper-motor-a.pdf	Drawing	215.3KB	2026-07-28
stm5776b-xxx-me-1fh-integrated-stepper-motor	Drawing	212.3KB	2026-07-28
