STM86

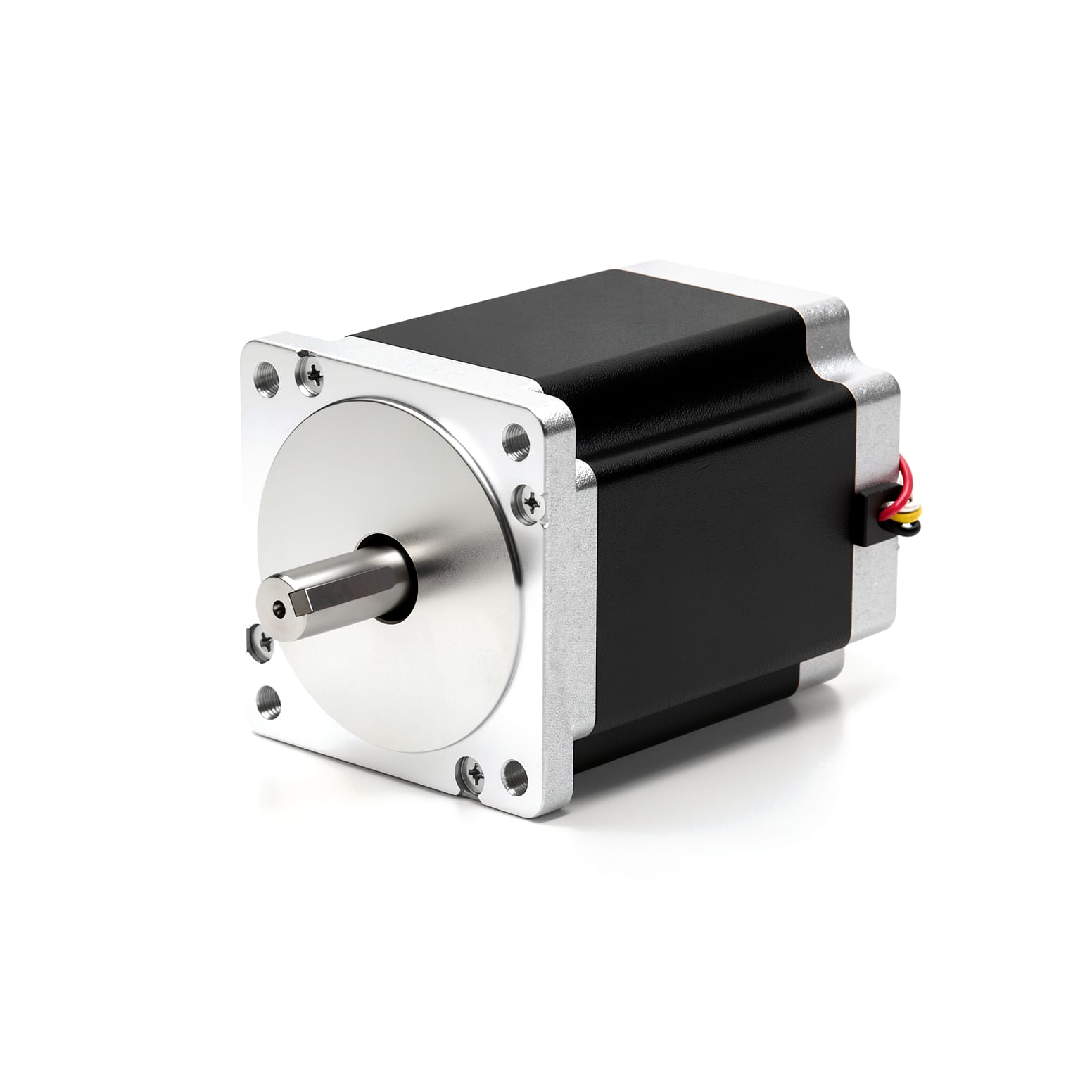

STM86 Series Integrated Stepper Motor

86mm flange integrated stepper motor – seamlessly combines stepper motor, driver, controller, and I/O interfaces into a single unit. Reduces wiring, lowers failure points, ensures stable motion, and is suitable for a wide range of small to medium automation equipment.

Features

CAN/CANopen/RS485
14-bit encoder for closed-loop control
Supports DI and DO control

RS485 CANopen CAN 86mm

Models & Specifications

Specs as rows · Models as columns

Specifications	STM8665-CAN-0HS	STM8665-CANopen-0HS	STM8665-485-0HS	STM8680-CAN-0HS	STM8680-CANopen-0HS	STM8680-485-0HS	STM86B8-CAN-0HS	STM86B8-CANopen-0HS	STM86B8-485-0HS	STM86F6-CAN-0HS	STM86F6-CANopen-0HS	STM86F6-485-0HS	STM8665A-CAN-0HS	STM8665A-CANopen-0HS	STM8665A-485-0HS	STM8665A-CAN-0HSB	STM8665A-CANopen-0HSB	STM8665A-485-0HSB	STM8680A-CAN-0HS	STM8680A-CANopen-0HS	STM8680A-485-0HS	STM8680A-CAN-0HSB	STM8680A-CANopen-0HSB	STM8680A-485-0HSB	STM86B8A-CAN-0HS	STM86B8A-CANopen-0HS	STM86B8A-485-0HS	STM86B8A-CAN-0HSB	STM86B8A-CANopen-0HSB	STM86B8A-485-0HSB	STM86F6A-CAN-0HS	STM86F6A-CANopen-0HS	STM86F6A-485-0HS	STM86F6A-CAN-0HSB	STM86F6A-CANopen-0HSB	STM86F6A-485-0HSB
Flange Size	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm	86mm
Holding Torque	2.6 N·m	2.6 N·m	2.6 N·m	3.7 N·m	3.7 N·m	3.7 N·m	8.0 N·m	8.0 N·m	8.0 N·m	12.0 N·m	12.0 N·m	12.0 N·m	2.6 N·m	2.6 N·m	2.6 N·m	2.6 N·m	2.6 N·m	2.6 N·m	3.7 N·m	3.7 N·m	3.7 N·m	3.7 N·m	3.7 N·m	3.7 N·m	8.0 N·m	8.0 N·m	8.0 N·m	8.0 N·m	8.0 N·m	8.0 N·m	12.0 N·m	12.0 N·m	12.0 N·m	12.0 N·m	12.0 N·m	12.0 N·m
Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	No Brake	Integrated brake (External 24V supply)	Integrated brake (External 24V supply)	Integrated brake (External 24V supply)	No Brake	No Brake	No Brake	Integrated brake (External 24V supply)	Integrated brake (External 24V supply)	Integrated brake (External 24V supply)	No Brake	No Brake	No Brake	Integrated brake (External 24V supply)	Integrated brake (External 24V supply)	Integrated brake (External 24V supply)	No Brake	No Brake	No Brake	Integrated brake (External 24V supply)	Integrated brake (External 24V supply)	Integrated brake (External 24V supply)
Open-Loop/Closed-Loop	Open-loop	Open-loop	Open-loop	Open-loop	Open-loop	Open-loop	Open-loop	Open-loop	Open-loop	Open-loop	Open-loop	Open-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop	Closed-loop
Encoder Type	No Encoder	No Encoder	No Encoder	No Encoder	No Encoder	No Encoder	No Encoder	No Encoder	No Encoder	No Encoder	No Encoder	No Encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder	14-bit single-turn absolute magnetic encoder
Rated Voltage	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC
Voltage Range	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC	10-60VDC
Rated Current	6.0 A	6.0 A	6.0 A	5.5 A	5.5 A	5.5 A	6.0 A	6.0 A	6.0 A	6.2 A	6.2 A	6.2 A	6.0 A	6.0 A	6.0 A	6.0 A	6.0 A	6.0 A	5.5 A	5.5 A	5.5 A	5.5 A	5.5 A	5.5 A	6.0 A	6.0 A	6.0 A	6.0 A	6.0 A	6.0 A	6.2 A	6.2 A	6.2 A	6.2 A	6.2 A	6.2 A
Inertia	0.94×10^-4 kg·m²	0.94×10^-4 kg·m²	0.94×10^-4 kg·m²	1.40×10^-4 kg·m²	1.40×10^-4 kg·m²	1.40×10^-4 kg·m²	2.50×10^-4 kg·m²	2.50×10^-4 kg·m²	2.50×10^-4 kg·m²	3.10×10^-4 kg·m²	3.10×10^-4 kg·m²	3.10×10^-4 kg·m²	0.94×10^-4 kg·m²	0.94×10^-4 kg·m²	0.94×10^-4 kg·m²	0.94×10^-4 kg·m²	0.94×10^-4 kg·m²	0.94×10^-4 kg·m²	1.40×10^-4 kg·m²	1.40×10^-4 kg·m²	1.40×10^-4 kg·m²	1.40×10^-4 kg·m²	1.40×10^-4 kg·m²	1.40×10^-4 kg·m²	2.50×10^-4 kg·m²	2.50×10^-4 kg·m²	2.50×10^-4 kg·m²	2.50×10^-4 kg·m²	2.50×10^-4 kg·m²	2.50×10^-4 kg·m²	3.10×10^-4 kg·m²	3.10×10^-4 kg·m²	3.10×10^-4 kg·m²	3.10×10^-4 kg·m²	3.10×10^-4 kg·m²	3.10×10^-4 kg·m²
Body Length	85 mm	85 mm	85 mm	100 mm	100 mm	100 mm	138 mm	138 mm	138 mm	176 mm	176 mm	176 mm	85 mm	85 mm	85 mm	85 mm	85 mm	85 mm	100 mm	100 mm	100 mm	100 mm	100 mm	100 mm	138 mm	138 mm	138 mm	138 mm	138 mm	138 mm	176 mm	176 mm	176 mm	176 mm	176 mm	176 mm
Weight	1.70 kg	1.70 kg	1.70 kg	2.40 kg	2.40 kg	2.40 kg	3.80 kg	3.80 kg	3.80 kg	5.30 kg	5.30 kg	5.30 kg	1.70 kg	1.70 kg	1.70 kg	1.70 kg	1.70 kg	1.70 kg	2.40 kg	2.40 kg	2.40 kg	2.40 kg	2.40 kg	2.40 kg	3.80 kg	3.80 kg	3.80 kg	3.80 kg	3.80 kg	3.80 kg	5.30 kg	5.30 kg	5.30 kg	5.30 kg	5.30 kg	5.30 kg

* Scroll horizontally within the table area when the content is wide.

Specifications

Shaft Diameter	Φ14
Number Of Phases	2
Step Angle	1.8°
Encoder Introduction	14-bit absolute magnetic encoder for closed-loop models(Open-loop version without encoder)
Subdivision	1,2,4,8,16
Control Modes	CiA402 Mode,Manufacturer Mode,Position Mode,Velocity Mode,Homing Mode
External Control Interface	DI – Non-isolated NPN Input,DI – Non-isolated Switch Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output
CiA402 Mode	PP、VM、PV、VM、IP、HM、CSP、CSV (CANopen communication)
DI (Digital Input)	Quantity 3; Not isolated; High level: 3-3.3V; Low level: 0~0.5V,Channel type: level input, passive contact input
DO (Digital Output)	-
DX (Digital Input / Output)	Quantity: 2; No isolation; Configurable as DI or DO via parameters; DO load maximum current: 8mA; High level: 3–3.3V; Low level: 0–0.5V.
AI (Analog Input)	-
Operating Temperature	0°C to 40°C
Operating Altitude	<1000m
Fault Alarm	Overvoltage, undervoltage, overheat, locked rotor

Downloads

Name	Type	Size	Update Date
NiMotion Integrated Motor Selection Guide	Selection Guide	12.8MB	2026-08-25
stm86-series-canopen-User Manual	User Manual	1.7MB	2026-08-11
stm86-series-can-rs485-User Manual	User Manual	1.7MB	2026-08-11
Communication Manual – Stepper-CANopen	Communication Manual	2.5MB	2026-08-25
stm86xx-a-xxx-0hs-integrated-stepper-motor	Drawing	164.4KB	2026-07-28
stm8665-0hsb-integrated-stepper-motor-brake.PDF	Drawing	483.0KB	2026-07-28

Companion Products

Power CableSTX001 Power Cable

Power cable for NiMotion integrated motors.

View Details

Communication CableSTX002A/B Communication Cable

Communication cable for NiMotion integrated motors.

View Details

Communication ConverterSCM-USBCANI-L

USB to CAN converter with isolation, IP65 protection, and secondary development SDK support.

View Details

Communication ConverterSCM-USB485A-L

USB to RS485 converter with active termination, isolation, IP65 protection, and secondary development SDK support.

View Details

I/O CableSTX004 IO Cable

IO cable for NiMotion integrated motors.

View Details

Communication CableVDCX010P Communication Cable

Communication cable for NiMotion integrated motors.

View Details

Communication CableSDCX001-KZ-B Communication Cable

Communication cable for NiMotion integrated motors.

View Details

Other AccessoriesM8 Terminal Resistor

View Details

FAQ

Yes. The servo controller can detect external load variations and, when a set resistance is encountered, can execute actions such as stopping, returning, or maintaining a certain thrust. This is a key advantage of closed‑loop servo control.

With an incremental encoder driver, the actual position value is not retained after power‑off; a homing routine is required on each startup. A single‑turn absolute encoder retains the position without a battery (but if the shaft rotates more than half a turn after power‑off, the position is lost). A multi‑turn absolute encoder retains the position without a battery (but if the shaft rotates more than 2048 turns after power‑off, the position is lost).
