FAMP40

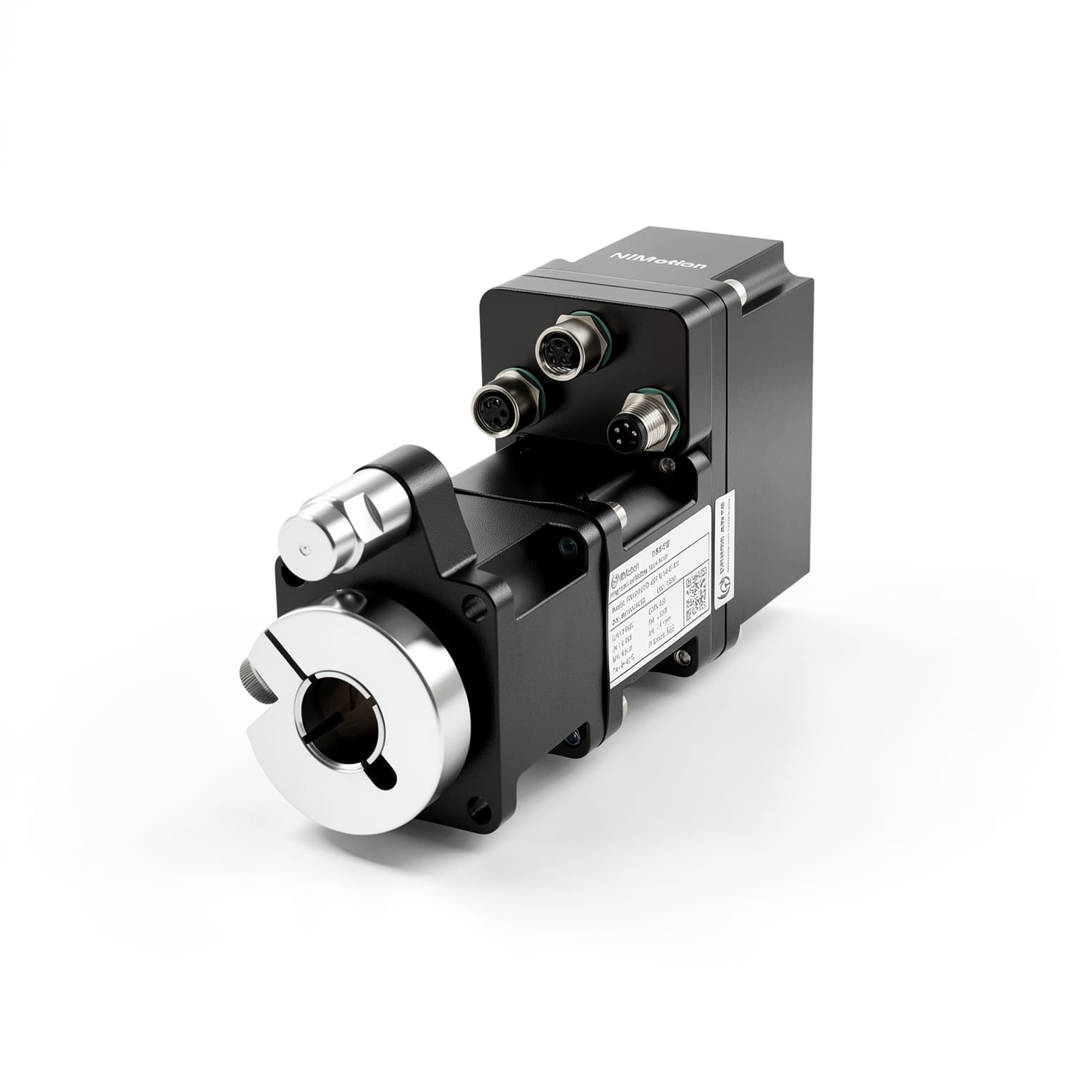

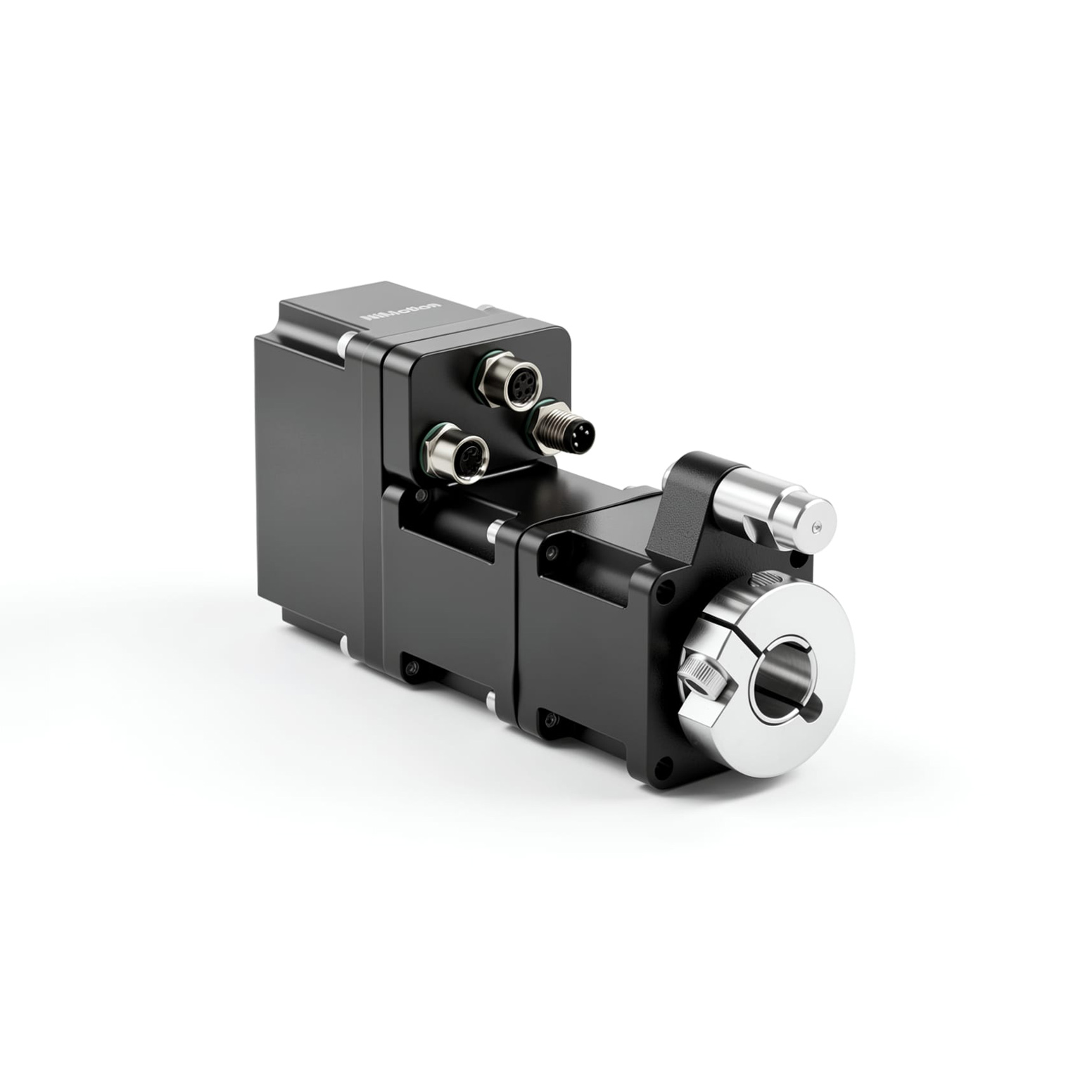

FAMP40 Integrated Positioning Drive

The FAMP Series high-performance integrated positioning actuator integrates driver, controller into a single unit, simplifying wiring and saving space with a compact design. Comes standard with a numeric control screen display for clear real-time status monitoring; supports manual jog operation and bus communication control for flexible on-site commissioning and easy, efficient production line maintenance.

Features

Manual jog operation
Display screen and tactile buttons
Built-in battery for position retention

Models & Specifications

Specs as rows · Models as columns

Specifications	FAMP4005D-CAN	FAMP4005D-485
Flange Size	40mm	40mm
Communication Method	CANopen	RS485
Rated Current	3.43 A	3.43 A
Repeat Positioning Accuracy	±0.5°	±0.5°
Rated Power	50 VDC	50 VDC
Body Length	132 mm	132 mm

* Scroll horizontally within the table area when the content is wide.

Specifications

Shaft Diameter	Φ14
Encoder	17-bit multi-turn absolute magnetic encoder (battery-powered standby)
Rated Torque	≥8 Nm
Working Mode	Intermittent operation S3, 25% load duration, cycle: 10 min
Battery Specification	CR2477, 3V lithium battery, capacity: 1000mAh
Communication Rate	CANopen: 1Mbps (default), 800kbps, 500kbps, 250kbps, 125kbps; Modbus-RTU: 1.5Mbps, 1Mbps, 500kbps, 256kbps, 115.2kbps (default), 57.6kbps, 38.4kbps, 19.2kbps, 9.6kbps
Battery Standby	<4μA
Operating Temperature	0°C to 40°C
Operating Altitude	<1000m
Servo Function	Fault diagnosis, Fault reset, Soft limit, Parameter identification, Gain switching, Resonance/Low-frequency suppression, Oncable upgrade

Product Details

Applications in Production Line Equipment

On modern production lines, the convenience and responsiveness of equipment adjustment directly impact changeover efficiency and overall equipment utilization. The FAMP Positioning Drive is specifically engineered for industrial production-line applications. It not only delivers the full core capabilities of a high-performance servo drive but also integrates on-site manual jogging functionality – allowing operators to perform position calibration, stroke fine-tuning, and homing directly at the machine side, without relying on an HMI or control cabinet. This significantly reduces commissioning and maintenance downtime.
